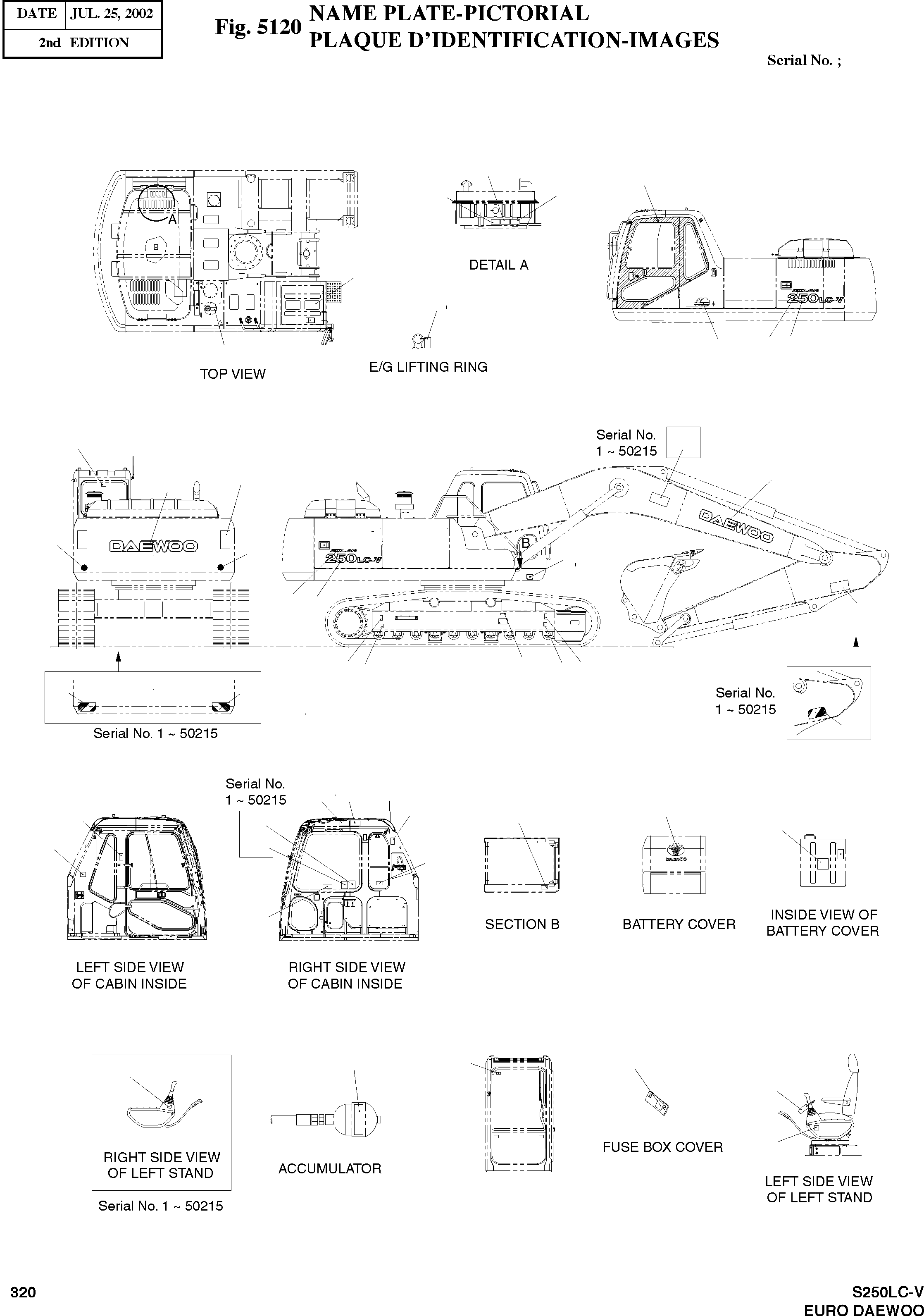

Запчасти Doosan Daewoo NAME PLATE ASSY-PICTORIAL OTHER PARTS

-

9190-1040

NAME PLATE ASS'Y

SC: D

-2шт.

1

2190-3385D2

PLATE;NAME(DAEWOO)

desc: PLAQUE D'IDENTIFICATION

2шт.

2

2190-3385D4

PLATE;NAME(DAEWOO)

desc: PLAQUE D'IDENTIFICATION

1шт.

3

190-00090

KEEP OFF SWING AREA

desc: PLAQUE D'IDENTIFICATION

2шт.

4

190-00134

PLATE;NAME(250LC-V)

desc: PLAQUE D'IDENTIFICATION

2шт.

5

2190-3332

PLATE;NAME(SOLAR)

desc: PLAQUE D'IDENTIFICATION

2шт.

6

190-00137

PLATE;NAME

SERIAL: 1-50215

1шт.

6

190-00137A

PLATE;NAME

SERIAL: 50216

1шт.

7

2122-1002D2

RIVET

desc: RIVET

4шт.

8

190-00092

PLATE;NAME

desc: PLAQUE D'IDENTIFICATION

1шт.

9

2190-3297

PLATE;NAME

desc: PLAQUE D'IDENTIFICATION

1шт.

10

2190-2314D3

TAPE;ANTI-SKID

desc: PLAQUE D'IDENTIFICATION

9шт.

11

2190-3309

PLATE;NAME(LEVER LOCK)

desc: PLAQUE D'IDENTIFICATION

1шт.

12

190-00095

PLATE;NAME(FAN)

desc: PLAQUE D'IDENTIFICATION

1шт.

13

190-00101

PLATE;NAME(HAMMER)

desc: PLAQUE D'IDENTIFICATION

1шт.

14

2190-3244D1

PLATE;NAME(FUSE BOX)

desc: PLAQUE D'IDENTIFICATION

1шт.

15

190-00099

PLATE;NAME(ACCUMULATOR)

desc: PLAQUE D'IDENTIFICATION

1шт.

16

2190-3239

PLATE;NAME(WORLD 21)

desc: PLAQUE D'IDENTIFICATION

1шт.

17

2116-9003

PLATE

desc: PLAQUE

1шт.

18

2190-2524

PLATE;NAME

desc: PLAQUE D'IDENTIFICATION

1шт.

19

190-00096

PLATE;NAME(ELEC. LINE)

desc: PLAQUE D'IDENTIFICATION

1шт.

20

190-00093

PLATE;NAME(SLIDE WINDOW)

desc: PLAQUE D'IDENTIFICATION

1шт.

21

190-00098

PLATE;NAME

desc: PLAQUE D'IDENTIFICATION

1шт.

22

190-00122

PLATE;NAME(TRACK ADJUSTER)

desc: PLAQUE D'IDENTIFICATION

2шт.

23

2190-1892D2

PLATE;NAME(DAEWOO MARK)

desc: PLAQUE D'IDENTIFICATION

1шт.

24

190-00315

PLATE;NAME(CONNECTOR)

desc: PLAQUE D'IDENTIFICATION

1шт.

25

190-00102

PLATE;NAME(CRANE WORK)

desc: PLAQUE D'IDENTIFICATION

1шт.

26

2190-3383

PLATE;NAME

SERIAL: 1-50215

1шт.

27

2190-2476

PLATE;NAME(TIE DOWN)

desc: PLAQUE D'IDENTIFICATION

4шт.

28

2190-2477

PLATE;NAME(LIFTING)

desc: PLAQUE D'IDENTIFICATION

4шт.

29

91XX-1006

PLATE;NAME(SERIAL)

desc: PLAQUE D'IDENTIFICATION

1шт.

30

190-00100

PLATE;NAME(BATTERY)

desc: PLAQUE D'IDENTIFICATION

1шт.

31

190-00097

PLATE;NAME(HOT WATER)

desc: PLAQUE D'IDENTIFICATION

2шт.

32

2190-3528

PLATE;NAME(SWING AREA)

SERIAL: 1-50215

3шт.

33

2190-3530

PLATE;NAME(SWING AREA)

SERIAL: 1-50215

1шт.

33

190-00647

PLATE;NAME(SWING AREA)

SERIAL: 50216

2шт.

34

190-00091

PLATE;NAME

SERIAL: 1-50215

2шт.

34

190-00652

PLATE;NAME

SERIAL: 50216

2шт.

35

190-00094

PLATE;NAME(CAUTION)

desc: PLAQUE D'IDENTIFICATION

1шт.

36

2190-3607D3

PLATE;NAME(SOUND POWER)

SERIAL: 1-50215

1шт.

37

2190-3608D2

PLATE;NAME(SOUND PRESSURE)

SERIAL: 1-50215

1шт.

38

2190-3558D13

PLATE;NAME(E/G EMISSION)

desc: PLAQUE D'IDENTIFICATION

1шт.

39

2124-1622D1

CLIP;BAND

desc: ATTACHE

1шт.

40

190-00730D15

PLATE;NAME

SERIAL: 50216

1шт.

41

190-00557

PLATE;NAME

SERIAL: 50216

1шт.
