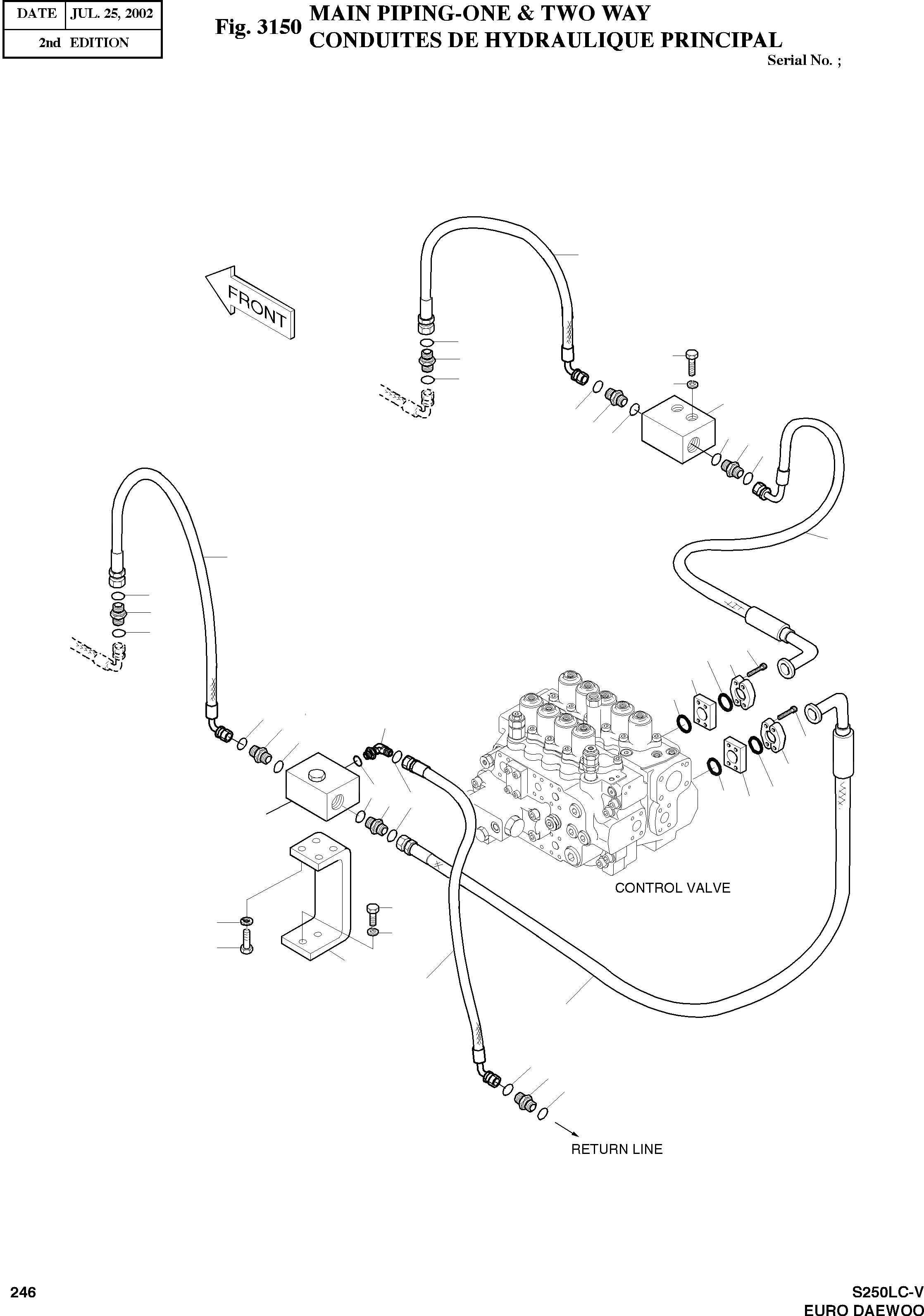

Запчасти Doosan Daewoo MAIN PIPING-ONE & TWO WAY FRONT PARTS

-

400-00342

MAIN PIPING-ONE & TWO WAY

SC: D

-2шт.

1

2420-9633

VALVE;SWITCH

SERIAL: 1-50175

1шт.

1

2420-9633A

VALVE;SWITCH

SERIAL: 50176

1шт.

2

2197-2673

BRACKET

desc: SUPPORT

1шт.

3

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

4шт.

4

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

5

2181-4133D6

ADAPTER

desc: RACCORD ADAPTATEUR

7шт.

6

S8030161

O-RING

desc: JOINT TORIQUE

8шт.

7

S8000291

O-RING

desc: JOINT TORIQUE

8шт.

8

2181-2815D1

ELBOW

desc: ECROU

1шт.

9

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

10

2181-2614

BLOCK;SPACER

desc: BLOC

2шт.

11

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

12

S2213066

BOLT;SOCKET M10X1.5X70

desc: BOULON A 6 PANS CREUX

8шт.

13

2184-1212D51

HOSE PF1-880L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1200D62

HOSE PF1-1800L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1202D78

HOSE PF1-750L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1212D50

HOSE PF1-1850L

desc: TUYAU FLEXIBLE

1шт.

17

423-00044

VALVE;BLOCK

desc: VANNE

1шт.

18

S0558853

BOLT M10X1.5X65

desc: BOULON A 6 PANS

2шт.

19

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

20

2184-1212D52

HOSE PF1-1900L

desc: TUYAU FLEXIBLE

1шт.
