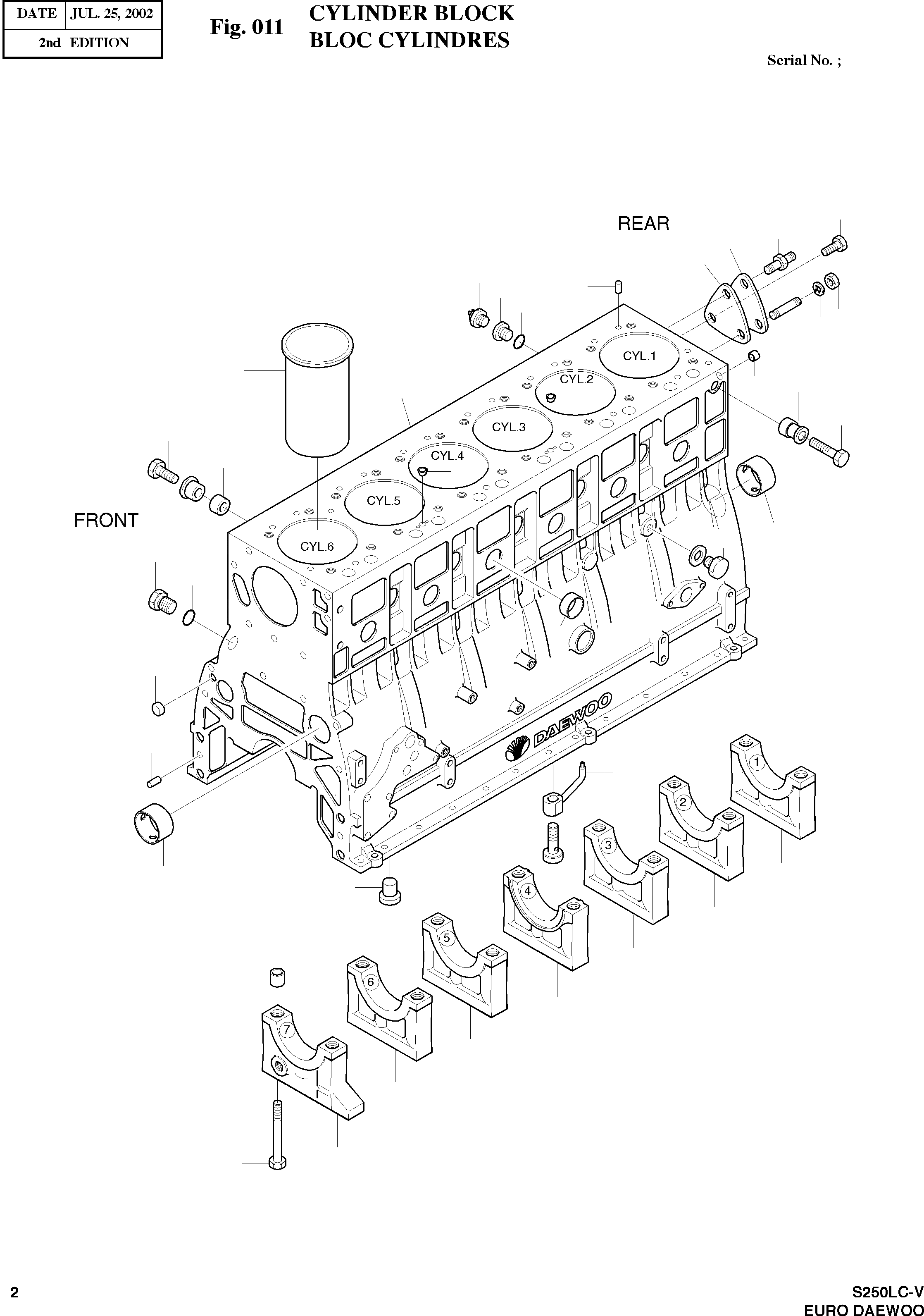

Запчасти Doosan Daewoo CYLINDER BLOCK ENGINE PARTS

-

65.01101-6040E

CYLINDER BLOCK ASS'Y

SERIAL: 010802

1шт.

-

65.01101-6040F

CYLINDER BLOCK ASS'Y

SERIAL: 010803

1шт.

1

65.01101-0040L

BLOCK;CYLINDER

SC: D

1шт.

1

65.01101-0040M

BLOCK;CYLINDER

SC: D

1шт.

2

06.15091-0326

PLUG;CORE HOLE B40D

desc: . BOUCHON DE CHEMISE D'EAU

9шт.

3

65.91606-0041

PLUG;CORE HOLE B20D

desc: . BOUCHON

2шт.

4

65.91001-0002

PLUG

desc: . BOUCHON

2шт.

4A

65.91001-0013

PLUG

desc: . BOUCHON

1шт.

5

65.04410-0017

BUSH;CAMSHAFT

SC: D

4шт.

6

65.01105-1164D

CAP;BEARING NO.7

SC: D

1шт.

7

65.01105-1160

CAP;BEARING NO.3.5

SERIAL: 990427

5шт.

7

65.01105-1160E

CAP;BEARING NO.3.5

SERIAL: 990428

2шт.

8

65.01105-1156C

CAP;BEARING THRUST

SC: D

1шт.

8A

65.01105-1172A

CAP;BEARING NO.1.2.6

SERIAL: 990428

3шт.

9

65.91710-0035

RING LOCATING

desc: . BAGUE DE CENTRAGE

14шт.

10

65.90020-0035B

BOLT;BEARING 12.9T

desc: . VIS DE CHAPEQU DE PALIER(12.9T)

14шт.

11

65.01201-0050

LINER;CYLINDER

desc: CHEMISE DE CYLINDRE

6шт.

12

65.90310-0048

SCREW;PLUG M10X1.5

desc: BOUCHON FILETE

6шт.

13

06.56180-0714

RING;SEAL A10X15

desc: BAGUE D'ETANCHEITE

6шт.

14

65.90310-0091

SCREW;PLUG M12X1.5

desc: BOUCHON FILETE

1шт.

15

06.56190-0704

RING;SEAL A12X18

desc: BAGUE D'ETANCHEITE

1шт.

16

06.22022-0907

PIN;DOWEL 6M6X10

desc: GOUPILLE D'AJUSTAGE

6шт.

17

65.96601A0042

GASKET;END COVER

desc: JOINT DU COUVERCLE AR

1шт.

18

65.91605-0006B

COVER;END

desc: COUVERCLE ARRIERE

1шт.

19

06.01913-3114

BOLT;HEX. M8X22

desc: BOULON A 6 PANS

1шт.

20

06.06225-0706

BOLT;STUD M8X25

SERIAL: 990427

1шт.

20

06.06225-0704

BOLT;STUD M8X20

SERIAL: 990428

1шт.

20-1

65.90201-0075

BOLT;SPACER

desc: BOUCHON

1шт.

21

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE

2шт.

22

06.11063-8214

NUT;HEX. M8

desc: ECROU 6 PANS

1шт.

23

06.22220-1212

PIN;SPIRAL LOCK 8X24

SERIAL: 980828

2шт.

23

06.22022-1013

PIN.DOWEL 8X24

SERIAL: 980829

2шт.

24

06.01013-9517

BOLT;HEX M16X60

desc: BOULON A 6 PANS

1шт.

24A

65.91701-0148

SPACER

desc: BAGUE D'ECARTEMENT

1шт.

25

65.27441-7007

SWITCH;OIL PRESSURE

desc: MANOCONTACT DE PRESSION D'HUILE

1шт.

26

65.98130-0194

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

27

06.56180-0714

RING;SEAL A10X15

desc: BAGUE D'ETANCHEITE

1шт.

28

65.91701-0273

RING;SPACER

desc: CALE D'EPAISSEUR

1шт.

29

65.91701-0088

SPACER

desc: BAGUE D'ECARTEMENT

1шт.

30

06.01283-7524

BOLT;HEX. M16X65

desc: BOULON A 6 PANS

1шт.

31

65.01601-6003

OIL SPRAY NOZZLE ASS'Y

desc: INJECTEUR D'HUILE

6шт.

32

65.05405-6001

RELIEF VALVE ASS'Y

desc: CLAPET DE DECHARGE

6шт.
