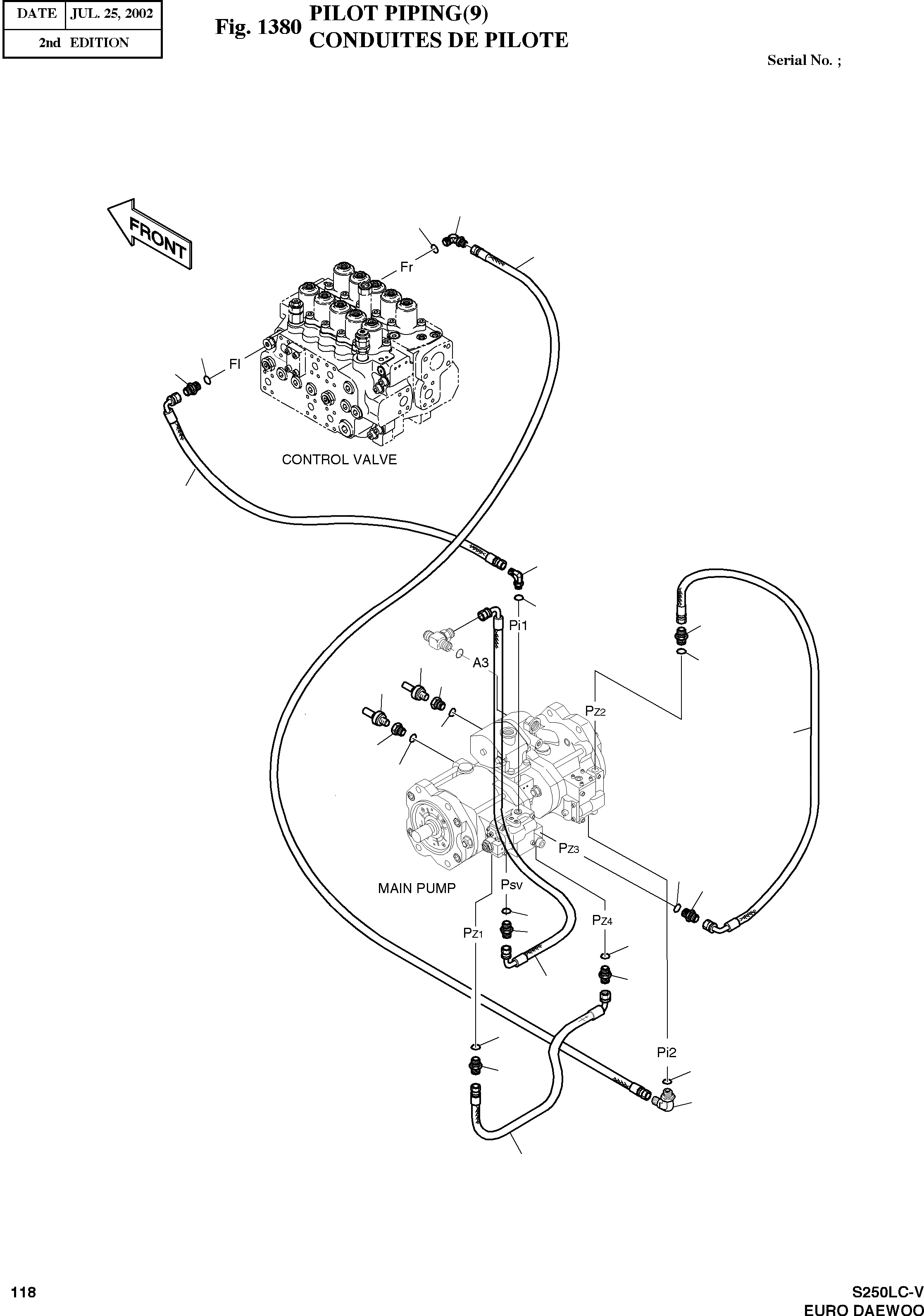

Запчасти Doosan Daewoo PILOT PIPING(9) BODY PARTS

-

400-00109A

PILOT PIPING

SC: D

-2шт.

-

9400-1081A

PILOT PIPING

SC: D

-2шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

11шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

6шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

3шт.

46

2547-9045

SENSOR;PRESSURE

desc: CAPTEUR

2шт.

98

2184-1046D146

HOSE PF1/4-2250L

desc: TUYAU FLEXIBLE

1шт.

103

2184-1045D105

HOSE PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

110

2184-1061D253

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

1шт.

111

2184-1046D153

HOSE PF1/4-350L

desc: TUYAU FLEXIBLE

1шт.

112

2184-1046D81

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

113

2181-2439

REDUCER

SERIAL: 1-50175

2шт.

113

2181-2439A

REDUCER

SERIAL: 50176

2шт.
