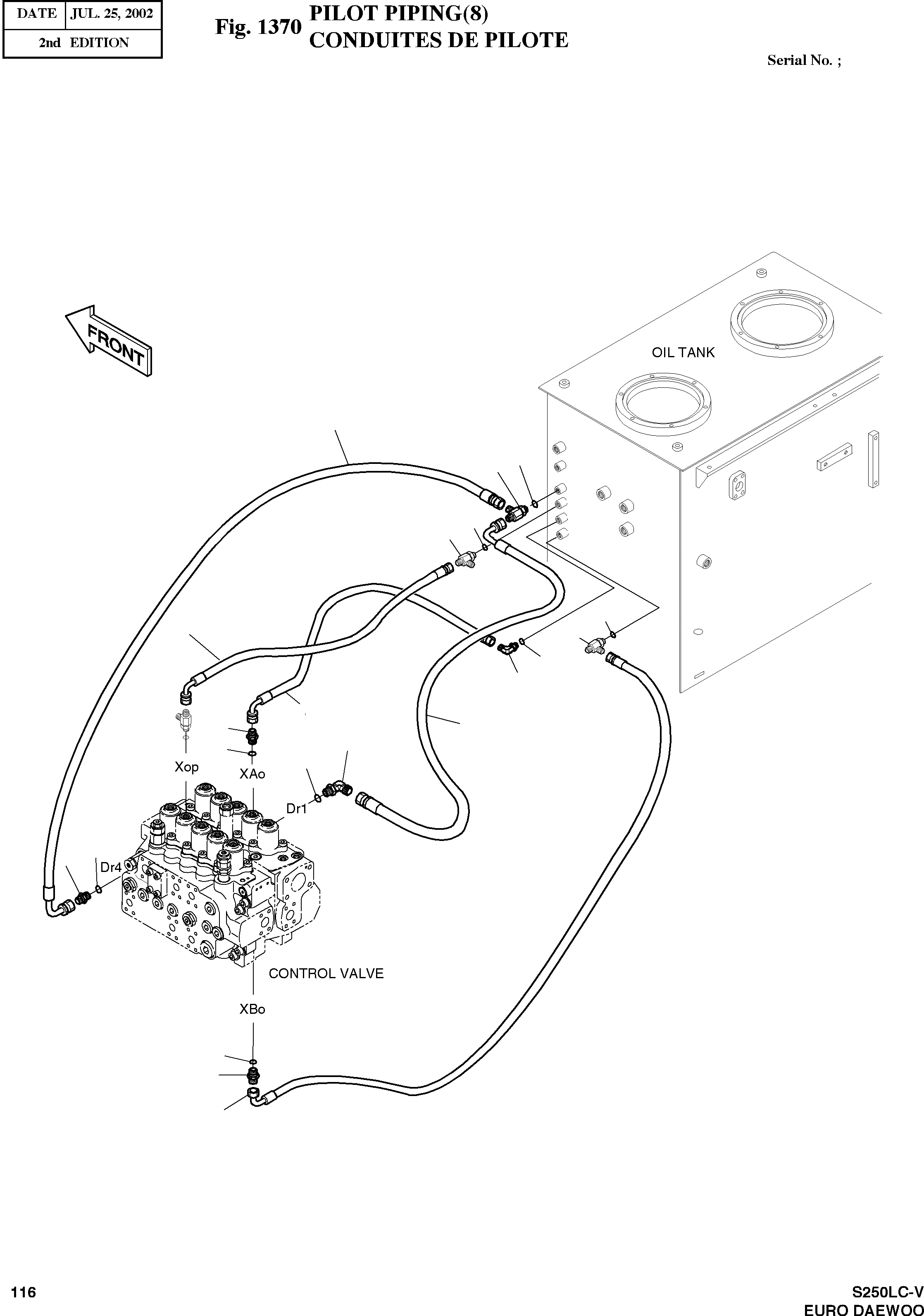

Запчасти Doosan Daewoo PILOT PIPING(8) BODY PARTS

-

400-00109A

PILOT PIPING

SC: D

-2шт.

-

9400-1081A

PILOT PIPING

SC: D

-2шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

3шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

5шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

30

2181-1126D36

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

33

2181-1702D3

ELBOW PFO1/4-PF3/8

desc: COUDE

1шт.

97

2184-1046D94

HOSE PF1/4-780L

desc: TUYAU FLEXIBLE

1шт.

101

2184-1046D81

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

102

2184-1046D115

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

1шт.

104

2184-1036D238

HOSE PF3/8-500L

desc: TUYAU FLEXIBLE

1шт.

129

2181-1951D6

TEE PFO3/8XPF3/8XPF1/4

desc: TE

1шт.

130

2184-1046D107

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

1шт.

137

2181-2375D6

TEE 2XPF1/4-PF3/8

desc: TE

2шт.
