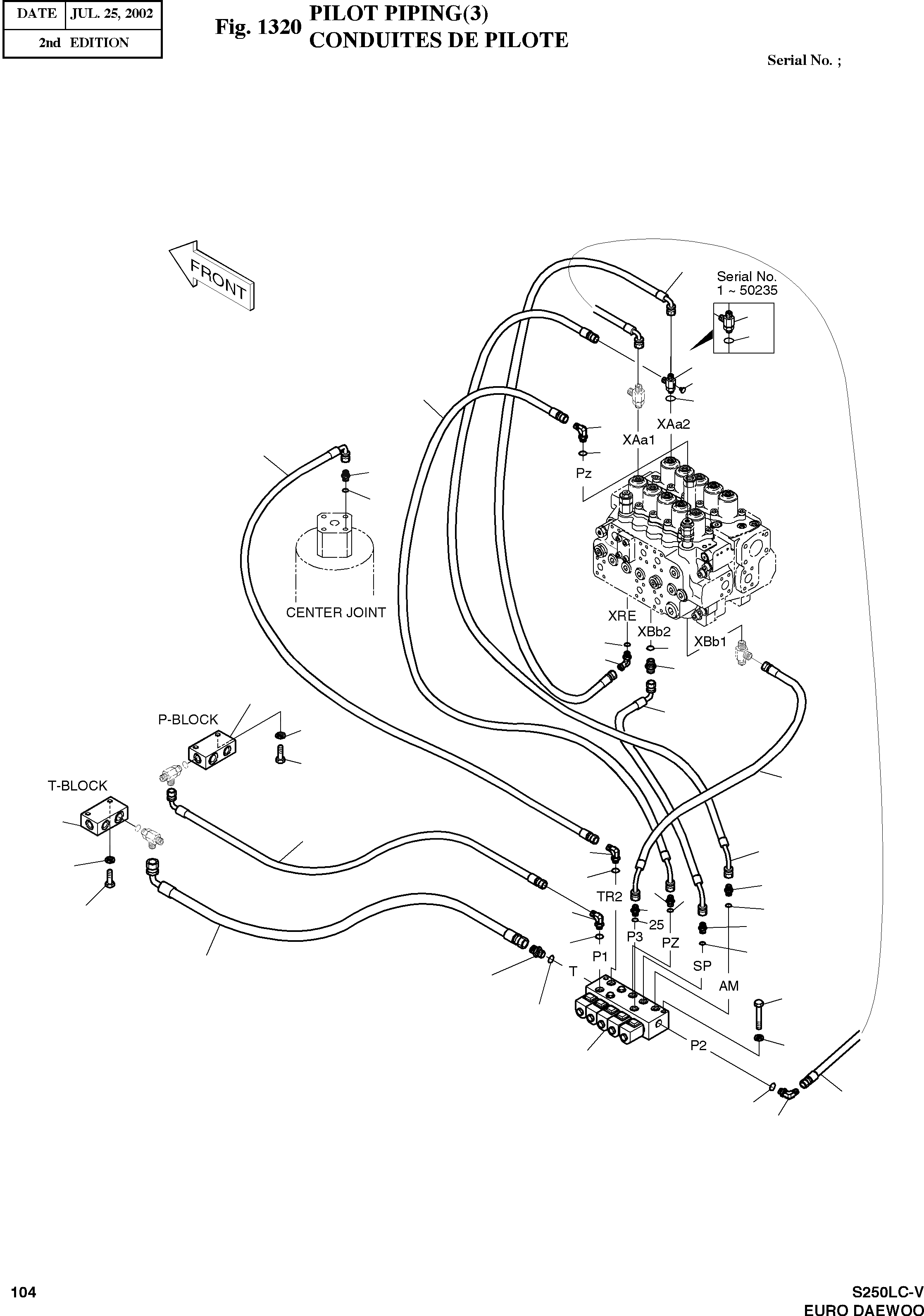

Запчасти Doosan Daewoo PILOT PIPING(3) BODY PARTS

-

400-00109A

PILOT PIPING

SC: D

-2шт.

-

9400-1081A

PILOT PIPING

SC: D

-2шт.

7

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

11

426-00082

VALVE;SOLENOID

desc: VANNE

1шт.

12

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

2шт.

16

2423-1470

BLOCK

desc: BLOC

2шт.

17

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

4шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

7шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

4шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

4шт.

69

2184-1046D172

HOSE PF1/4-1650L

desc: TUYAU FLEXIBLE

1шт.

71

2184-1046D275

HOSE PF3/8-1650L

desc: TUYAU FLEXIBLE

1шт.

73

2184-1060D52

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

74

2184-1062D82

HOSE PF3/8-900L

desc: TUYAU FLEXIBLE

1шт.

76

2184-1046D155

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

82

2181-1126D27

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

88

2184-1060D220

HOSE PF3/8-1100L

desc: TUYAU FLEXIBLE

1шт.

91

2184-1060D220

HOSE PF3/8-1100L

desc: TUYAU FLEXIBLE

1шт.

114

2184-1046D212

HOSE PF3/8-1200L

desc: TUYAU FLEXIBLE

1шт.

133

2181-1951D11

TEE PFO3/8-PF3/8-PF1/4

SERIAL: 1-50235

1шт.

134

2181-1702D55

ELBOW PFO3/8-PF3/8

desc: COUDE

1шт.

135

2184-1046D83

HOSE PF1/4-830L

desc: TUYAU FLEXIBLE

1шт.

139

DS2462002

TEE PF3/8

SERIAL: 50236

1шт.

140

2181-2047A

PLUG

SERIAL: 50236

1шт.
