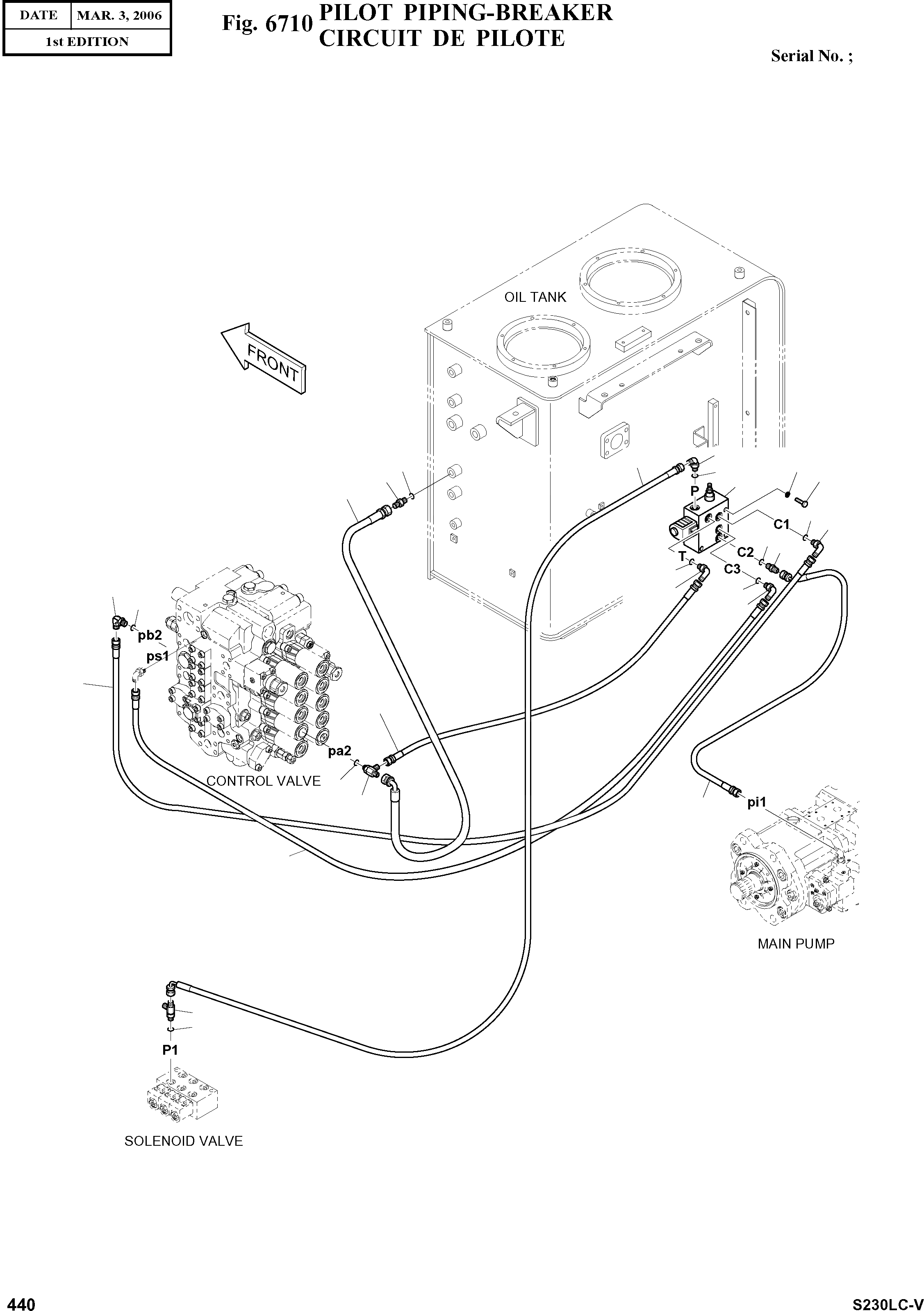

Запчасти Doosan Daewoo PILOT PIPING-BREAKER OPTION PARTS

-

400-00981A

PILOT PIPING;BREAKER

SC: D

-2шт.

1

420-00340B

VALVE;BREAKER PACKAGE

desc: VANNE

1шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6PANS

3шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

4

S8000111

O-RING

desc: JONT TORIQUE

6шт.

5

S8000141

O-RING

desc: JONT TORIQUE

3шт.

6

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

1шт.

7

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

4шт.

8

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

1шт.

9

2181-1951D7

TEE PFO3/8-PF1/4-PF1/4

desc: TE

1шт.

10

2181-1951D1

TEE PFO1/4-PF1/4-PF1/4

desc: TE

1шт.

11

2184-1046D196

HOSE PF1/4-1550L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1046D117

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1045D117

HOSE PF1/4-1220L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1046D185

HOSE PF1/4-950L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1045D209

HOSE PF1/4-1350L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1046D143

HOSE PF1/4-1150L

desc: TUYAU FLEXIBLE

1шт.

17

530-00232

HARNESS;BREAKER(OPTION)

desc: HARNAIS

1шт.

18

2181-1126D37

ADAPTER

desc: ADAPTEUR

1шт.
