Запчасти Doosan Daewoo OPTION VALVE HYDRAULIC PARTS

-

420-00322C

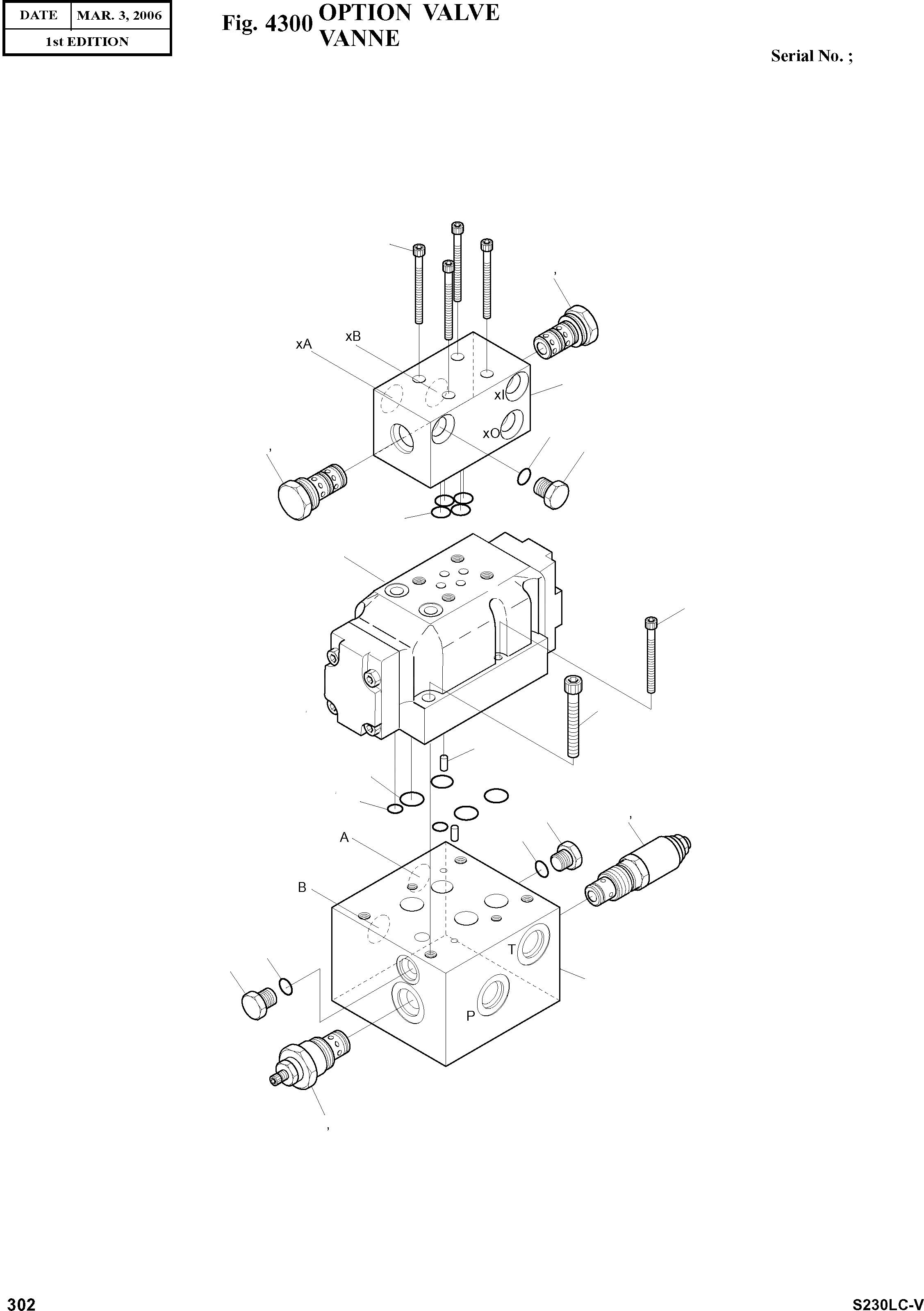

OPTION VALVE

desc: VANNE

1шт.

1

K9000439

BLOCK;MAIN

SC: D

1шт.

2

K9000440

BLOCK;PILOT

SC: D

1шт.

3

K9000441

VALVE;RELIEF

desc: VANNE

1шт.

3A

K9000442

SEAL KIT

desc: . KIT DE JOINT

1шт.

4

K9000443

VALVE;FLOW CONTROL

desc: VANNE

1шт.

4A

K9000444

SEAL KIT

desc: . KIT DE JOINT

1шт.

5

K9000445

VALVE;DIRE. CONT

desc: VANNE

1шт.

6

K9000446

VALVE;SHUTTLE

desc: VANNE

2шт.

6A

K9000447

SEAL KIT

desc: . KIT DE JOINT

1шт.

7

2181-1950D1

PLUG

desc: BOUCHON

3шт.

8

S8000111

O-RING

desc: JOINT TORIQUE

3шт.

9

K9000448

BOLT;SOCKET

desc: BOULON DE PLOT

4шт.

10

S8000091

O-RING

desc: JOINT TORIQUE

4шт.

11

S2212861

BOLT;SOCKET

desc: BOULON DE PLOT

4шт.

12

S2205761

BOLT;SOCKET

desc: BOULON DE PLOT

2шт.

13

2180-1217D54

O-RING

desc: JOINT TORIQUE

4шт.

14

2180-1217D13

O-RING

desc: JOINT TORIQUE

2шт.

15

S5740470

PIN;SPRING

desc: GOUPILLE

2шт.
