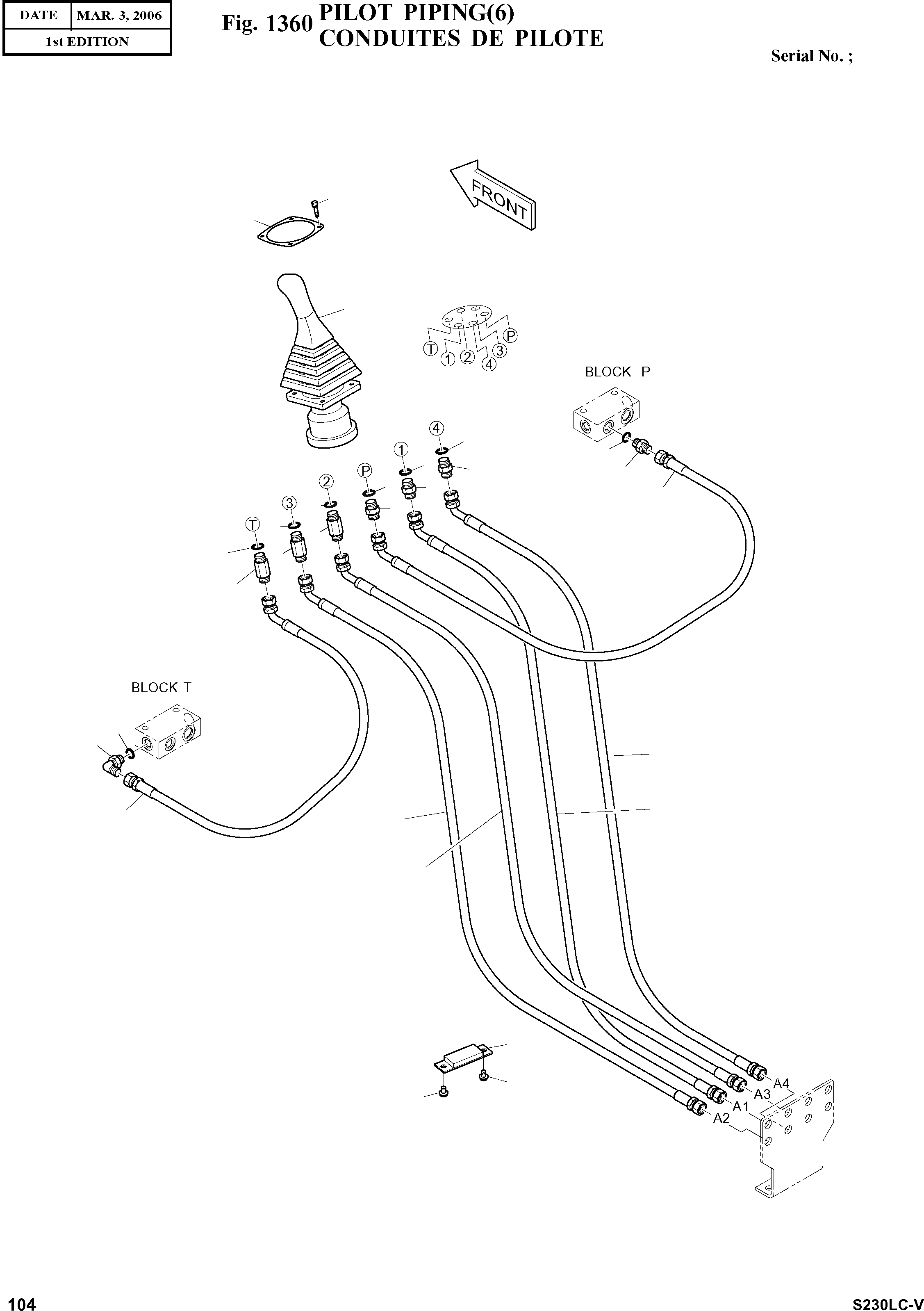

Запчасти Doosan Daewoo PILOT PIPING(6) BODY PARTS

-

400-00853A

PILOT PIPING(6)

SC: D

-2шт.

1

420-00342A

VALVE;REMOCON(L.H)

desc: VANNE

1шт.

3

S2205066

BOLT;SOCKET

desc: BOULON DE PLOT

4шт.

11

S8000111

O-RING

desc: JONT TORIQUE

6шт.

12

S8000141

O-RING

desc: JONT TORIQUE

2шт.

15

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: ADAPTEUR

1шт.

17

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: ADAPTEUR

3шт.

18

2181-1126D120

ADAPTER PFO1/4-PF3/8

desc: ADAPTEUR

3шт.

21

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

1шт.

22

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

23

124-00226A

CLAMP;HOSE

desc: FIXATION DE TUYAU

1шт.

25

2184-1267D9

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

26

2184-1267D10

HOSE PF3/8-2050L

desc: TUYAU FLEXIBLE

1шт.

27

DS2062020

HOSE PF3/8-2350L

desc: TUYAU FLEXIBLE

1шт.

28

DS2062020

HOSE PF3/8-2350L

desc: TUYAU FLEXIBLE

1шт.

29

DS2062020

HOSE PF3/8-2350L

desc: TUYAU FLEXIBLE

1шт.

30

DS2062020

HOSE PF3/8-2350L

desc: TUYAU FLEXIBLE

1шт.

45

120-00276

BOLT;SET M8X1.25X12

desc: BOULON

2шт.
