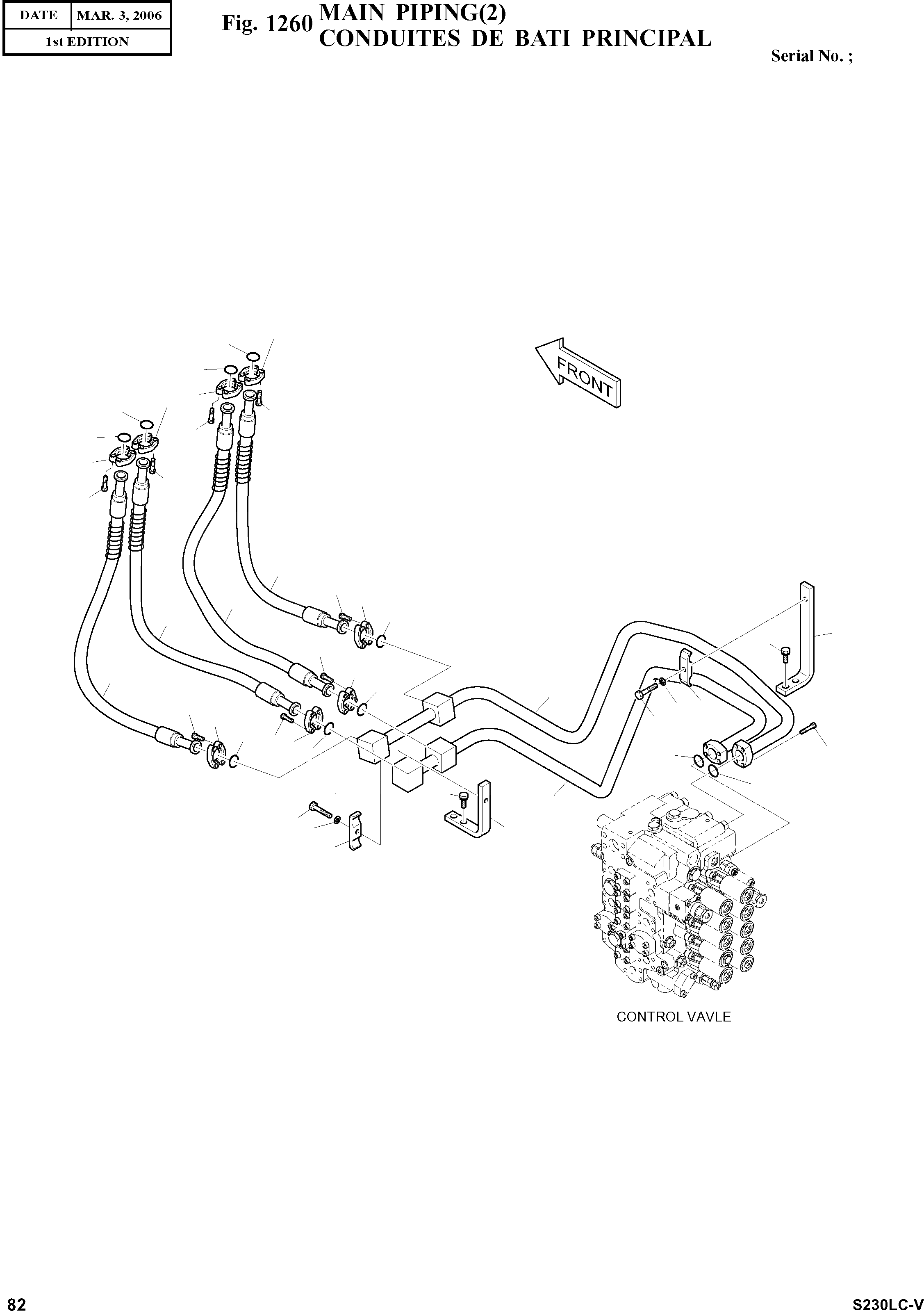

Запчасти Doosan Daewoo MAIN PIPING(2) BODY PARTS

-

400-00854A

MAIN PIPING

SC: D

-2шт.

8

140-01025B

PIPE

desc: TUYAU

1шт.

9

140-01026B

PIPE

desc: TUYAU

1шт.

12

2180-1026D19

O-RING

desc: JONT TORIQUE

2шт.

14

S2212466

BOLT;SOCKET M10X1.5X40

desc: BOULON DE PLOT

8шт.

18

S2212066

BOLT;SOCKET M10X1.5X25

desc: BOULON DE PLOT

16шт.

21

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON DE PLOT

16шт.

23

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

16шт.

24

2180-1026D2

O-RING

desc: JONT TORIQUE

8шт.

35

2184-1081D117

HOSE PF3/4-740L

desc: TUYAU FLEXIBLE

2шт.

38

2120-2196D11

BOLT;SET M12X1.75X35

desc: BOULON

4шт.

39

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

40

2124-1025D5

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

41

S0561053

BOLT M12X1.75X65

desc: BOULON A 6PANS

2шт.

42

195-01799

PLATE

desc: PLAQUE

1шт.

43

DS2038135

HOSE PF3/4-720L

desc: TUYAU FLEXIBLE

2шт.

46

195-01802A

BRACKET

desc: SUPPORT

1шт.
