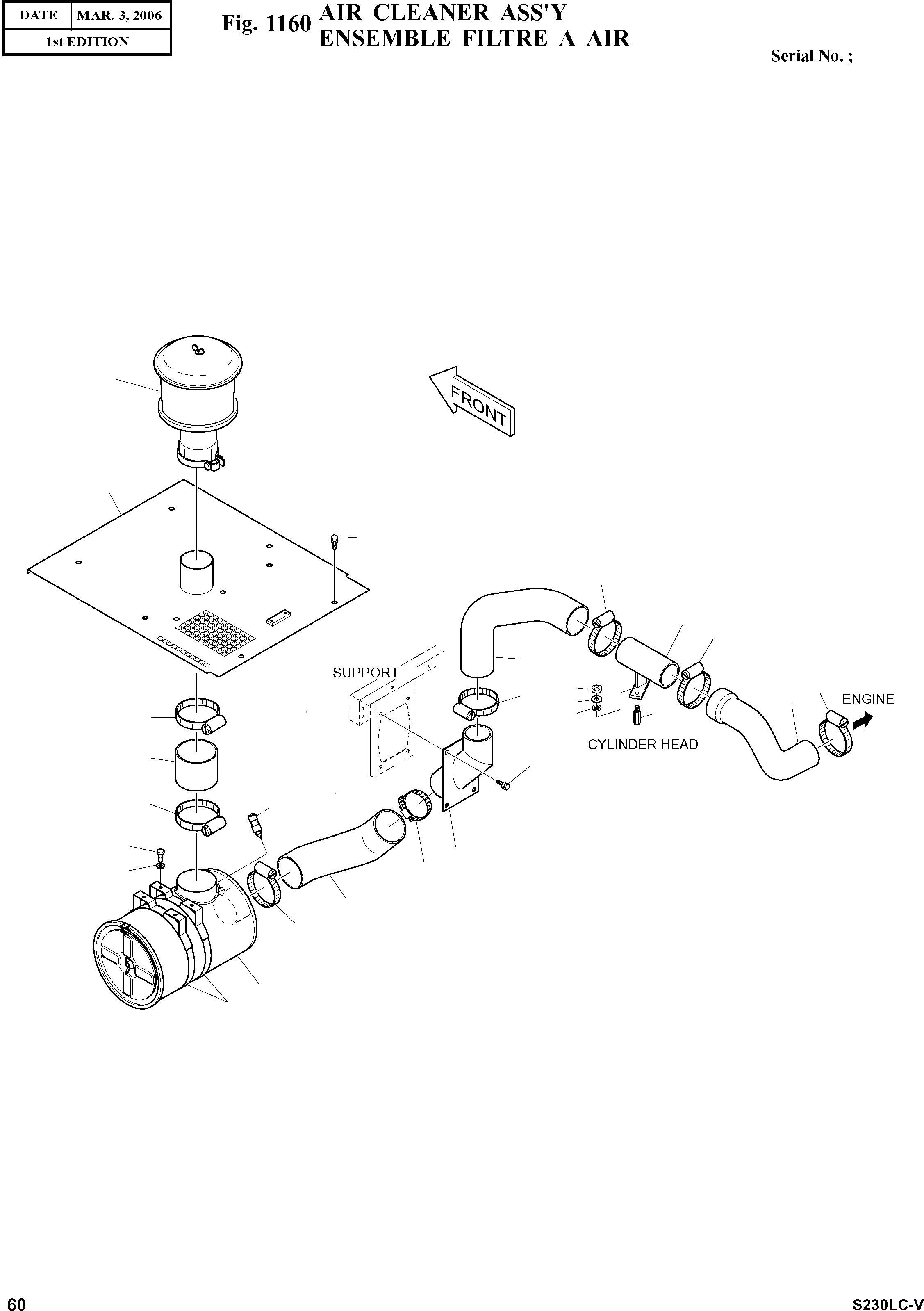

Запчасти Doosan Daewoo AIR CLEANER ASSY BODY PARTS

-

204-00049B

AIR CLEANER ASS'Y

SC: D

-2шт.

1

2204-9039A

CLEANER;AIR

desc: FILTRE A AIR

1шт.

2

2124-1593A

BAND;AIR CLEANER

desc: ATTACHE DE TUYAU

2шт.

3

2120-2196D9

BOLT;SET M12X1.75X25

desc: BOULON

8шт.

4

2185-1724

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

5

193-00682B

PIPE;AIR

desc: TUYAU

1шт.

6

185-00284

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

7

S8510118

CLAMP;HOSE

desc: FIXATION DE TUYAU

7шт.

8

193-00813

PIPE;AIR

desc: TUYAU

1шт.

9

2185-1671A

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

10

S8510092

CLAMP;HOSE

desc: FIXATION DE TUYAU

1шт.

11

621-01893C

COVER

desc: COUVERCLE

1шт.

12

185-00307

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

13

170-00004

INDICATOR

desc: INDICATEUR

1шт.

14

2204-9014A

PRE CLEANER

desc: PRE-FILTRE A AIR

1шт.

15

2120-2165

BOLT

desc: BOULON A 6PANS

2шт.

16

S4012633

NUT M10X1.5

desc: ECROU

2шт.

17

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

19

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

6шт.

20

S0512053

BOLT M10X1.5X25

desc: BOULON A 6PANS

4шт.
