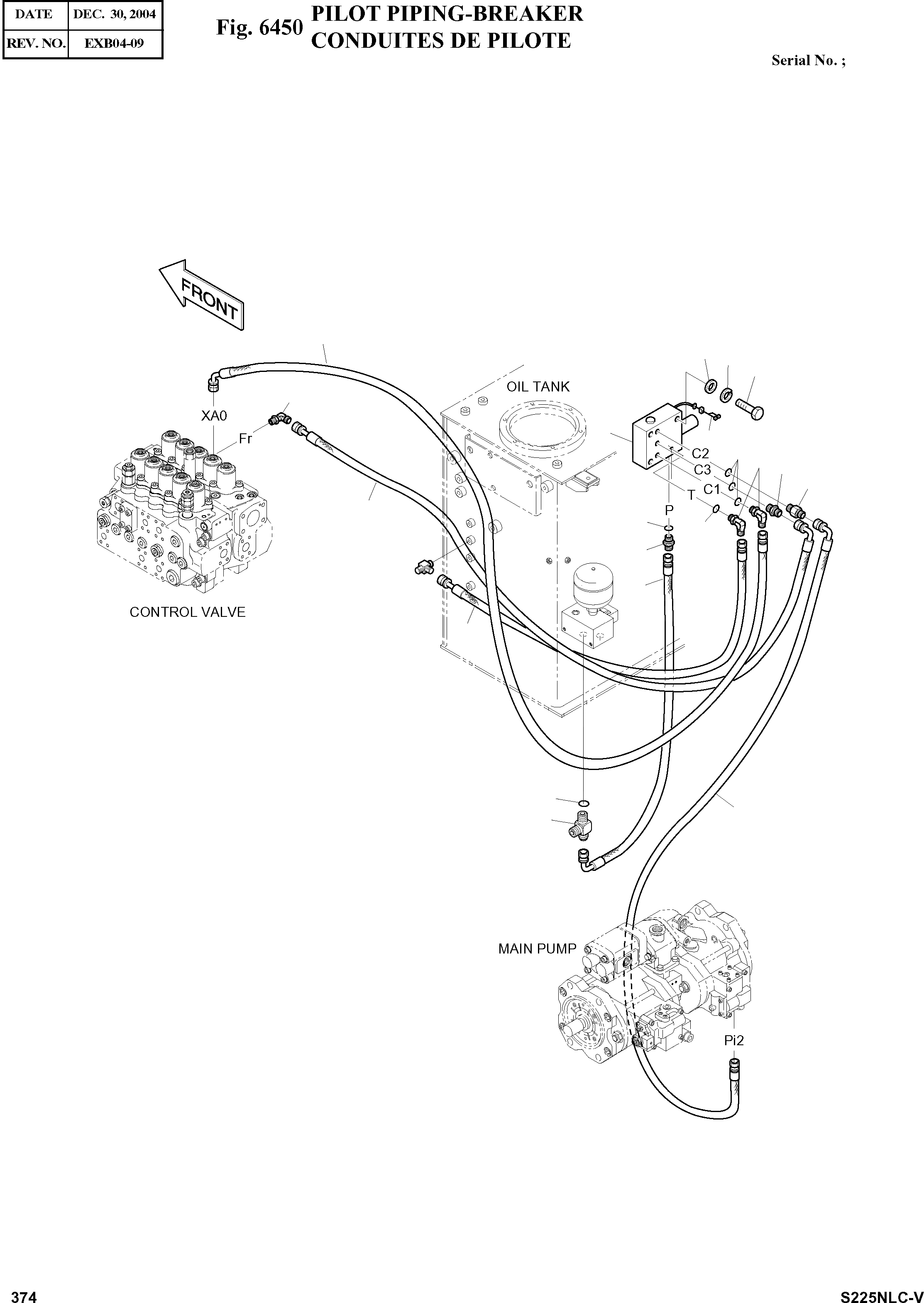

Запчасти Doosan Daewoo PILOT PIPING-BREAKER OPTION PARTS

-

400-01198

PILOT PIPING-ONE WAY

SC: D

-2шт.

1

420-00340

VALVE;BREAKER PACKAGE

SERIAL: 1001-1116

1шт.

1

420-00340A

VALVE;BREAKER PACKAGE

SERIAL: 1117-1133

1шт.

1

420-00340B

VALVE;BREAKER PACKAGE

SERIAL: 1134

1шт.

2

S0558953

BOLT M10X1.5X75

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

4

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

3шт.

5

2181-1126D14

ADAPTER PFO1/4PF1/4

desc: ADAPTATEUR

2шт.

6

S8000111

O-RING

desc: JONT TORIQUE

5шт.

7

2181-1126D34

ADAPTER PFO1/4PF1/4

desc: ADAPTATEUR

1шт.

8

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

3шт.

9

2181-2375D5

TEE PFO1/2-PF1/2-PF1/4

desc: TE

1шт.

10

S8000181

O-RING

desc: JONT TORIQUE

1шт.

11

2184-1046D169

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1046D76

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1046D176

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1046D51

HOSE PF1/4-980L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1046D169

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.

16

530-00232

HARNESS;BREAKER

desc: FAISCEAU

1шт.
