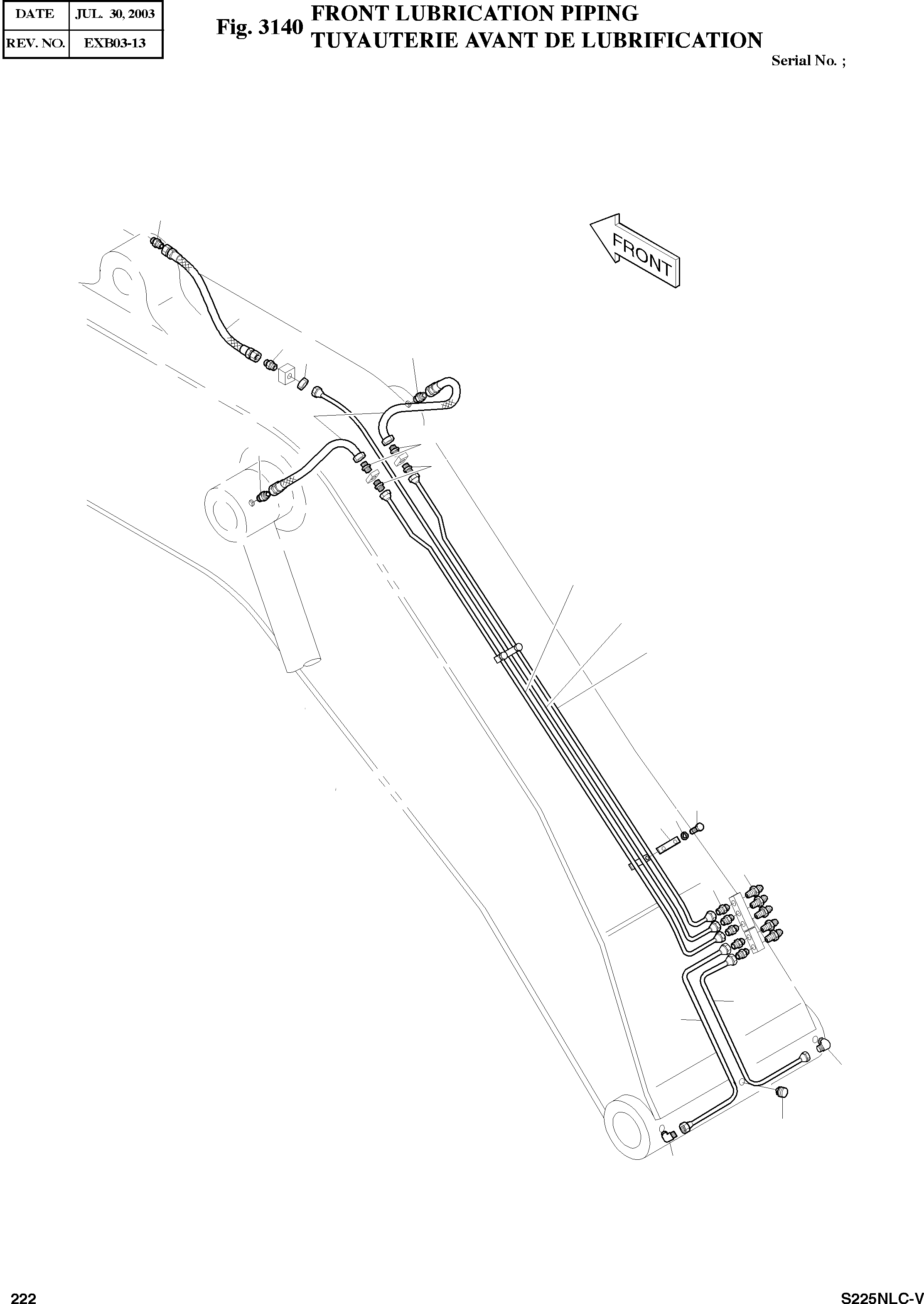

Запчасти Doosan Daewoo FRONT LUBRICATION PIPING FRONT PARTS

-

2400-2071A

LUBRICATION PIPING

SC: D

-2шт.

1

2124-1625

CLAMP;PIPE

desc: ATTACHE DE TUYAU

2шт.

2

2140-1259B

PIPE

desc: TUYAU

1шт.

3

2140-1596A

PIPE

desc: TUYAU

1шт.

4

2140-1261B

PIPE

desc: TUYAU

1шт.

5

2181-1923D12

ADAPTER M14X1.5-PF1/4

desc: ADAPTEUR

3шт.

6

S0511553

BOLT M10X1.5X14

desc: BOULON A 6PANS

4шт.

8

2184-1060D201

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

2шт.

9

S5102603

WASHER'SPRING

desc: RONDELLE ELASTIQUE

4шт.

10

2181-1110D30

ADAPTER;PF1/4-PT1/8

desc: ADAPTEUR

3шт.

11

S6710052

NIPPLE;GREASE

desc: GRAISSEUR

5шт.

12

2181-1925

ELBOW

desc: COUDE

2шт.

13

2184-1045D90

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

14

S4032833

NUT M14X1.5

desc: ECROU

3шт.

15

2181-1184

ADAPTER

desc: ADAPTEUR

5шт.

16

S3524403

SCREW;SET

desc: VIS

1шт.

17

182-00062

PIPE

desc: TUYAU

1шт.

18

182-00063

PIPE

desc: TUYAU

1шт.
