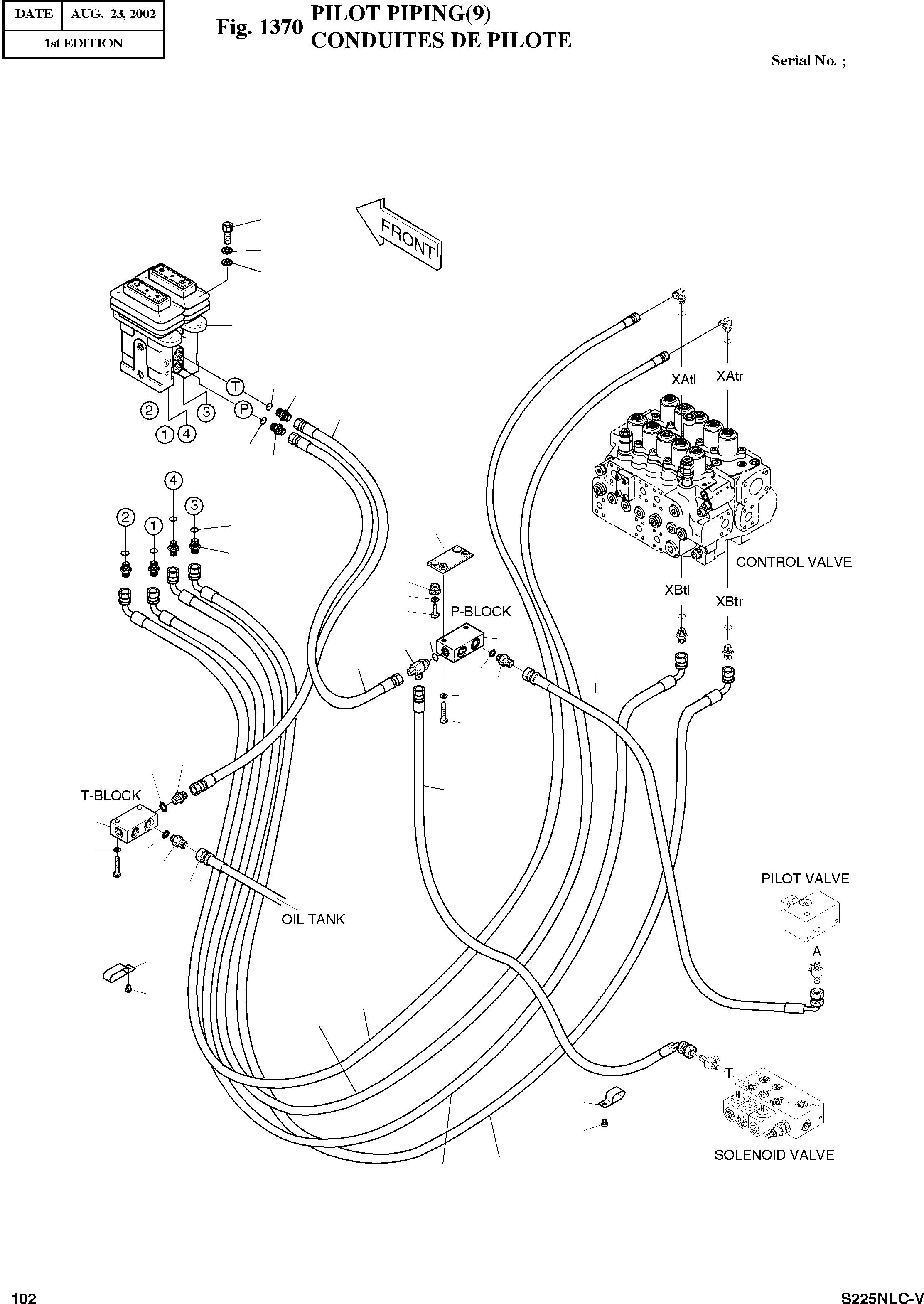

Запчасти Doosan Daewoo PILOT PIPING(9) BODY PARTS

-

400-01181

PILOT PIPING

SC: D

-2шт.

4

420-00030

VALVE;PEDAL

desc: VANNE

1шт.

5

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS

4шт.

6

S5110603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

7

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

8

2423-1470

BLOCK

desc: BLOC

2шт.

9

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

10

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

2шт.

11

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

12

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

13

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

14

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTATEUR

6шт.

16

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: ADAPTATEUR

1шт.

19

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: ADAPTATEUR

1шт.

20

2471-1135

FILTER;ADAPTER

desc: ADAPTATEUR

1шт.

24

124-00208D5

CLIP D32/M8

desc: ATTACHE

1шт.

37

2184-1045D42

HOSE PF1/4-420L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1045D42

HOSE PF1/4-420L

desc: TUYAU FLEXIBLE

1шт.

39

DS2059441

HOSE PF1/4-3300L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1046D218

HOSE PF1/4-3300L

desc: TUYAU FLEXIBLE

1шт.

41

DS2059441

HOSE PF1/4-3300L

desc: TUYAU FLEXIBLE

1шт.

42

DS2055650

HOSE PF1/4-3400L

desc: TUYAU FLEXIBLE

1шт.

43

2184-1046D172

HOSE PF1/4-1350L

desc: TUYAU FLEXIBLE

1шт.

44

2184-1026D273

HOSE PF1/2-3000L

desc: TUYAU FLEXIBLE

1шт.

45

120-00276

BOLT M8X1.25X12

desc: BOULON A 6 PANS

4шт.

46

124-00209D3

CLAMP;HOSE

desc: ATTACHE

1шт.

47

S0558753

BOLT M10X1.5X60

desc: BOULON A 6 PANS

2шт.

48

621-02151

PLATE

desc: PLAQUE

1шт.

49

198-00016

RUBBER

desc: MANCHON

2шт.

50

2114-1058D10

WASHER

desc: RONDELLE

2шт.

51

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

2шт.

52

2181-1951D7

TEE PFO3/8-2PF1/4

desc: TE

1шт.

53

2184-1026D415

HOSE PF1/2-3050L

desc: TUYAU FLEXIBLE

1шт.
