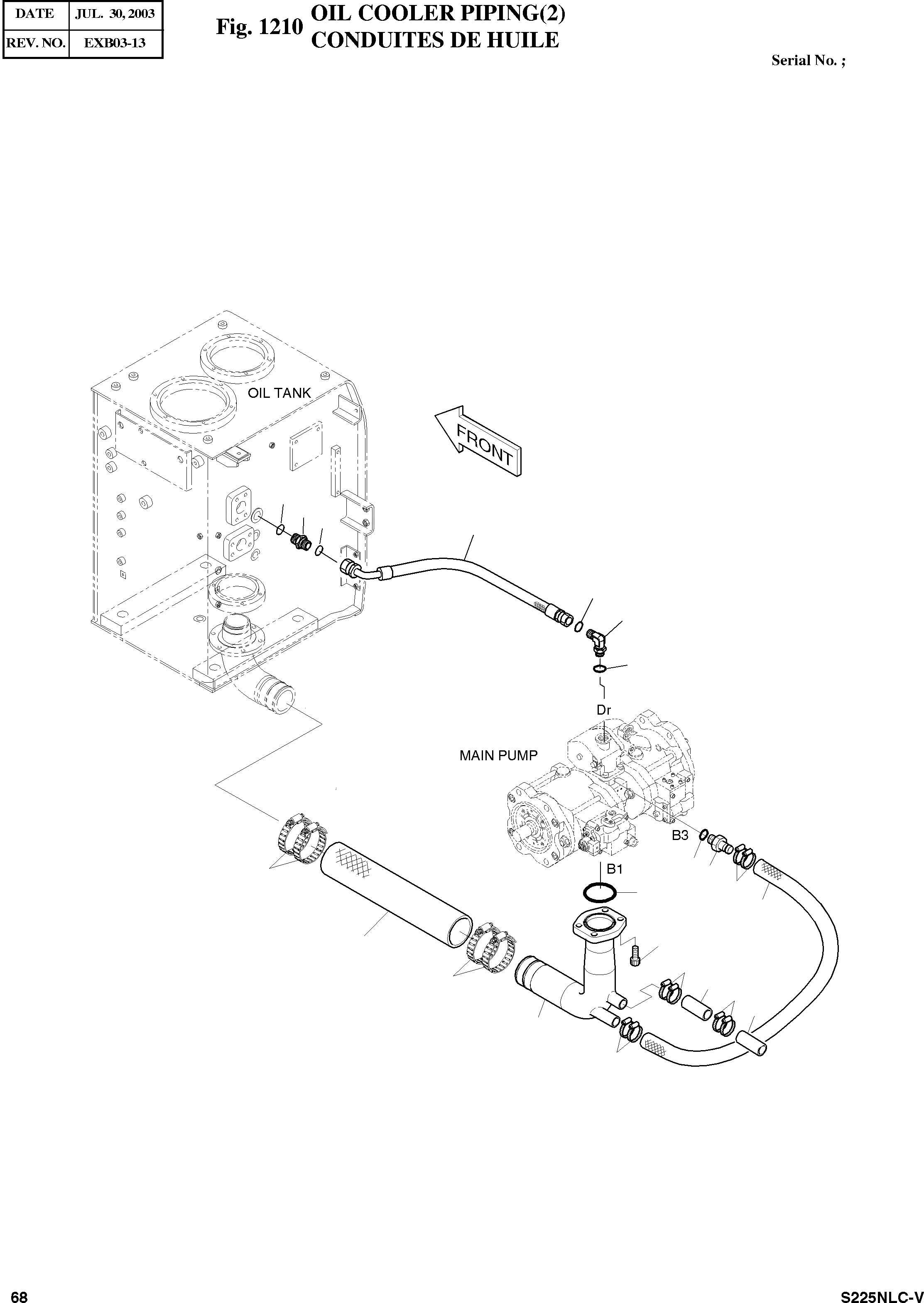

Запчасти Doosan Daewoo OIL COOLER PIPING(2) BODY PARTS

-

400-01188

OIL COOLER PIPING

SC: D

-2шт.

1

140-00719

PIPE;SUCTION

desc: TUYAU

1шт.

9

2185-1002D112

HOSE;SUCTION PF3-500L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1212D10

HOSE 600L

desc: TUYAU FLEXIBLE

1шт.

13

2185-1002D106

HOSE 1000L

desc: TUYAU FLEXIBLE

1шт.

14

S8030121

O-RING

desc: JOINT TORIQUE

2шт.

15

S8000241

O-RING

desc: JOINT TORIQUE

2шт.

17

2180-1026D31

O-RING

desc: JOINT TORIQUE

1шт.

21

2181-2693A

ADAPTER PFO3/4-PF1

desc: ADAPTATEUR

1шт.

23

2181-2294D2

ELBOW PFO3/4-UNF13/16

desc: COUDE

1шт.

24

2181-2627D1

ADAPTER

desc: ADAPTATEUR

1шт.

33

S2215366

BOLT;SOCKET M12X1.75X35

desc: BOULON A 6 PANS

4шт.

42

S8470112

CLAMP;HOSE

desc: COLLIER

4шт.

44

S8470050

CLAMP;HOSE

desc: COLLIER

8шт.

48

2182-1815

PIPE

desc: TUYAU

1шт.

52

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

53

2185-1002D87

HOSE 125L

desc: TUYAU FLEXIBLE

1шт.
