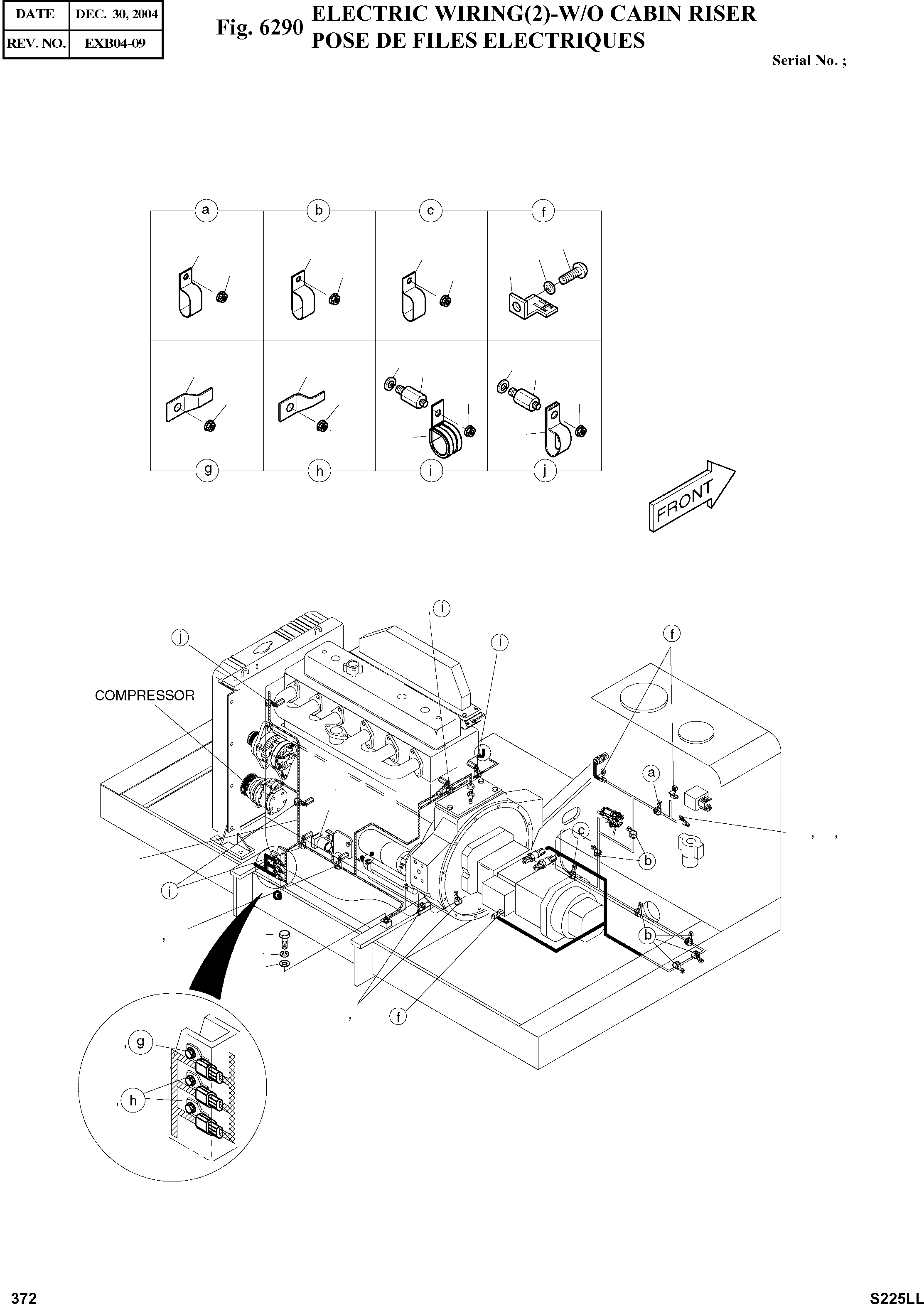

Запчасти Doosan Daewoo ELECTRIC WIRING(2)-W/O CABIN RISER OPTION PARTS

-

K1002022

ELECTRIC WIRING(2)-W/O CABIN RISER

SC: D

-2шт.

3

530-00327

HARNESS;ENGINE

desc: FAISCEAU

1шт.

3A

2548-1027

DIODE ASS'Y 3A

desc: . DIODE

2шт.

15

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

1шт.

16

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

1шт.

17

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

1шт.

18

2195-3500

BRACKET;HOUSING

desc: SUPPORT

3шт.

19

S3450953

SCREW M6X1.0X12

desc: VIS

3шт.

20

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

21

2197-1660

BRACKET;HOUSING W15

desc: SUPPORT

1шт.

22

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

5шт.

23

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

1шт.

24

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

25

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

5шт.

26

2120-2235

BOLT;STUD M10X1.25X15/M8

desc: BOULON A 6 PANS

5шт.

29

124-00208D3

CLIP D20/M8

desc: ATTACHE

7шт.

30

2124-1509D1

CLIP D12/M8

desc: ATTACHE

2шт.

31

2124-1509D2

CLIP

desc: ATTACHE

6шт.

32

2124-1509D3

CLIP

desc: ATTACHE

1шт.

35

2121-1305

NUT M8X1.25

desc: ECROU

19шт.
