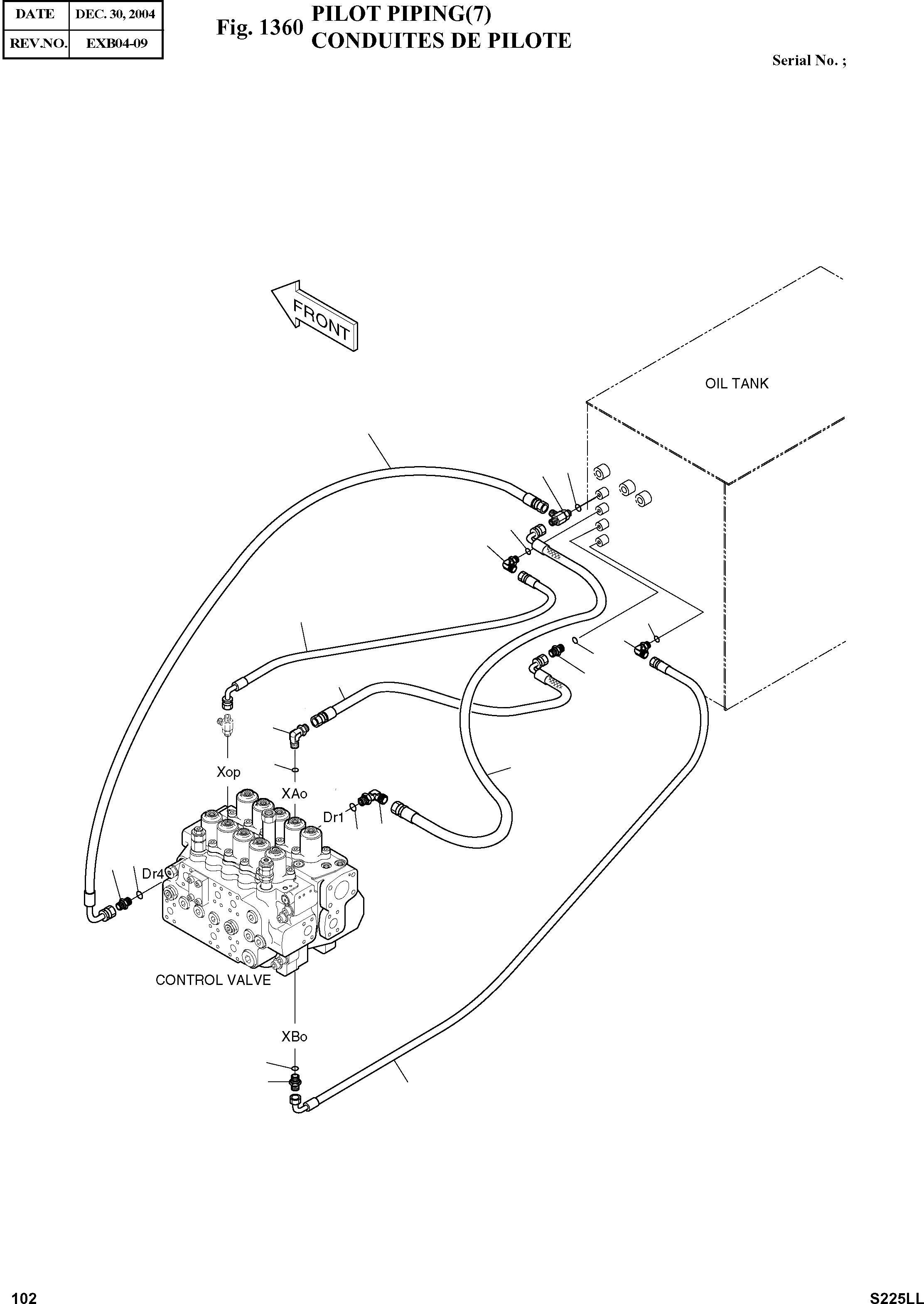

Запчасти Doosan Daewoo PILOT PIPING(7) BODY PARTS

-

400-01448

PILOT PIPING

SC: D

-2шт.

17

2181-1951D6

TEE PF(O)3/8XPF3/8XPF1/4

desc: TE

1шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

3шт.

26

S8000111

O-RING P11

desc: JOINT TORIQUE

5шт.

27

2181-1126D14

ADAPTER PF(O)1/4XPF1/4

desc: RACCORD ADAPTATEUR

2шт.

30

2181-1126D36

ADAPTER PF(O)3/8XPF1/4

desc: RACCORD

1шт.

32

2181-1702D4

ELBOW PF(O)1/4XPF1/4

desc: COUDE

2шт.

33

2181-1702D3

ELBOW PF(O)1/4XPF3/8

desc: COUDE

1шт.

36

2181-1702D10

ELBOW

desc: COUDE

1шт.

52

2184-1046D94

HOSE PF1/4-780L

desc: TUYAU FLEXIBLE

1шт.

56

2184-1046D81

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

57

2184-1046D115

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

1шт.

59

2184-1036D238

HOSE PF3/8-500L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1046D147

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.
