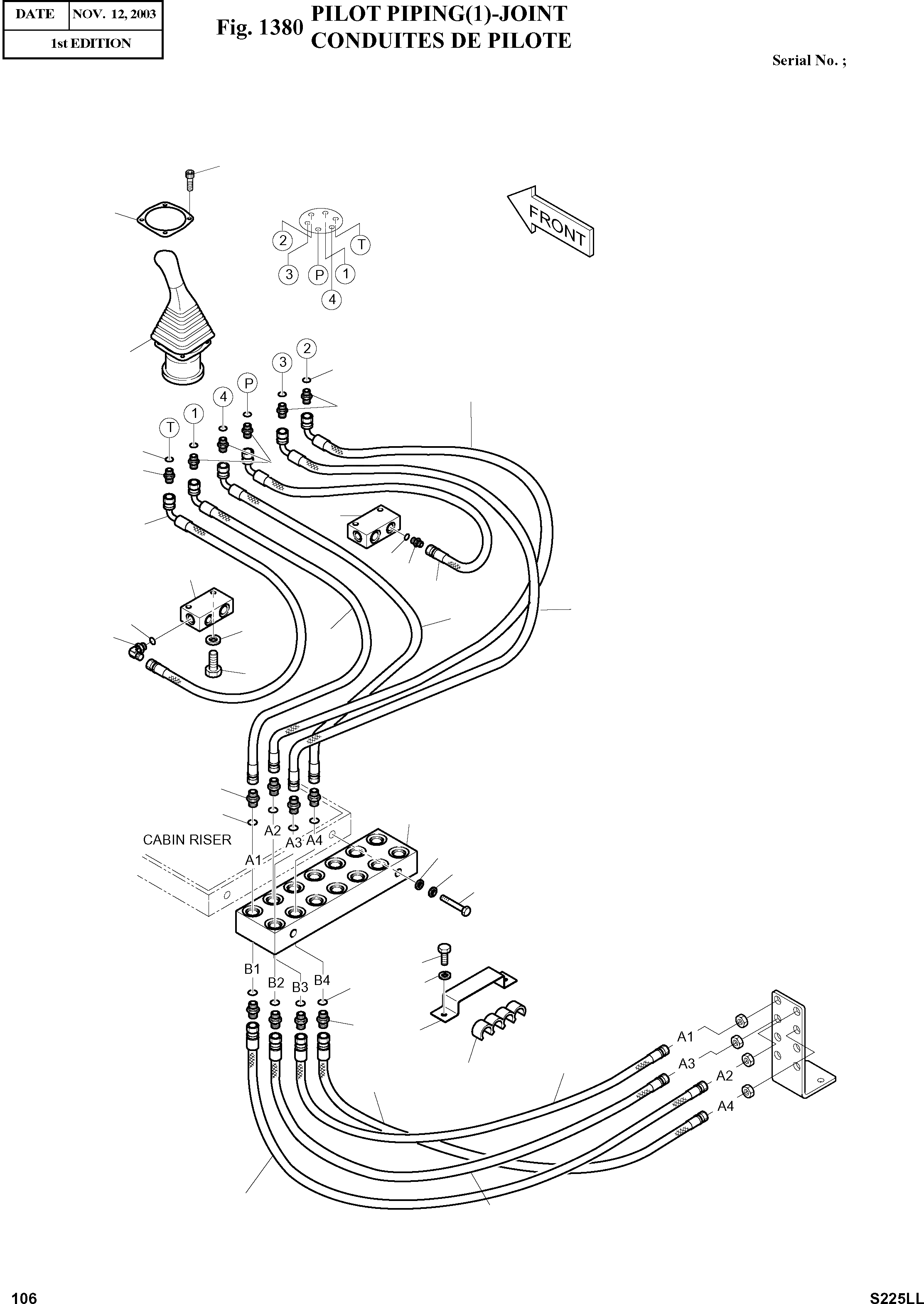

Запчасти Doosan Daewoo PILOT PIPING(1)-JOINT BODY PARTS

-

400-01447

PILOT PIPING;JOINT

SC: D

-2шт.

1

420-00014A

REMOTE CONTROL V/V(LH)

desc: VANNE

1шт.

3

S2205066

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

4

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

5

2423-1470

BLOCK

desc: BLOC

2шт.

6

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

7

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

4шт.

11

S8000111

O-RING P11

desc: JOINT TORIQUE

6шт.

12

S8000141

O-RING P14

desc: JOINT TORIQUE

10шт.

14

2181-1126D89

ADAPTER PFO1/4XPF3/8

desc: RACCORD

3шт.

15

2181-1126D120

ADAPTER PFO1/4XPF3/8

desc: RACCORD ADAPTATEUR

3шт.

18

2181-1702D5

ELBOW PFO3/8XPF3/8

desc: COUDE EN S

1шт.

19

2181-1126D7

ADAPTER PFO3/8XPF3/8

desc: RACCORD

9шт.

26

2423-1538

BLOCK;JOINT

desc: BLOC

1шт.

27

S0562063

BOLT M12X1.75X115

desc: BOULON A 6 PANS

2шт.

28

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

29

S5010713

WASHER M12

desc: RONDELLE

2шт.

30

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

2шт.

31

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

2шт.

32

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

4шт.

33

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

40

2184-1267D12

HOSE PF3/8-2650L

desc: TUYAU FLEXIBLE

1шт.

41

2184-1267D12

HOSE PF3/8-2650L

desc: TUYAU FLEXIBLE

1шт.

42

2184-1267D16

HOSE PF3/8-2750L

desc: TUYAU FLEXIBLE

1шт.

43

2184-1267D12

HOSE PF3/8-2650L

desc: TUYAU FLEXIBLE

1шт.

44

2184-1267D9

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

45

2184-1267D10

HOSE PF3/8-2050L

desc: TUYAU FLEXIBLE

1шт.

60

2184-1045D229

HOSE PF3/8-3600L

desc: TUYAU FLEXIBLE

1шт.

61

2184-1045D229

HOSE PF3/8-3600L

desc: TUYAU FLEXIBLE

1шт.

62

2184-1045D229

HOSE PF3/8-3600L

desc: TUYAU FLEXIBLE

1шт.

63

2184-1045D229

HOSE PF3/8-3600L

desc: TUYAU FLEXIBLE

1шт.
