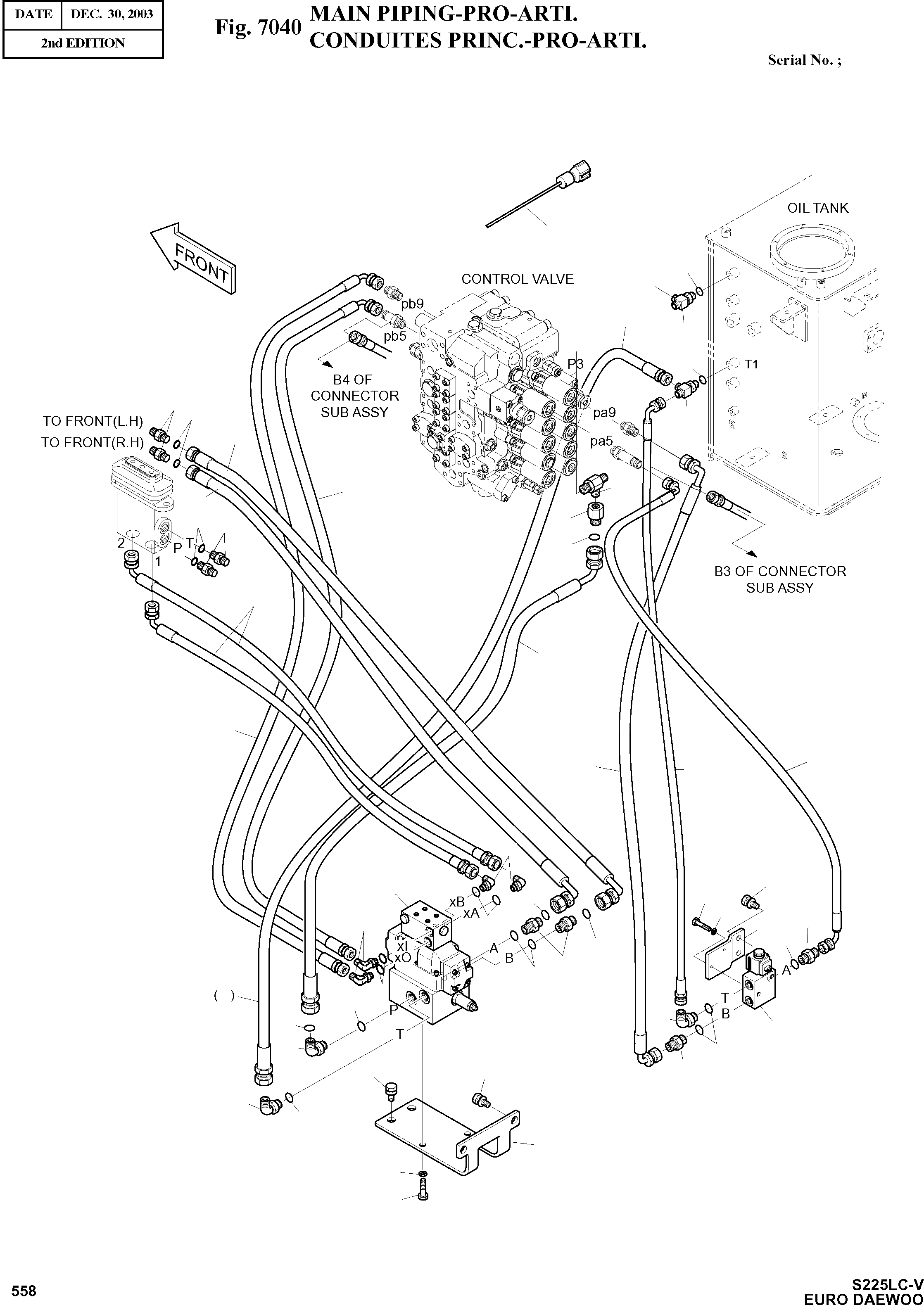

Запчасти Doosan Daewoo MAIN PIPING-PRO-ARTI OPTION PARTS

-

9400-1812

MAIN PIPING-ROTATING&TILTING

SC: D

-2шт.

1

420-00322C

VALVE ASS'Y;OPT

desc: VANNE

1шт.

2

195-02414

BRACKET;OPT. C/V

desc: SUPPORT

1шт.

3

2120-2196D10

BOLT;SET

desc: BOULON A 6 PANS

6шт.

4

420-00370

VALVE;SOLENOID

desc: VANNE

1шт.

5

195-02044

BRACKET;OPT

desc: SUPPORT

1шт.

6

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

2шт.

7

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

8

S8030081

O-RING

desc: JOINT TORIQUE

5шт.

9

S8000111

O-RING

desc: JOINT TORIQUE

9шт.

10

2181-1126D14

ADAPTER

desc: RACCORD ADAPTEUR

2шт.

11

S8000181

O-RING

desc: JOINT TORIQUE

5шт.

12

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

14

2181-2815D3

ELBOW

desc: COUDE

1шт.

15

2181-1702D2

ELBOW

desc: COUDE

1шт.

16

2181-1951D6

TEE

desc: TE

1шт.

17

2181-1951D21

TEE

desc: TE

1шт.

18

2181-1702D3

ELBOW

desc: COUDE

5шт.

19

2181-1126D89

ADAPTER

desc: RACCORD ADAPTEUR

2шт.

21

DS2013450

HOSE

desc: TUYAU FLEXIBLE

1шт.

22

DS2054135

HOSE

desc: TUYAU FLEXIBLE

1шт.

23

9184-1063D2

HOSE

desc: TUYAU FLEXIBLE

1шт.

24

2184-1046D240

HOSE

desc: TUYAU FLEXIBLE

1шт.

25

2184-1061D364

HOSE PF3/8-800L

desc: TUYAU FLEXIBLE

1шт.

26

2184-1046D183

HOSE PF3/8-830L

desc: TUYAU FLEXIBLE

1шт.

27

2184-1046D165

HOSE PF3/8-610L

desc: TUYAU FLEXIBLE

1шт.

28

2184-1046D272

HOSE PF3/8-860L

desc: TUYAU FLEXIBLE

1шт.

29

S0556353

BOLT M8X1.25X50

desc: BOULON A 6 PANS

2шт.

30

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

31

530-00287

HARNESS

desc: FAISCEAU

1шт.

32

S8000141

O-RING

desc: JOINT TORIQUE

1шт.

33

2181-4133D3

ADAPTER

desc: RACCORD ADAPTEUR

4шт.

35

9184-1063D5

HOSE

desc: TUYAU FLEXIBLE

1шт.

36

2184-1046D245

HOSE

desc: TUYAU FLEXIBLE

2шт.

37

9181-1082D4

TEE

desc: TE

1шт.

38

9181-1088D1

REDUCTION UNION

desc: REDUCTION

1шт.
