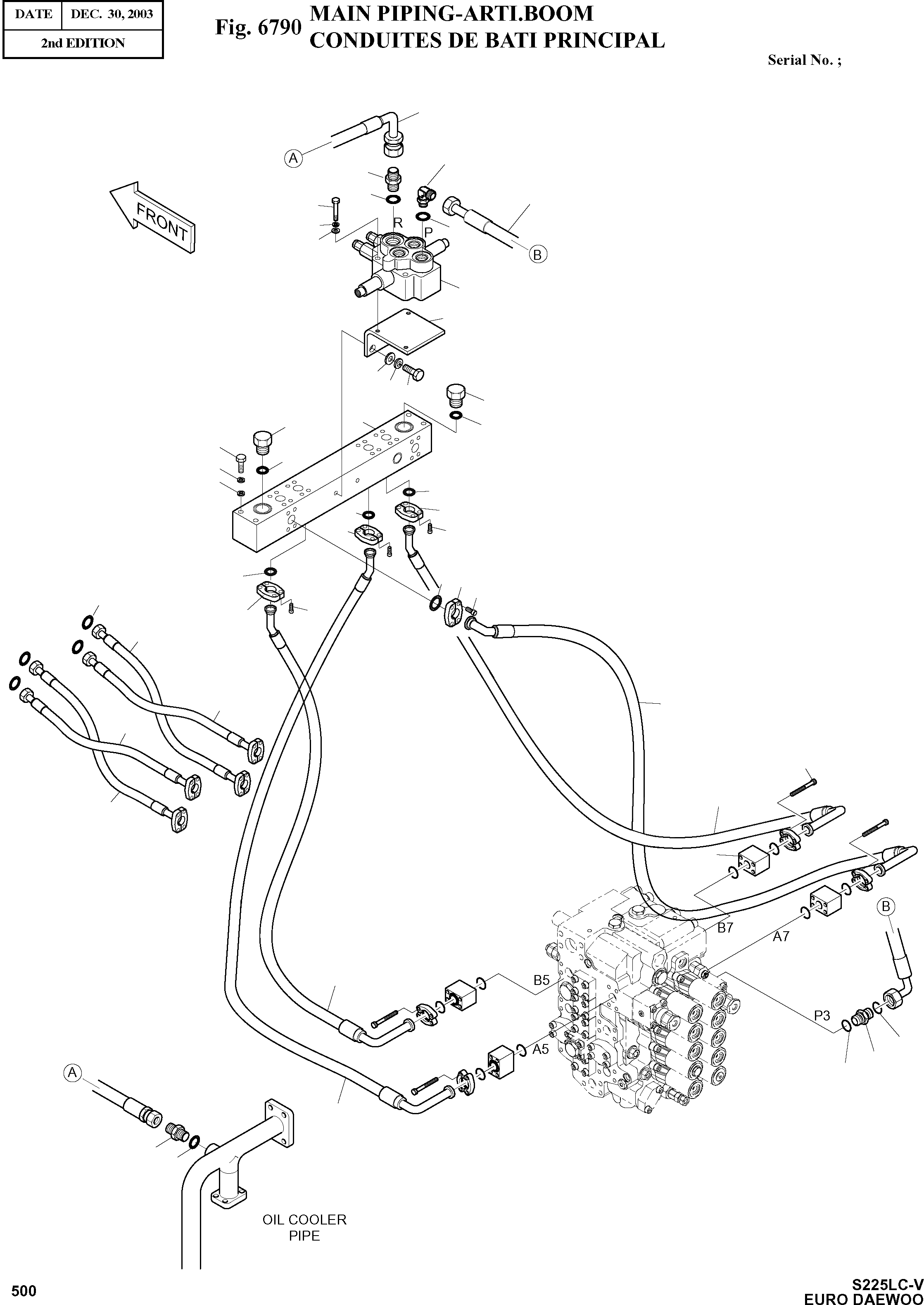

Запчасти Doosan Daewoo MAIN PIPING-ARTI.BOOM OPTION PARTS

-

400-01299

MAIN PIPING

SC: D

-2шт.

1

2420-9365

VALVE;CONTROL

desc: VANNE

1шт.

2

43-00185B

BLOCK

desc: BLOC

1шт.

3

S0559353

BOLT M10X1.5X90

desc: BOULON A 6 PANS

3шт.

4

S0559553

BOLT M10X1.5X100

desc: BOULON A 6 PANS

4шт.

5

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

7шт.

6

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

3шт.

7

2181-2627D1

ADAPTER PFO3/4-UNF1 3/16

desc: RACCORD ADAPTATEUR

1шт.

8

2181-1126D25

ADAPTER PFO1-PF1

desc: RACCORD ADAPTATEUR

2шт.

9

S5102903

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

10

S5010913

WASHER

desc: RONDELLE

2шт.

11

2181-9083

FLANGE;SPLIT

desc: FLASQUE

2шт.

12

2181-9079

FLANGE

desc: FLASQUE EN DEUX PARTIES

6шт.

13

2114-1058D10

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

14

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

16шт.

15

S8000231

O-RING

desc: JOINT TORIQUE

2шт.

16

S8000291

O-RING

desc: JOINT TORIQUE

2шт.

17

2180-1026D2

O-RING

desc: JOINT TORIQUE

3шт.

18

2180-1026D19

O-RING

desc: JOINT TORIQUE

2шт.

19

S8030121

O-RING

desc: JOINT TORIQUE

4шт.

20

195-00419

BRACKET

desc: SUPPORT

1шт.

21

2184-1229D6

HOSE 3/4"-760L

desc: TUYAU FLEXIBLE

2шт.

22

2184-1229D10

HOSE 3/4"-720L

desc: TUYAU FLEXIBLE

2шт.

23

2184-1036D112

HOSE 1"-1200L

desc: TUYAU FLEXIBLE

1шт.

24

DS2013482

HOSE 3/4"-800L

desc: TUYAU FLEXIBLE

1шт.

25

DS2043084

HOSE 1"-3/4"-1200L

desc: TUYAU FLEXIBLE

1шт.

26

DS2043081

HOSE 1"-900L

desc: TUYAU FLEXIBLE

1шт.

27

DS2043083

HOSE 1"-3/4"-830L

desc: TUYAU FLEXIBLE

1шт.

28

DS2045331

HOSE 1"-3/4"-1300L

desc: TUYAU FLEXIBLE

1шт.

29

S0521266

BOLT M16X2X30

desc: BOULON A 6 PANS

2шт.

30

2181-1702D78

ELBOW

desc: COUDE

1шт.

31

181-00806

BLOCK;SPACER

desc: BLOC

1шт.

32

S2213266

BOLT;SOCKET M10X1.5X80

desc: BOULON DE PLOT

4шт.

33

2181-1950D3

PLUG

desc: BOUCHON

2шт.

34

S8000181

O-RING

desc: JOINT TORIQUE

4шт.
