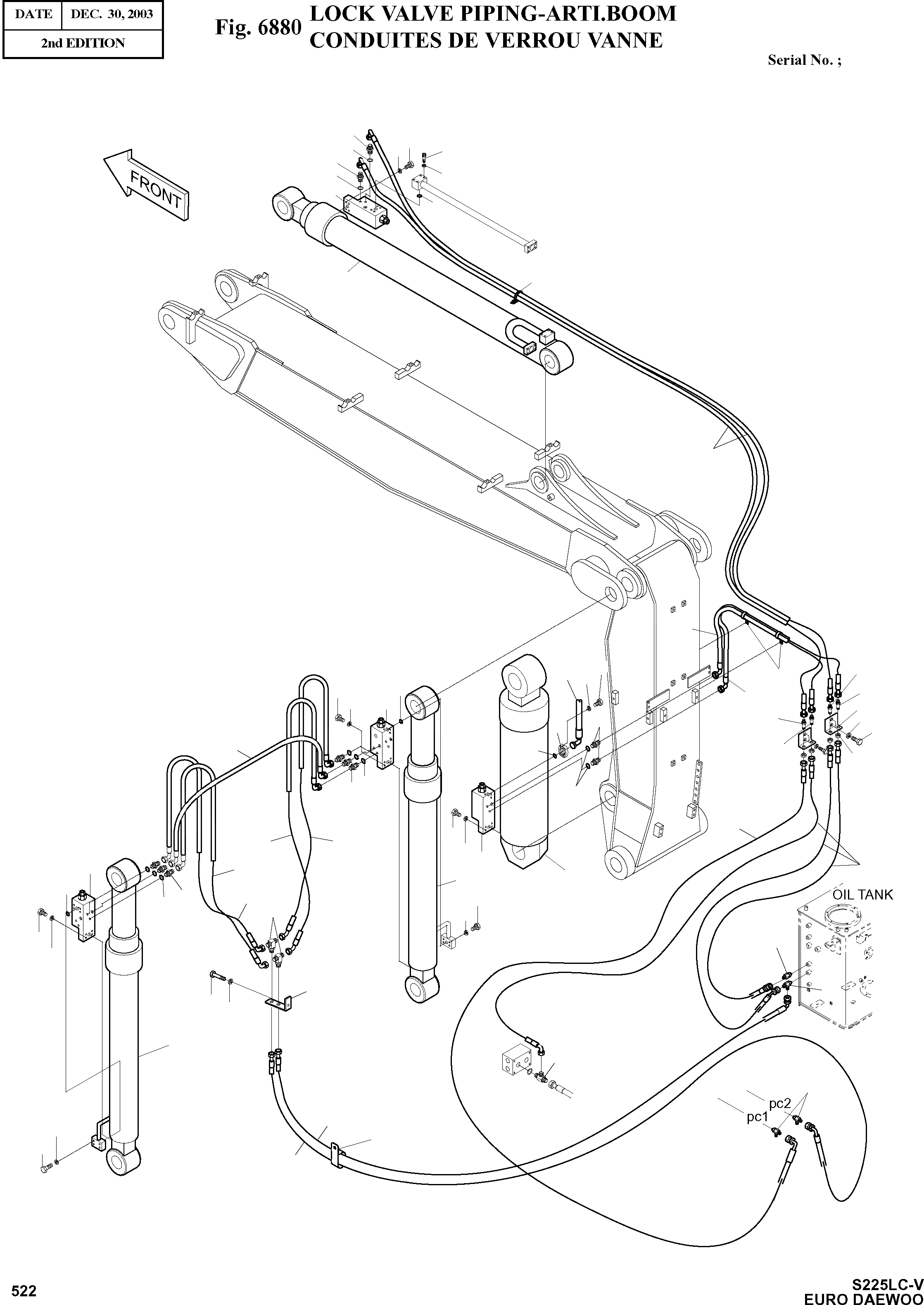

Запчасти Doosan Daewoo LOCK VALVE PIPING-ARTI.BOOM OPTION PARTS

-

400-01402

LOCK VALVE PIPING

SC: D

-2шт.

1

2440-6493C

CYLINDER;ARM

desc: VERIN DE BALANCIER

1шт.

2

420-00004A

VALVE;LOCK

desc: VANNE

1шт.

3

S2215766

BOLT M12X1.75X55

desc: BOULON A 6 PANS

4шт.

4

S5110703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

8шт.

5

S2215866

BOLT:SOCKET M12X1.75X60

desc: BOULON A 6 PANS CREUX

4шт.

6

S8000341

O-RING

desc: JOINT TORIQUE

1шт.

7

2181-1126D14

ADAPTER PF1/4-PF1/4

desc: RACCORD ADAPTATEUR

8шт.

8

S8000111

O-RING

desc: JOINT TORIQUE

10шт.

9

195-00163

BRACKET

desc: SUPPORT

2шт.

10

181-00078D5

ADAPTER PF1/4-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

11

S0562766

BOLT M14X20.X40

desc: BOULON A 6 PANS

4шт.

12

S5102801

WASHER;SPRING M14

desc: RONDELLE ELASTIQUE

4шт.

13

440-00182A

CYLINDER;BOOM(L.H)

desc: VERIN DE FLECHE

1шт.

14

440-00183A

CYLINDER;BOOM(R.H)

desc: VERIN DE FLECHE

1шт.

15

440-00444

CYLINDER;ARTI. BOOM

desc: VERIN DE ARTICULAIRE

1шт.

16

420-00226

VALVE;LOCK

desc: VANNE

3шт.

17

S2212766

BOLT;SOCKET M10X1.5X55

desc: BOULON A 6 PANS CREUX

20шт.

18

S5110613

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

24шт.

19

2181-9080

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

2шт.

20

S2212366

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

4шт.

21

2180-1026D2

O-RING

desc: JOINT TORIQUE

1шт.

23

2181-1951D14

TEE PF1/4-PF3/8-PF1/4

desc: TE

1шт.

24

2181-1951D31

TEE PFO1/2-2PF3/8

desc: TE

1шт.

25

2181-2375D7

TEE PFO1/4-2PF3/8

desc: TE

3шт.

26

181-00008

TEE PF1/4-PF1/4-PF3/8

desc: TE

2шт.

27

2181-1951D16

TEE PF3/8-PF3/8-PF3/8

desc: TE

1шт.

28

DS2057010

HOSE PF3/8-1850L

desc: TUYAU FLEXIBLE

1шт.

29

DS2058248

HOSE PF3/8-2300L

desc: TUYAU FLEXIBLE

1шт.

30

2184-1046D290

HOSE PF3/8-4800L

desc: TUYAU FLEXIBLE

2шт.

31

2184-1046D219

HOSE PF1/4-2100L

desc: TUYAU FLEXIBLE

1шт.

32

2184-1046D120

HOSE PF1/4-1950L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1046D238

HOSE PF3/8-2300L

desc: TUYAU FLEXIBLE

3шт.

34

2184-1060D148

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1062D12

HOSE PF1/4-1400L

desc: TUYAU FLEXIBLE

2шт.

36

2184-1062D12

HOSE PF1/4-1400L

desc: TUYAU FLEXIBLE

2шт.

37

DS2059383

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1202D77

HOSE PF3/4-630L

desc: TUYAU FLEXIBLE

1шт.

39

2124-1353D19

CLIP

desc: ATTACHE

2шт.

40

S8000281

O-RING

desc: JOINT TORIQUE

2шт.

41

121-00010D1

NUT PF3/8

desc: ECROU

4шт.

42

2181-1126D85

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

43

181-00078D3

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

44

2124-1084D2

CLIP;BAND 150L

desc: ATTACHE

30шт.

45

S0561353

BOLT M12X1.75X80

desc: BOULON A 6 PANS

1шт.

46

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

3шт.

47

124-00208D5

CLIP

desc: CLIP

1шт.

48

195-02752

BRACKET

desc: SUPPORT

1шт.
