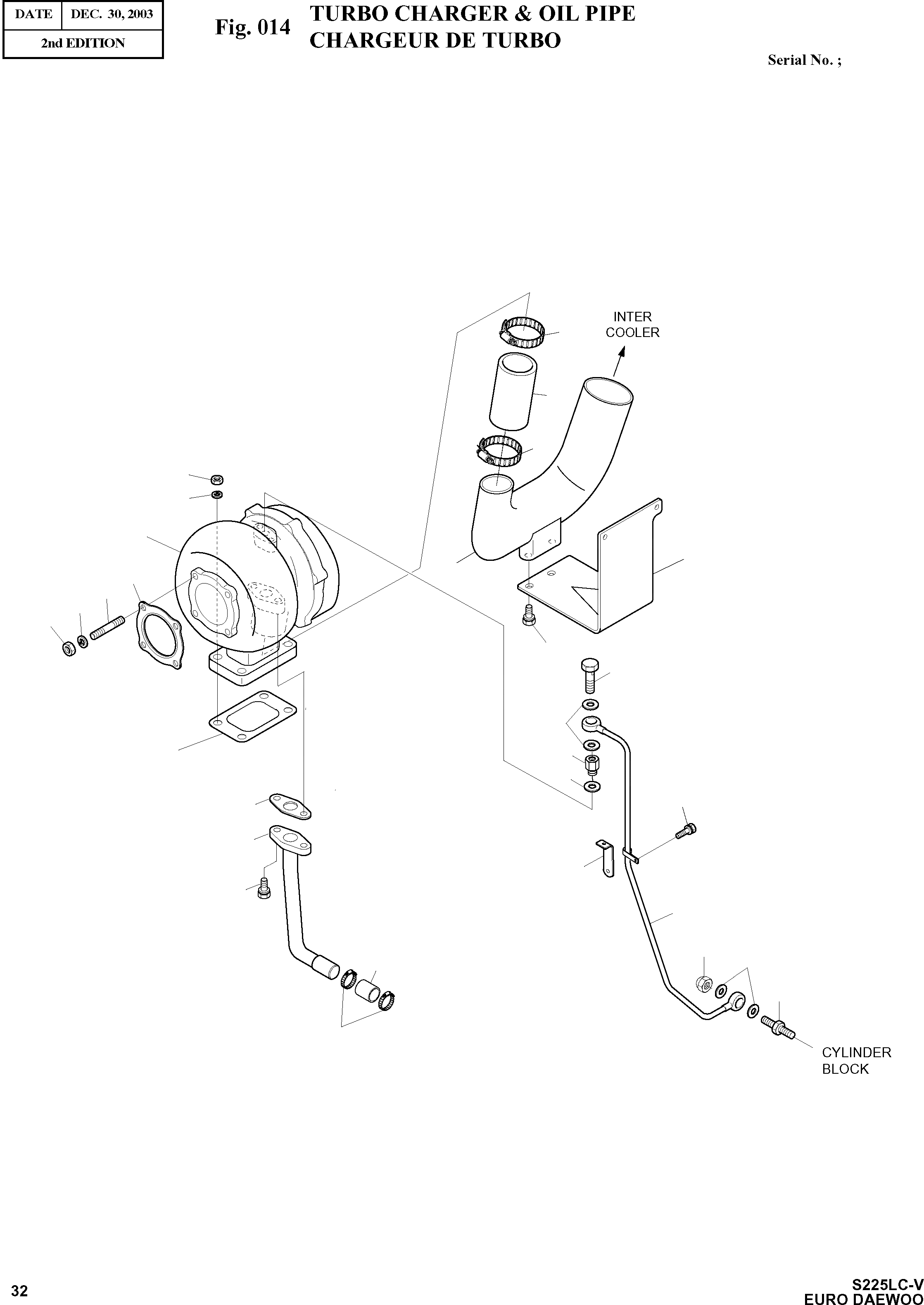

Запчасти Doosan Daewoo TURBO CHARGER & OIL PIPE ENGINE PARTS

101

65.09100-7080

TURBO CHARGER ASS'Y

SERIAL: 020913

1шт.

101

65.09100-7080A

TURBO CHARGER ASS'Y

SERIAL: 020914

1шт.

102

65.09901-0018A

GASKET

desc: JOINT

1шт.

103

06.11024-9202

NUT M10X1.25

desc: ECROU

4шт.

104

06.16731-2108

WASHER;SPRING

desc: RONDELLE

4шт.

105

65.09901-0020

GASKET

desc: JOINT

1шт.

106

06.06225-0708

BOLT;STUD M8X30

desc: BOULON DE GOUJON

4шт.

107

06.11063-8214

NUT;HEX. M8

desc: ECROU

4шт.

108

06.16731-2107

WASHER;SPRING

desc: RONDELLE

4шт.

109

65.98130-0200

ADAPTER

SERIAL: 020813

1шт.

109

65.98130-0200A

ADAPTER

SERIAL: 020814

1шт.

110

65.05701-5342

OIL PIPE ASS'Y

desc: CONDUITE

1шт.

111

06.78144-2403

SCREW;HOLLOW M12X1.5

desc: VIS CREUSE

1шт.

112

06.56190-0709

RING;SEAL

desc: BAGUE D'ETANCHEITE

1шт.

113

06.56190-0704

RING;SEAL

desc: BAGUE D'ETANCHEITE

2шт.

114

65.98155-0011

UNION;HOLLOW

desc: GRAISSEUR

1шт.

115

06.56180-0714

RING;SEAL

desc: BAGUE D'ETANCHEITE

2шт.

116

06.12172-9314

NUT;CAP

desc: ECROU

1шт.

117

65.97480-0135

HOLDER

desc: POSSESSEUR

1шт.

118

06.01913-3110

BOLT ASS'Y M8X12

desc: BOULON A 6 PANS

1шт.

119

65.05701-5343

OIL PIPE ASS'Y

desc: CONDUITE

1шт.

120

65.96601-0045A

GASKET

desc: JOINT

1шт.

121

06.01913-3115

BOLT ASS'Y M8X25

desc: BOULON A 6 PANS

2шт.

122

65.96301-0280A

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

123

06.67020-0106

CLAMP;HOSE

desc: FIXATION DE TUYAU

2шт.

201

65.09411-5054

PIPE;INLET

desc: CONDUITES

1шт.

202

65.96301-0279

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

203

06.67020-0109

CLAMP;HOSE

desc: FIXATION DE TUYAU

2шт.

204

65.09440-0016

BRACKET

desc: SUPPORT

1шт.

205

06.01923-3215

BOLT ASS'Y M10X25

desc: BOULON A 6 PANS

2шт.
