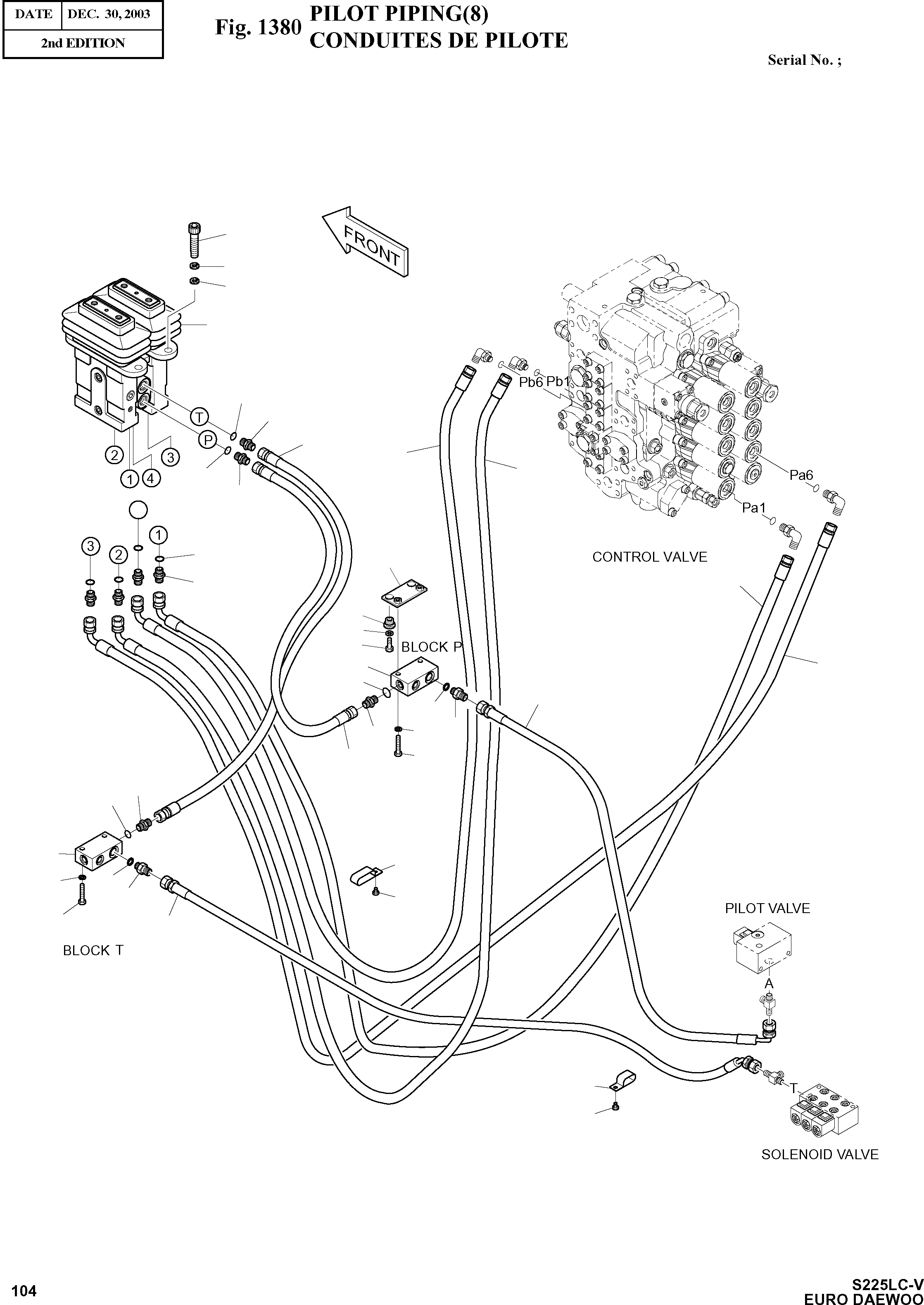

Запчасти Doosan Daewoo PILOT PIPING(8) BODY PARTS

-

400-00853A

PILOT PIPING(8)

SC: D

-2шт.

4

420-00030

VALVE;PEDAL

desc: VANNE; PEDALE

1шт.

5

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

4шт.

6

S5110603

WASHER

desc: RONDELLE ELASTIQUE

4шт.

7

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

8

2423-1470

BLOCK

desc: BLOC

2шт.

9

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

10

S0558653

BOLT M10X1.5X55

desc: BOULON A 6PANS

2шт.

11

S8000111

O-RING

desc: JONT TORIQUE

6шт.

12

S8000141

O-RING

desc: JONT TORIQUE

2шт.

13

S8000181

O-RING

desc: JONT TORIQUE

2шт.

14

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

6шт.

16

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: ADAPTEUR

2шт.

19

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: ADAPTEUR

1шт.

20

2471-1135

FILTER;ADAPTER

desc: ADAPTEUR

1шт.

24

124-00209D4

CLIP

desc: ATTACHE

1шт.

37

2184-1045D42

HOSE PF1/4-420L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1045D42

HOSE PF1/4-420L

desc: TUYAU FLEXIBLE

1шт.

39

2184-1046D179

HOSE PF1/4-2900L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1046D86

HOSE PF1/4-3100L

desc: TUYAU FLEXIBLE

1шт.

41

2184-1046D78

HOSE PF1/4-3200L

desc: TUYAU FLEXIBLE

1шт.

42

2184-1046D78

HOSE PF1/4-3200L

desc: TUYAU FLEXIBLE

1шт.

43

2184-1036D224

HOSE PF1/2-1700L

desc: TUYAU FLEXIBLE

1шт.

44

DS2054251

HOSE PF1/2-1840L

desc: TUYAU FLEXIBLE

1шт.

45

120-00276

BOLT;SET M8X1.25X12

desc: BOULON A 6 PANS

2шт.

46

124-00209D3

CLIP

desc: ATTACHE

1шт.

47

S0558753

BOLT M10X1.5X60

desc: BOULON A 6PANS

2шт.

48

621-02151

PLATE

desc: PLAQUE

1шт.

49

198-00016

RUBBER

desc: CAOUTCHOUC

2шт.

50

2114-1058D10

WASHER

desc: RONDELLE PLATE

2шт.

51

S0512253

BOLT M10X1.5X30

desc: BOULON A 6PANS

2шт.
