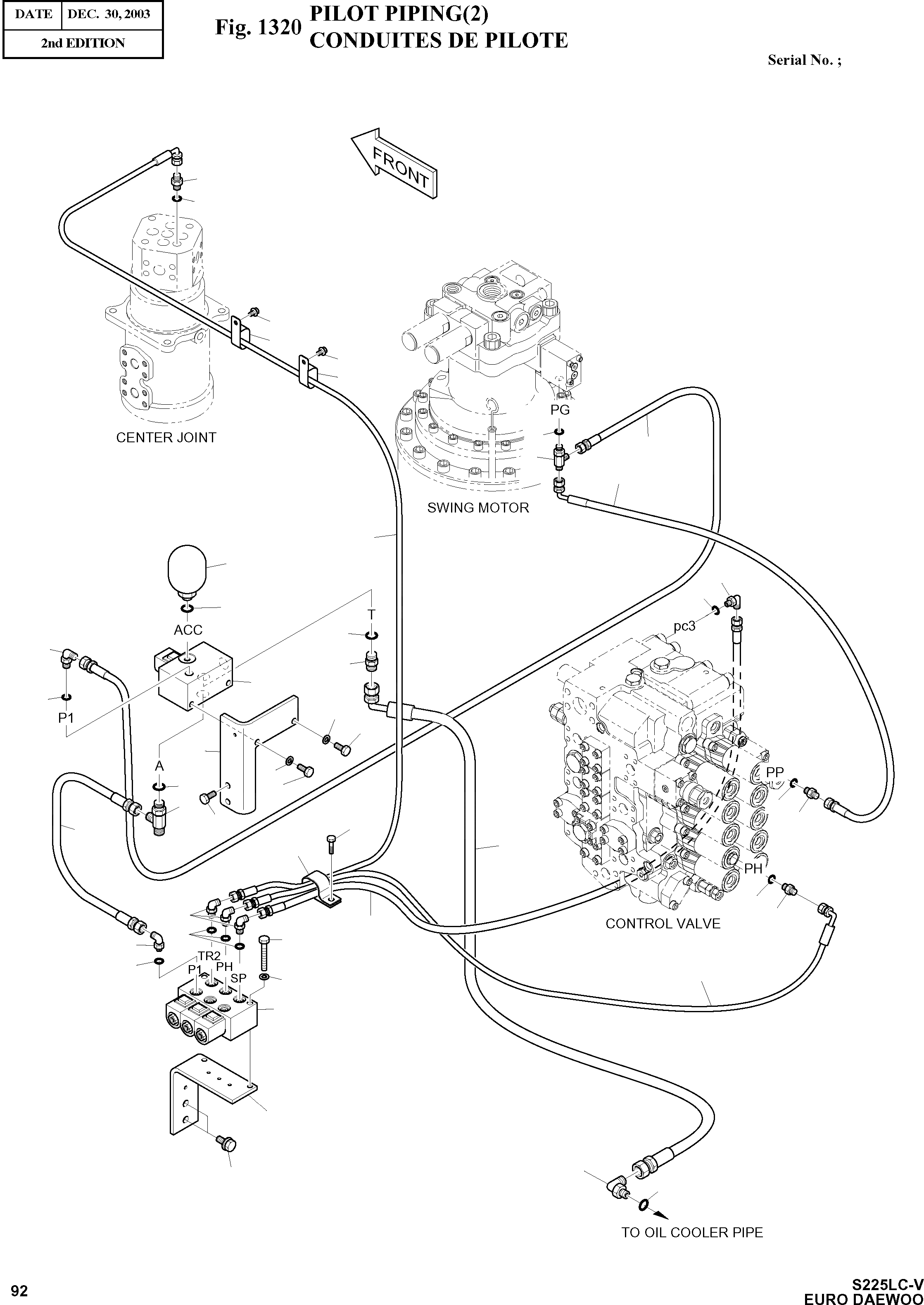

Запчасти Doosan Daewoo PILOT PIPING(2) BODY PARTS

-

400-00852A

PILOT PIPING(2)

SC: D

-2шт.

9

2120-2196D8

BOLT;SET M12X1.75X30

desc: BOULON A 6 PANS

2шт.

14

124-00208D9

CLIP

desc: ATTACHE

1шт.

19

195-01993

BRACKET

desc: SUPPORT

1шт.

20

426-00163

VALVE;SOLENOID

desc: VANNE SOLENOIDE

1шт.

21

S0558953

BOLT M10X1.5X70

desc: BOULON A 6PANS

2шт.

22

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

23

195-01583B

BRACKET

desc: SUPPORT

1шт.

24

2120-2196D4

BOLT;SET M10X1.5X30

desc: BOULON A 6 PANS

2шт.

25

2426-9039B

VALVE;PILOT

desc: VANNE

1шт.

26

S0512053

BOLT M10X1.5X25

desc: BOULON A 6PANS

2шт.

27

2460-9060

ACCUMULATOR;PILOT

desc: ACCUMULATEUR

1шт.

28

S8000111

O-RING

desc: JONT TORIQUE

10шт.

30

S8000181

O-RING

desc: JONT TORIQUE

4шт.

34

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

2шт.

36

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: ADAPTEUR

1шт.

37

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

6шт.

39

2181-1702D2

ELBOW PFO1/2-PF1/2

desc: COUDE

1шт.

41

124-00209D1

CLIP

desc: ATTACHE

2шт.

42

120-00276

BOLT M8X1.25X12

desc: BOULON A 6PANS

3шт.

43

2181-1126D75

ADAPTER;LONG

desc: ADAPTEUR

1шт.

47

2181-1951D19

TEE

desc: TE

1шт.

48

2181-1951D1

TEE

desc: TE

1шт.

58

2184-1036D70

HOSE PF1/2-450L

desc: TUYAU FLEXIBLE

1шт.

59

2184-1045D159

HOSE PF1/4-570L

desc: TUYAU FLEXIBLE

1шт.

78

2184-1045D157

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

79

2184-1046D148

HOSE PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

80

2184-1045D77

HOSE PF1/4-1480L

desc: TUYAU FLEXIBLE

1шт.

81

2184-1046D162

HOSE PF1/4-920L

desc: TUYAU FLEXIBLE

1шт.

82

2184-1046D169

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.
