Запчасти Doosan Daewoo ELECTRIC WIRING(3)-RELATED PARTS BODY PARTS

-

500-00148

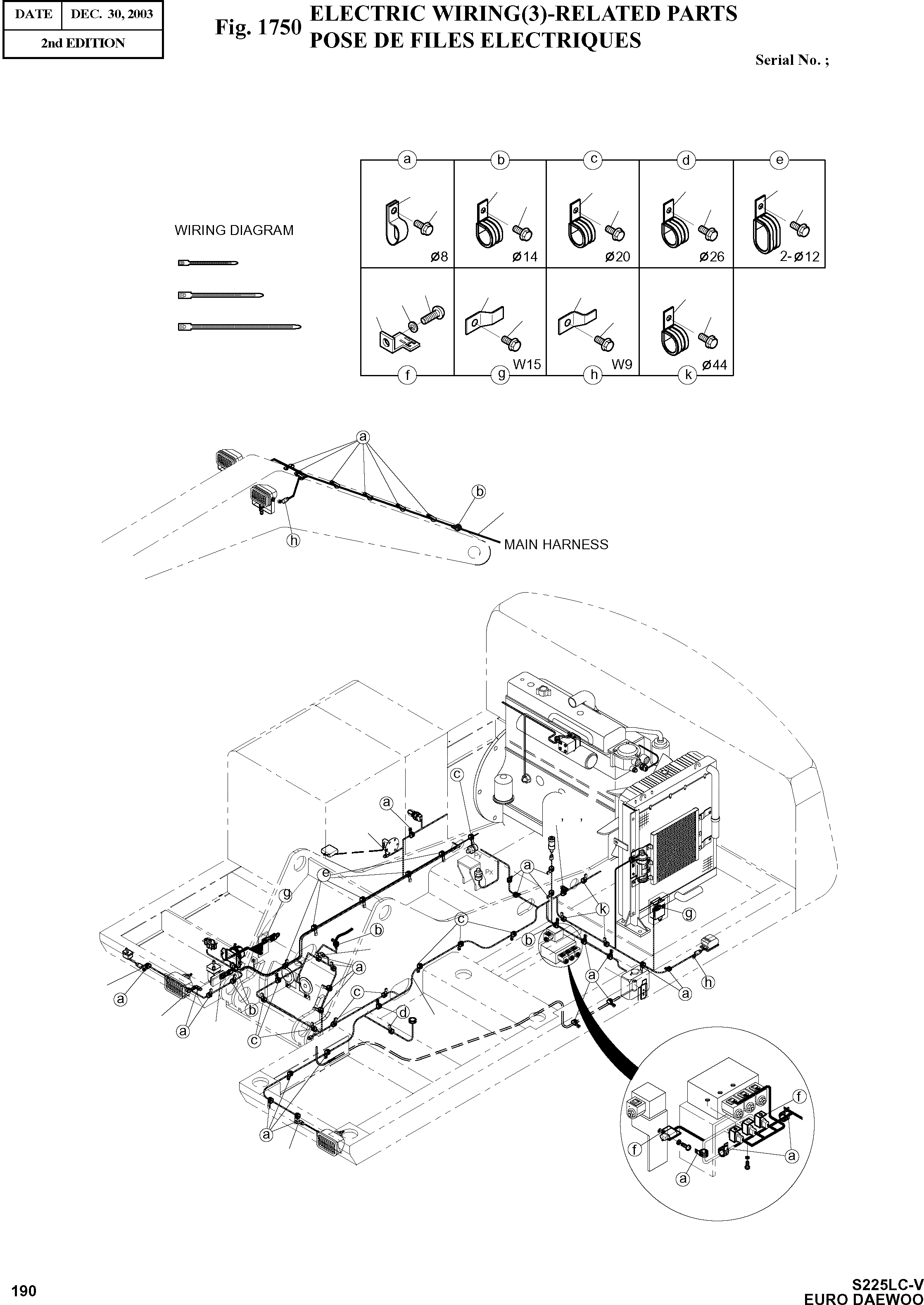

ELECTRIC WIRING(3)-RELATED PARTS

SC: D

-2шт.

1

599-00044

WIRING DIAGRAM

SC: D

1шт.

2

530-00259A

HARNESS;MAIN

desc: FAISCEAU PRINCIPAL

1шт.

2A

2548-1027

DIODE ASS'Y 3A

desc: DIODE

7шт.

2B

548-00003

DIODE ASS'Y 3A

desc: DIODE

1шт.

4

530-00311D3

HARNESS;WORKING LAMP

desc: FAISCEAU LAMPE DE TRAVAIL

1шт.

17

2195-3500

BRACKET;HOUSING

desc: SUPPORT

5шт.

18

S3450953

SCREW M8x1.0X12

desc: VIS

4шт.

19

S5102303

WASHER;SPRING M4

desc: RONDELLE ELASTIQUE M6

4шт.

20

2197-1660

BRACKET;HOUSING W15

desc: SUPPORT

3шт.

21

2197-1661

BRACKET;HOUSING W9

desc: SUPPORT

6шт.

24

2124-1509D1

CLIP

desc: ATTACHE

31шт.

25

124-00208D2

CLIP Ґх14/M8

desc: ATTACHE

5шт.

26

124-00208D3

CLIP Ґх20/M8

desc: ATTACHE

10шт.

27

124-00208D4

CLIP Ґх26/M8

desc: ATTACHE

2шт.

28

124-00209D1

CLIP 2-Ґх26/M8

desc: ATTACHE

5шт.

29

120-00276

BOLT M8x1.25X12

desc: BOULON A 6PANS

60шт.

31

2124-1622D1

CLIP;BAND L150

desc: ATTACHE

10шт.

32

2124-1622D2

CLIP;BAND L200

desc: ATTACHE

15шт.

33

2124-1622D3

CLIP;BAND L280

desc: ATTACHE

10шт.

34

2120-2187

BOLT;STUD M8x1.25

desc: BOULON DE PLOT

1шт.

35

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

1шт.

36

195-02154

BRACKET;HOUSING W12

desc: SUPPORT

1шт.

37

124-00208D7

CLIP Ґх44/M8

desc: ATTACHE

3шт.
