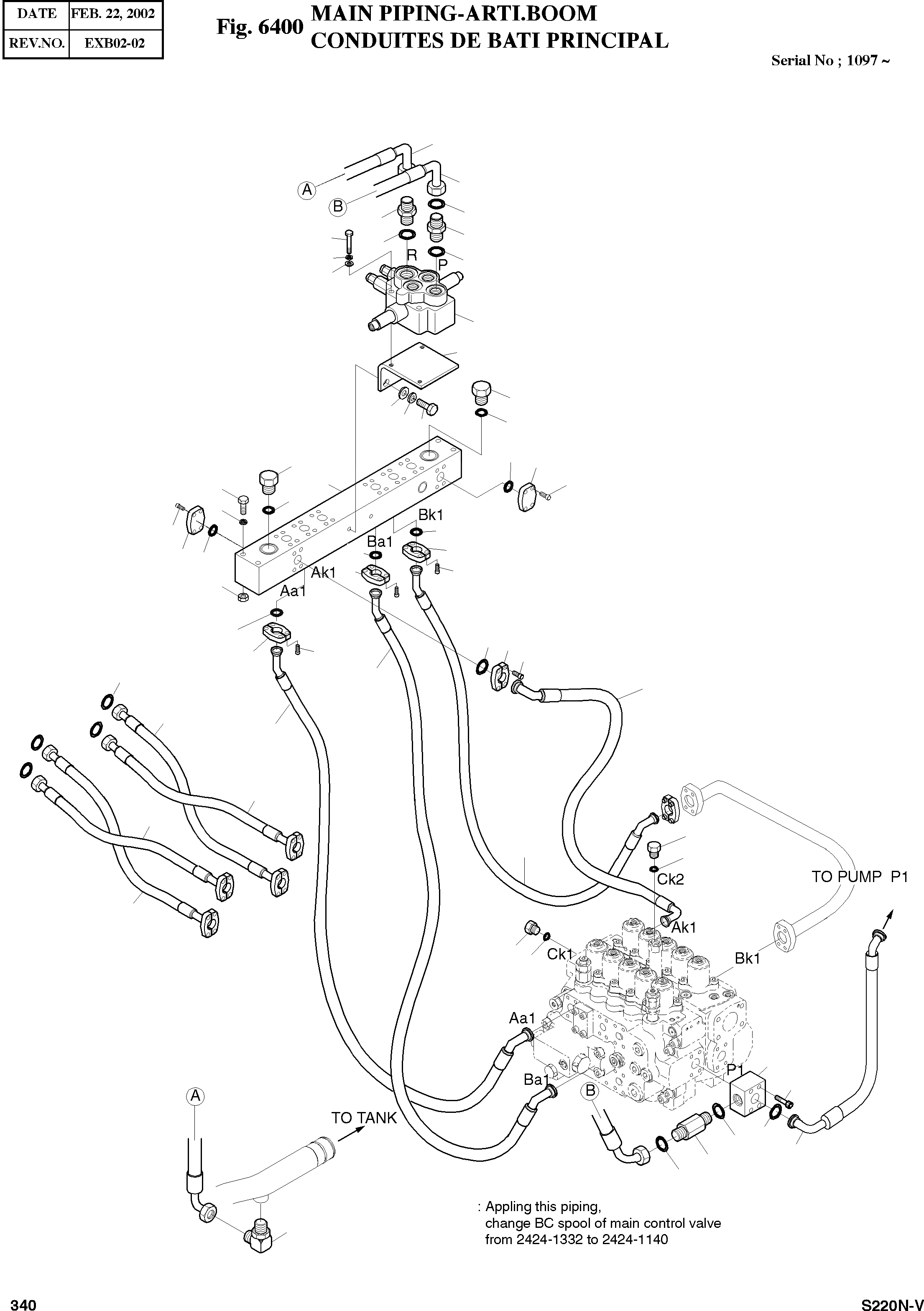

Запчасти Doosan Daewoo MAIN PIPING-ARTI.BOOM OPTION PART

-

400-00305

MAIN PIPING

SERIAL: 1097

-2шт.

1

2420-9365

VALVE;CONTROL

desc: VANNE

1шт.

2

423-00063

BLOCK

desc: BLOC

1шт.

3

S0559353

BOLT M10X1.5X90

desc: BOULON A 6 PANS

3шт.

4

S0559553

BOLT M10X1.5X100

desc: BOULON A 6 PANS

4шт.

5

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

7шт.

6

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

3шт.

7

2181-2627D1

ADAPTER PFO3/4-UNF1 3/16

desc: RACCORD ADAPTATEUR

1шт.

8

2181-1126D25

ADAPTER PFO1-PF1

desc: RACCORD ADAPTATEUR

1шт.

9

2181-1950D7

PLUG

desc: BOUCHON

2шт.

10

2181-1950D9

PLUG

desc: BOUCHON

2шт.

11

2181-9083

FLANGE;SPLIT

desc: FLASQUE

2шт.

12

2181-9079

FLANGE

desc: FLASQUE EN DEUX PARTIES

6шт.

13

2181-2157D5

FLANGE

desc: BRIDE

2шт.

14

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1097-1238

24шт.

14

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1239

24шт.

15

S8000231

O-RING

desc: JOINT TORIQUE

2шт.

16

S8000291

O-RING

desc: JOINT TORIQUE

3шт.

17

2180-1026D2

O-RING

desc: JOINT TORIQUE

3шт.

18

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

19

S8030121

O-RING

desc: JOINT TORIQUE

4шт.

20

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

21

2184-1229D6

HOSE 3/4"-760L

desc: TUYAU FLEXIBLE

2шт.

22

2184-1229D10

HOSE 3/4"-720L

desc: TUYAU FLEXIBLE

2шт.

23

2184-1036D190

HOSE 1"-1300L

desc: TUYAU FLEXIBLE

1шт.

24

2184-1198D75

HOSE 3/4"-1050L

desc: TUYAU FLEXIBLE

1шт.

25

2184-1094D68

HOSE 1"-3/4"-1200L

desc: TUYAU FLEXIBLE

1шт.

26

2184-1094D64

HOSE 1"-900L

desc: TUYAU FLEXIBLE

1шт.

27

2184-1094D61

HOSE 3/4"-750L

desc: TUYAU FLEXIBLE

1шт.

28

2184-1083D66

HOSE 1"-3/4"-1200L

desc: TUYAU FLEXIBLE

1шт.

29

2184-1289

HOSE 3/4"-970L

desc: TUYAU FLEXIBLE

1шт.

30

2181-1702D73

ELBOW PFO1-PF1

desc: COUDE

1шт.

31

2114-1058D10

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

32

S2213361

BOLT;SOCKET M10X1.5X85

SERIAL: 1097-1238

4шт.

32

S2213366

BOLT;SOCKET M10X1.5X85

SERIAL: 1239

4шт.

33

423-00051

BLOCK;TEE

desc: BLOC

1шт.

34

195-00419

BRACKET

desc: SUPPORT

1шт.

35

S0521253

BOLT M16X2X30

SERIAL: 1097-1238

2шт.

35

S0521256

BOLT M16X2X30

SERIAL: 1239

2шт.

36

S5102903

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

37

S5010913

WASHER

desc: RONDELLE

2шт.

38

2424-1140

SPOOL;BC

desc: TIROIR

1шт.

39

2181-2627D4

ADAPTER PFO3/4-UNF1 3/16

desc: RACCORD ADAPTATEUR

1шт.
