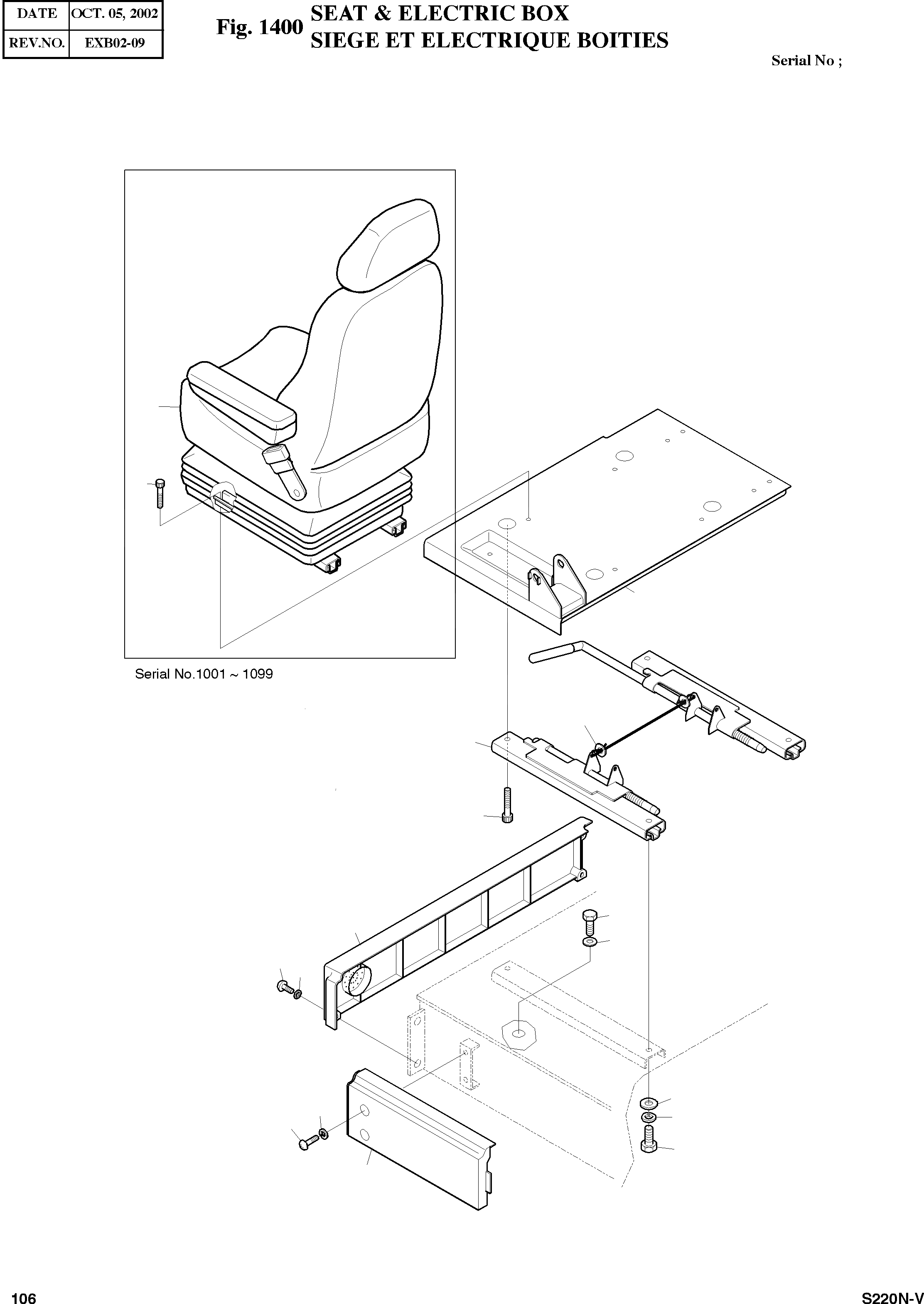

Запчасти Doosan Daewoo SEAT & ELECTRIC BOX BODY PARTS

-

2197-1825F2C

CONTROL STAND ASS'Y

SERIAL: 1001-1021

-2шт.

-

2197-1825F2E

CONTROL STAND ASS'Y

SERIAL: 1022-1062

-2шт.

-

2197-1825F2H

CONTROL STAND ASS'Y

SERIAL: 1063-1197

-2шт.

-

2197-1825F2K

CONTROL STAND ASS'Y

SERIAL: 1198

-2шт.

2

2194-9005B

RAIL;SEAT

SERIAL: 1001-1099

1шт.

2

2194-9005C

RAIL;SEAT

SERIAL: 1100

1шт.

3

2901-9026

SEAT

SERIAL: 1001-1099

1шт.

4

2901-1078B

SEAT PLATE ASS'Y

SERIAL: 1001-1021

1шт.

4

2901-1078C

SEAT PLATE ASS'Y

SERIAL: 1022-1099

1шт.

4

2901-1078E

SEAT PLATE ASS'Y

SERIAL: 1100

1шт.

21

2621-3743

COVER;BOX(FRONT)

desc: COUVERCLE

1шт.

22

2120-2166D7

SCREW

desc: BOULON A 6 PANS

6шт.

23

2114-1898D3

WASHER

desc: RONDELLE

6шт.

24

2621-3870

COVER;BOX(LH)

desc: COUVERCLE

1шт.

28

S0514853

BOLT M12X1.75X20

desc: BOULON A 6 PANS

4шт.

32

2120-2166D5

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

33

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

34

S5020513

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

37

2114-1898D4

WASHER M5

desc: RONDELLE

2шт.

39

S2208761

BOLT;SOCKET

SERIAL: 1001-1099

8шт.

39

S2208761

BOLT;SOCKET

SERIAL: 1100

4шт.

47

2114-1058D46

WASHER

desc: RONDELLE

4шт.
