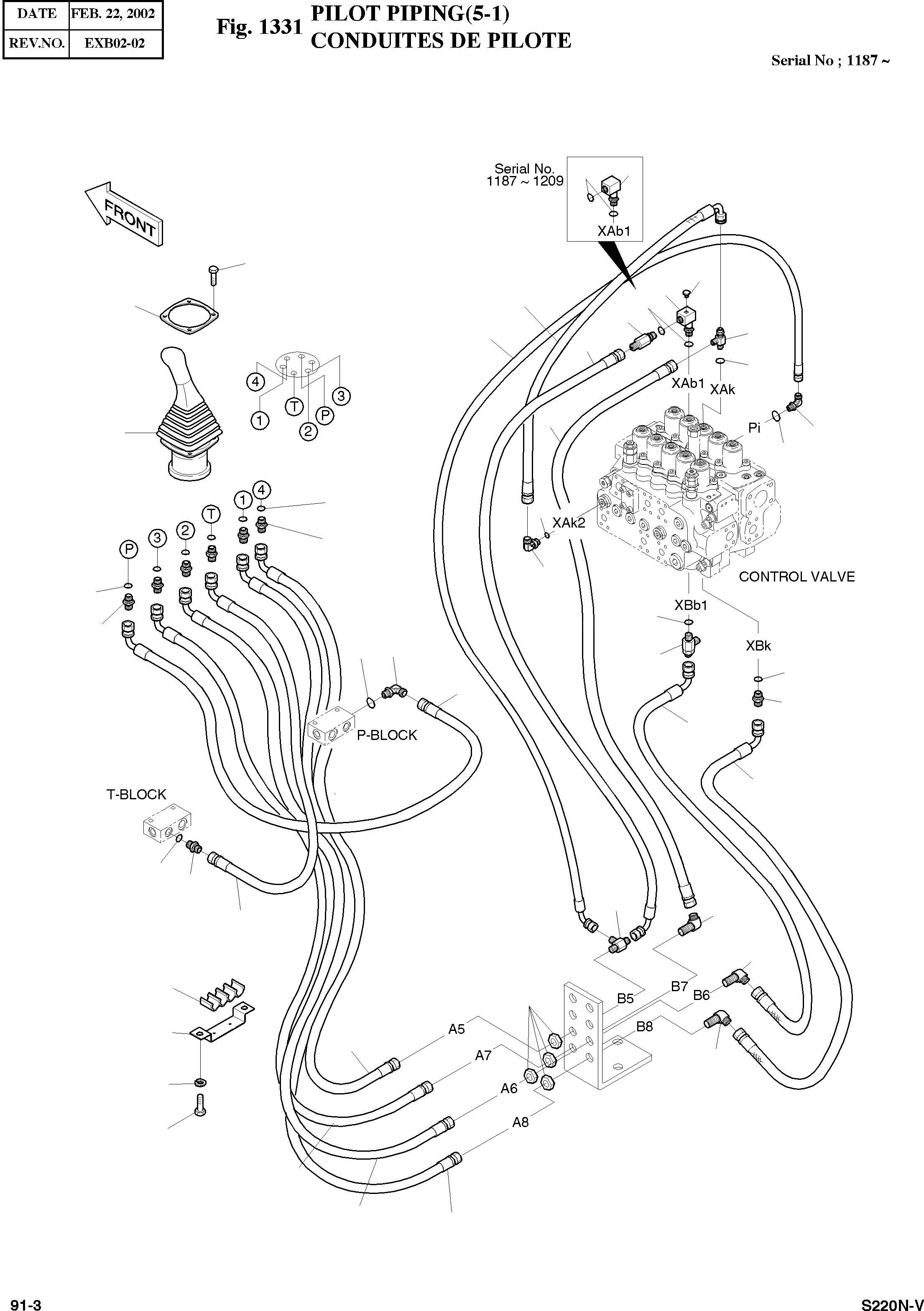

Запчасти Doosan Daewoo PILOT PIPING(5-1) BODY PARTS

-

400-00736

PILOT PIPING

SERIAL: 1187

-2шт.

2

420-00238

VALVE;REMOCON(RH)

desc: VANNE DE COMMAND A DISTANCE

1шт.

3

S2205061

BOLT;SOCKET M6X1.0X25

desc: BOULON A 6 PANS CREUX

4шт.

18

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

2шт.

19

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

2шт.

20

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

4шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

7шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

13B

121-00010D1

NUT

desc: . ECROU

4шт.

13C

181-00086D1

TEE 2PF3/8-PF1/4

desc: . TE

1шт.

13D

181-00161D1

ELBOW;CONNECTOR

desc: . COUDE

2шт.

13E

181-00160D1

ELBOW;CONNECTOR

desc: . COUDE

1шт.

31

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

6шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

34

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

1шт.

42

181-00144D4

ADAPTER;ORIFICE

desc: RACCORD ADAPTATEUR

1шт.

44

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

45

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

47

2181-2295D16

ELBOW 2PFO3/8

SERIAL: 1187-1209

1шт.

57

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

58

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

59

2184-1060D148

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

60

2184-1060D148

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

61

2184-1060D148

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

62

2184-1060D148

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

78

2184-1046D272

HOSE PF3/8-860L

desc: TUYAU FLEXIBLE

1шт.

79

2184-1046D273

HOSE PF3/8-810L

desc: TUYAU FLEXIBLE

1шт.

84

2184-1045D219

HOSE PF3/8-870L

desc: TUYAU FLEXIBLE

1шт.

85

2184-1060D212

HOSE PF3/8-820L

desc: TUYAU FLEXIBLE

1шт.

89

2184-1046D206

HOSE PF1/4-550L

desc: TUYAU FLEXIBLE

1шт.

90

2184-1060D41

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

1шт.

133

2181-2375D11

TEE PFO3/8-PF3/8-PF1/4

desc: TE

1шт.

144

2181-1951D49

TEE PFO3/8-2PF3/8

desc: TE

1шт.

147

2181-2047A

PLUG M10X1.0

SERIAL: 1210

1шт.

149

DS2459002

ELBOW POF3/8-PF3/8

SERIAL: 1210

1шт.
