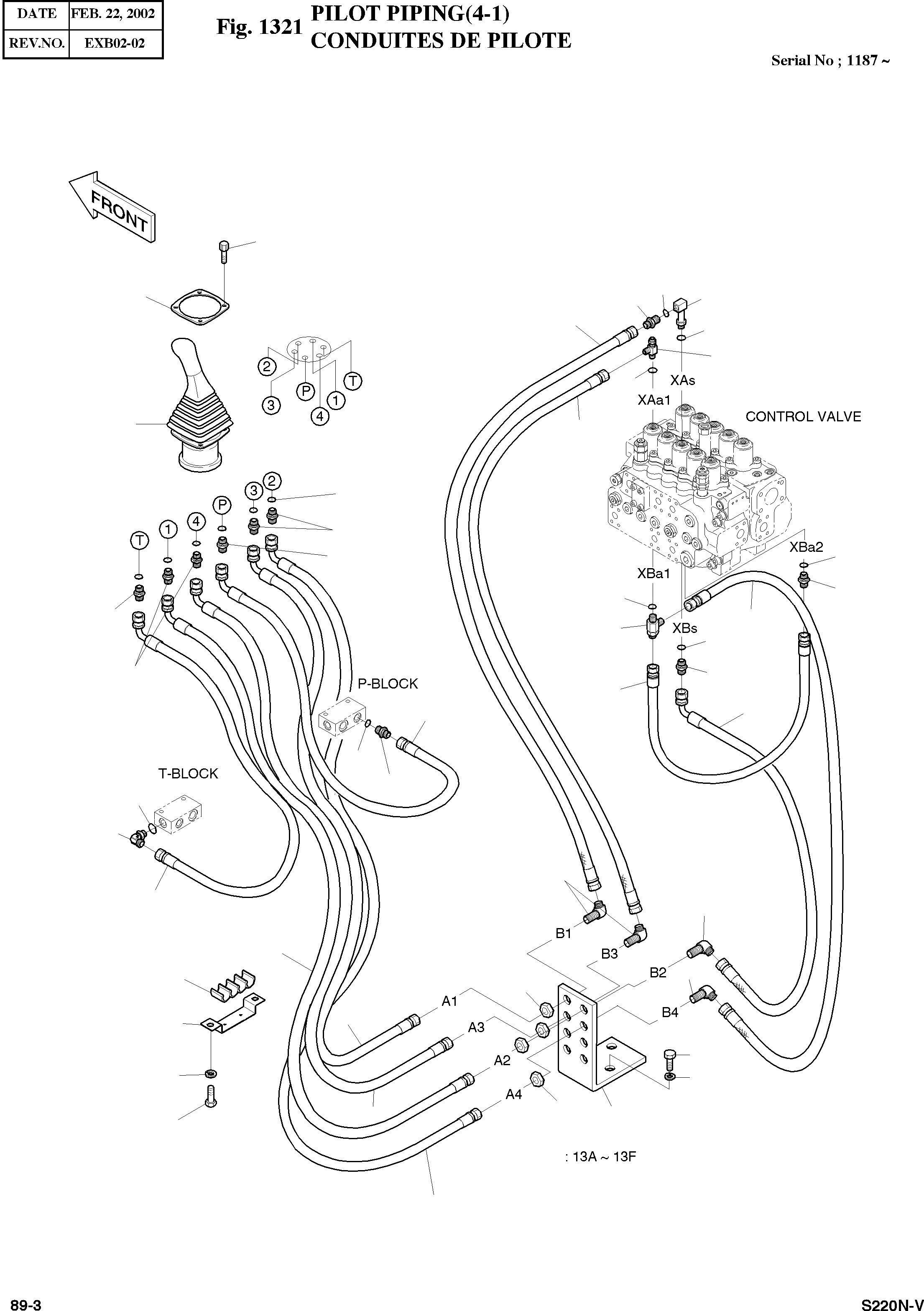

Запчасти Doosan Daewoo PILOT PIPING(4-1) BODY PARTS

-

400-00736

PILOT PIPING

SERIAL: 1187

-2шт.

1

420-00237

VALVE;REMOCON(LH)

desc: VANNE DE COMMAND A DISTANCE

1шт.

3

S2205061

BOLT;SOCKET M6X1.0X25

desc: BOULON A 6 PANS CREUX

4шт.

13

181-00662

CONNECTOR SUB ASS'Y

desc: CONNECTEUR

1шт.

13A

-

PLATE

SC: D

1шт.

13B

121-00010D1

NUT

desc: . ECROU

4шт.

13D

181-00161D1

ELBOW;CONNECTOR

desc: . COUDE

3шт.

13F

181-00161D2

ELBOW;CONNECTOR

desc: . COUDE

1шт.

18

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

2шт.

19

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

2шт.

20

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

4шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

8шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

31

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

3шт.

34

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

2шт.

43

2181-1126D120

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

3шт.

44

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

45

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

47

2181-2295D16

ELBOW 2PFO3/8

desc: COUDE

1шт.

51

2184-1267D9

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

52

2184-1267D10

HOSE PF3/8-2050L

desc: TUYAU FLEXIBLE

1шт.

53

2184-1267D12

HOSE PF3/8-2650L

desc: TUYAU FLEXIBLE

1шт.

54

2184-1267D12

HOSE PF3/8-2650L

desc: TUYAU FLEXIBLE

1шт.

55

2184-1267D12

HOSE PF3/8-2650L

desc: TUYAU FLEXIBLE

1шт.

56

2184-1267D12

HOSE PF3/8-2650L

desc: TUYAU FLEXIBLE

1шт.

77

2184-1046D74

HOSE PF3/8-400L

desc: TUYAU FLEXIBLE

1шт.

86

2184-1046D252

HOSE PF3/8-690L

desc: TUYAU FLEXIBLE

1шт.

87

2184-1045D198

HOSE PF3/8-830L

desc: TUYAU FLEXIBLE

1шт.

92

2184-1046D234

HOSE PF3/8-780L

desc: TUYAU FLEXIBLE

1шт.

93

2184-1045D252

HOSE PF3/8-690L

desc: TUYAU FLEXIBLE

1шт.

119

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

143

181-00144D5

ADAPTER;ORIFICE

desc: RACCORD ADAPTATEUR

2шт.

144

2181-1951D49

TEE PFO3/8-2PF3/8

desc: TE

2шт.

146

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

2шт.
