Запчасти Doosan Daewoo PILOT PIPING(3-1) BODY PARTS

-

400-00736

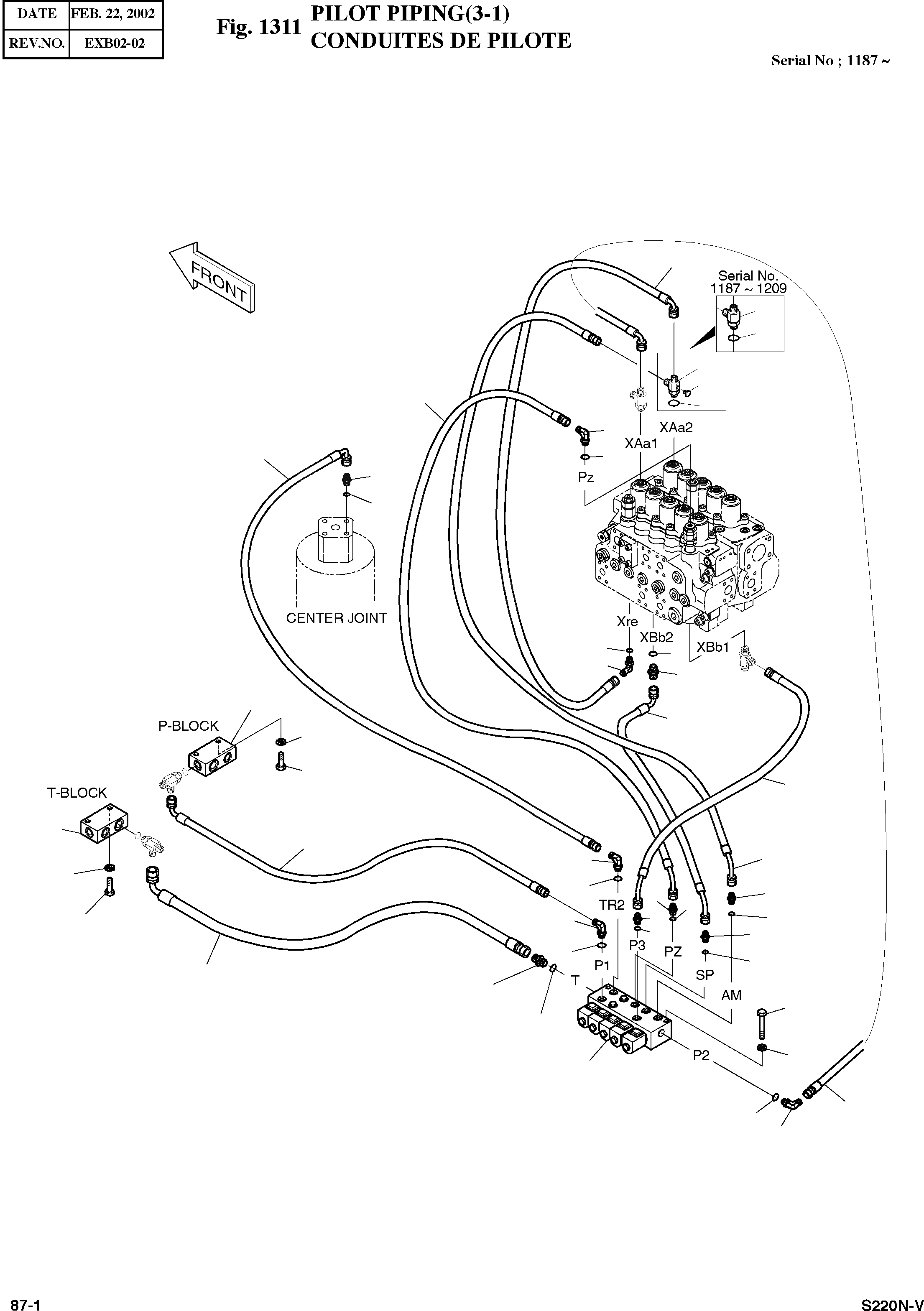

PILOT PIPING

SERIAL: 1187

-2шт.

7

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

11

426-00082

VALVE;SOLENOID

desc: VANNE

1шт.

12

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

2шт.

16

2423-1470

BLOCK

desc: BLOC

2шт.

17

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

4шт.

23

2181-1702D56

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

7шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

5шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

3шт.

69

2184-1046D169

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.

71

2184-1036D40

HOSE PF3/8-1550L

desc: TUYAU FLEXIBLE

1шт.

73

2184-1060D202

HOSE PF1/4-950L

desc: TUYAU FLEXIBLE

1шт.

74

2184-1062D82

HOSE PF3/8-900L

desc: TUYAU FLEXIBLE

1шт.

76

2184-1046D196

HOSE PF1/4-1550L

desc: TUYAU FLEXIBLE

1шт.

88

2184-1060D181

HOSE PF3/8-1000L

desc: TUYAU FLEXIBLE

1шт.

91

2184-1060D117

HOSE PF3/8-1350L

desc: TUYAU FLEXIBLE

1шт.

114

2184-1046D212

HOSE PF3/8-1200L

desc: TUYAU FLEXIBLE

1шт.

133

2181-2375D11

TEE PFO3/8-PF3/8-PF1/4

SERIAL: 1187-1209

1шт.

134

2181-1702D55

ELBOW PFO3/8-PF3/8

desc: COUDE

1шт.

135

2184-1046D83

HOSE PF1/4-830L

desc: TUYAU FLEXIBLE

1шт.

147

2181-2047A

PLUG M10X1.0

SERIAL: 1210

1шт.

148

DS2462002

TEE PFO3/8-PF3/8-PF1/4

SERIAL: 1210

1шт.
