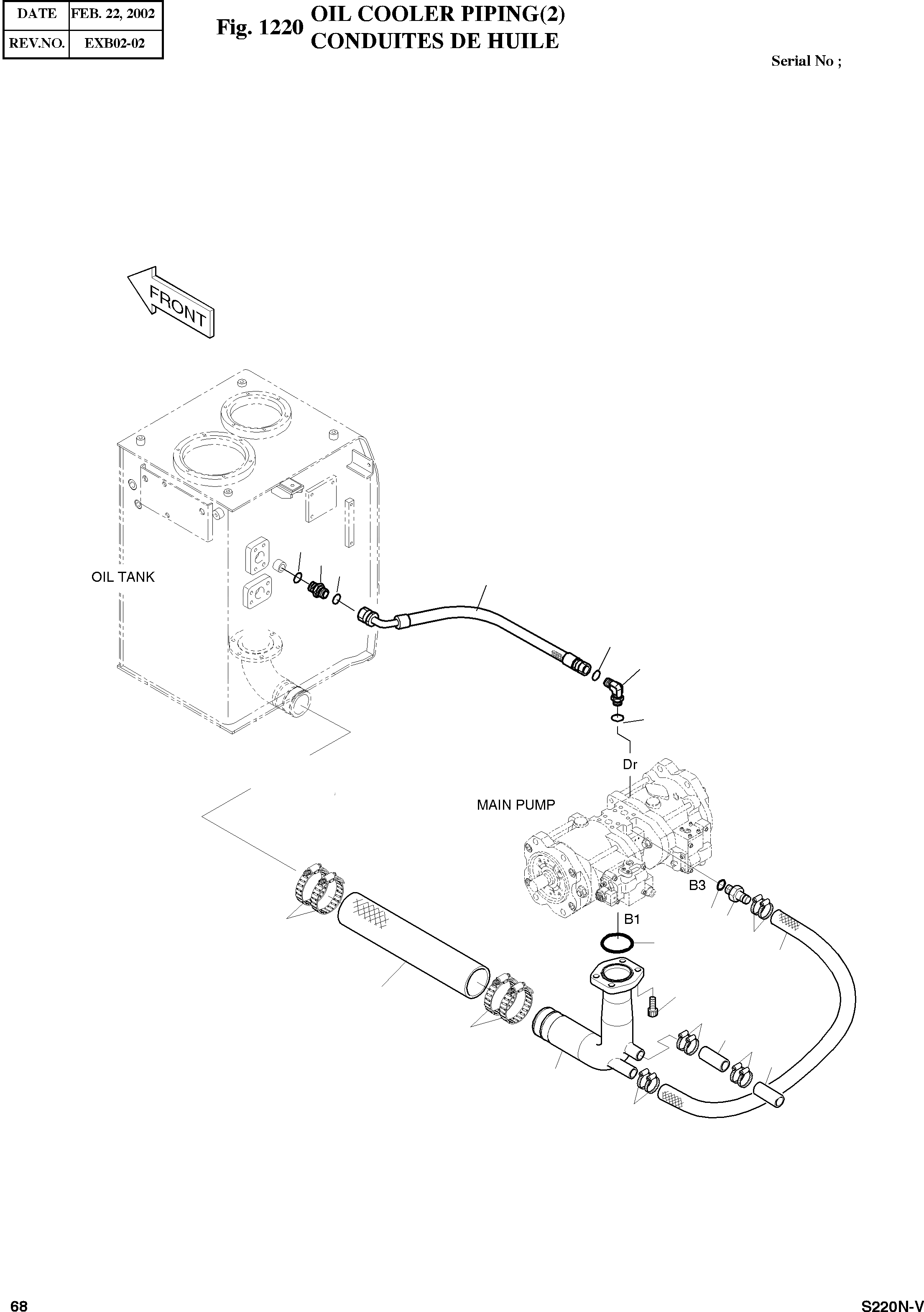

Запчасти Doosan Daewoo OIL COOLER PIPING(2) BODY PARTS

-

2400-2061A

PIPING;OIL COOLER

SC: D

-2шт.

1

2140-1454A

PIPE;SUCTION

SERIAL: 1001-1062

1шт.

1

2140-1454B

PIPE;SUCTION

SERIAL: 1063-1136

1шт.

1

140-00719

PIPE;SUCTION

SERIAL: 1137

1шт.

9

2185-1002D112

HOSE;SUCTION PF3-500L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1212D12

HOSE 550L

desc: TUYAU FLEXIBLE

1шт.

13

2185-1002D106

HOSE 1000L

desc: TUYAU FLEXIBLE

1шт.

14

S8030121

O-RING

desc: JOINT TORIQUE

2шт.

15

S8000241

O-RING P24

desc: JOINT TORIQUE

2шт.

17

2180-1026D31

O-RING

desc: JOINT TORIQUE

1шт.

21

2181-2693A

ADAPTER PFO3/4XPF1

desc: RACCORD ADAPTATEUR

1шт.

23

2181-2294D2

ELBOW PFO3/4XUNF13/16

desc: COUDE

1шт.

24

2181-2627D1

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

33

S2215361

BOLT;SOCKET M12X1.75X35

SERIAL: 1001-1238

4шт.

33

S2215366

BOLT;SOCKET M12X1.75X35

SERIAL: 1239

4шт.

42

S8450095

CLAMP;HOSE

desc: COLLIER

4шт.

44

S8450035

CLAMP;HOSE

desc: COLLIER

8шт.

52

S8000231

O-RING P23

desc: JOINT TORIQUE

1шт.

48

2182-1815

PIPE

desc: TUYAU

1шт.

53

2185-1002D87

HOSE 125L

desc: TUYAU FLEXIBLE

1шт.
