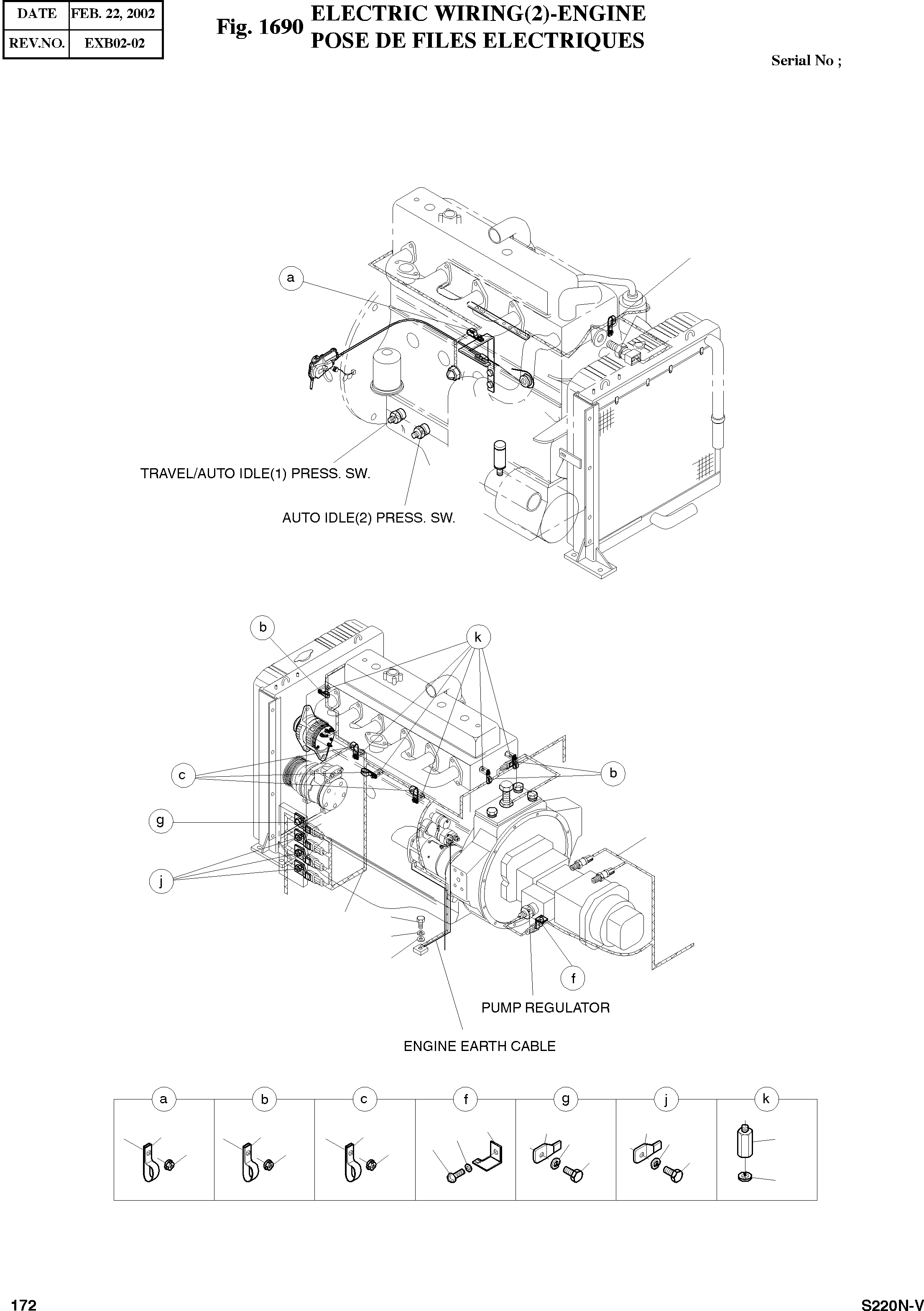

Запчасти Doosan Daewoo ELECTRIC WIRING(2)-ENGINE BODY PARTS

-

2500-1249

ELECTRIC PARTS

SC: D

-2шт.

3

2530-1608

HARNESS;ENGINE

SERIAL: 1001-1039

1шт.

3

2530-1608A

HARNESS;ENGINE

SERIAL: 1040-1196

1шт.

3

2530-1608B

HARNESS;ENGINE

SERIAL: 1197

1шт.

15

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

1шт.

16

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

1шт.

17

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

1шт.

18

2195-3500

BRACKET;HOUSING

desc: SUPPORT

1шт.

19

S3450953

SCREW M6X1.0X12

desc: VIS

1шт.

20

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

1шт.

21

2197-1660

BRACKET;HOUSING 15W

desc: SUPPORT

1шт.

22

2197-1661

BRACKET;HOUSING 9W

desc: SUPPORT

3шт.

23

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

4шт.

24

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

25

2120-2151

BOLT;STUD

desc: GOUJON

6шт.

26

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

6шт.

27

2124-1509D1

CLIP D12/M8

desc: ATTACHE

2шт.

28

2124-1509D2

CLIP D18/M8

desc: ATTACHE

3шт.

29

2124-1509D3

CLIP D24/M8

desc: ATTACHE

3шт.

32

2121-1305

NUT M8X1.25

desc: ECROU

7шт.

36

2530-1679

HARNESS;PRESS. SENSOR

SERIAL: 1001-1026

1шт.
