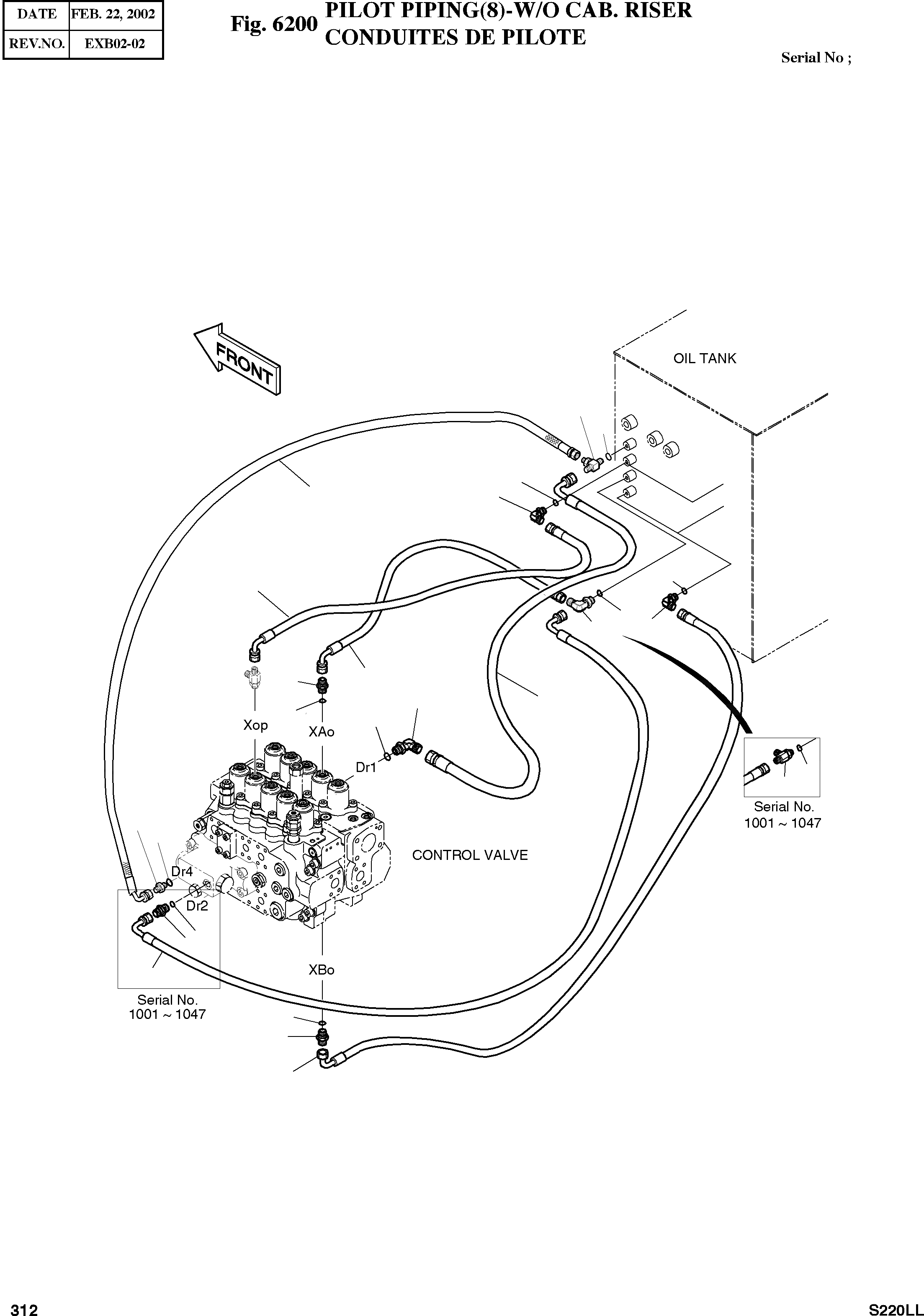

Запчасти Doosan Daewoo PILOT PIPING(8)-W/O CAB. RISER OPTION PARTS

-

2400-2096

PILOT PIPING

SC: D

-2шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

3шт.

26

S8000111

O-RING

SERIAL: 1001-1047

6шт.

26

S8000111

O-RING

SERIAL: 1048

5шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

30

2181-1126D36

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

32

2181-1702D4

ELBOW

SERIAL: 1001-1047

2шт.

32

2181-1702D4

ELBOW

SERIAL: 1048

3шт.

33

2181-1702D3

ELBOW

desc: RACCORD

1шт.

38

2181-1951D1

TEE

SERIAL: 1001-1047

1шт.

95

2184-1061D148

HOSE PF1/4-1350L

SERIAL: 1001-1047

1шт.

97

2184-1046D94

HOSE PF1/4-780L

desc: TUYAU FLEXIBLE

1шт.

101

2184-1046D81

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

102

2184-1046D115

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

1шт.

104

2184-1036D238

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

1шт.

128

2181-1126D75

ADAPTER

SERIAL: 1001-1047

1шт.

129

2181-1951D6

TEE PFO3/8XPF3/8XPF1/4

desc: TE

1шт.

130

2184-1046D147

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.
