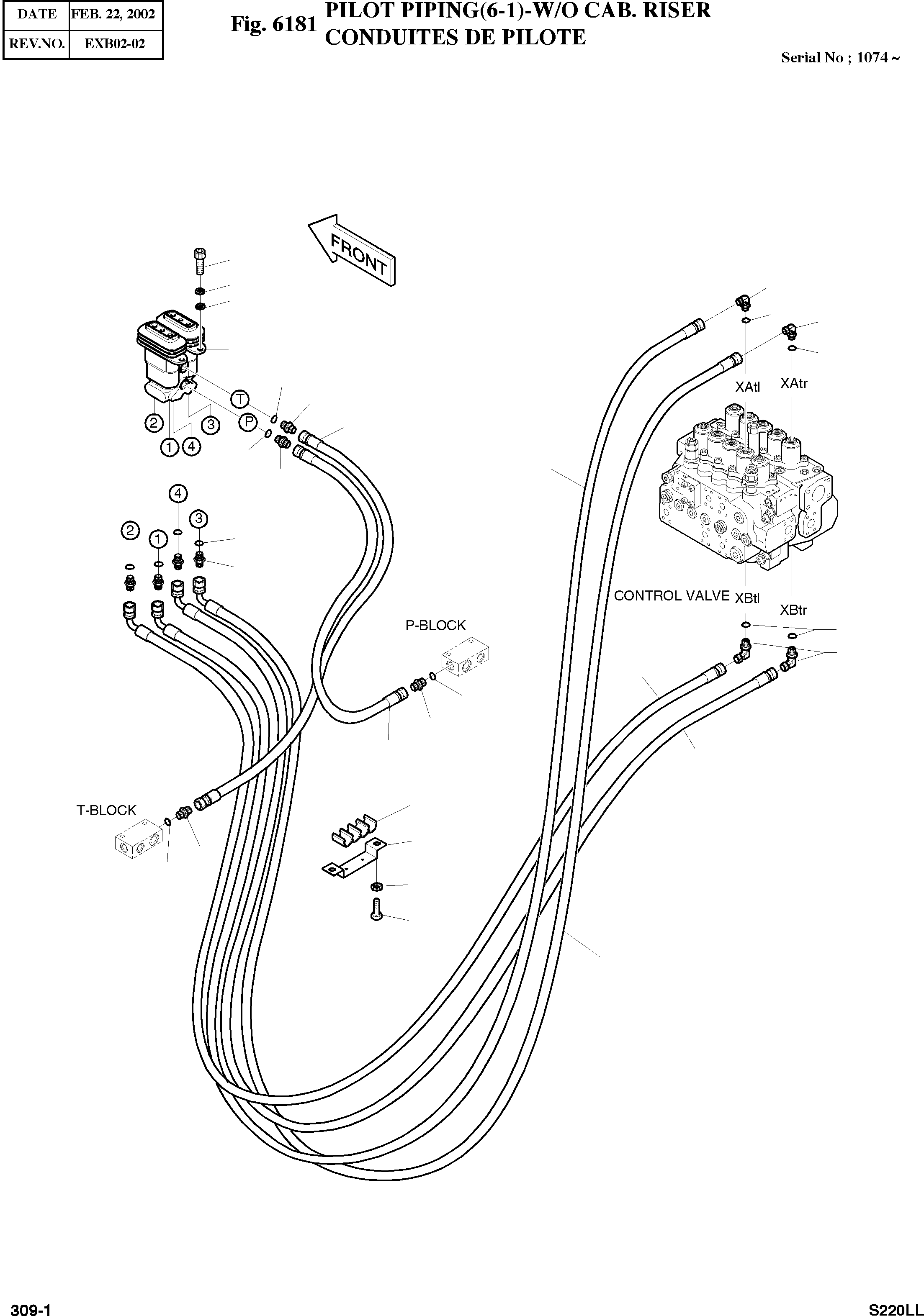

Запчасти Doosan Daewoo PILOT PIPING(6-1)-W/O CAB. RISER OPTION PARTS

-

2400-2096

PILOT PIPING

SC: D

-2шт.

5

2420-9501A

VALVE;PEDAL

desc: VANNE

1шт.

18

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

3шт.

19

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

3шт.

20

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

6шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

6шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

27

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

30

2181-1126D36

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

31

2181-1126D89

ADAPTER

desc: RACCORD

4шт.

34

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE EN S

4шт.

45

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

63

2184-1045D98

HOSE PF1/4-380L

desc: TUYAU FLEXIBLE

1шт.

64

2184-1045D98

HOSE PF1/4-380L

desc: TUYAU FLEXIBLE

1шт.

65

2184-1046D228

HOSE PF1/4-3250L

desc: TUYAU FLEXIBLE

1шт.

66

2184-1046D230

HOSE PF1/4-3050L

desc: TUYAU FLEXIBLE

1шт.

67

2184-1046D229

HOSE PF1/4-3400L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1046D274

HOSE PF1/4-3200L

desc: TUYAU FLEXIBLE

1шт.

115

2471-1133

FILTER;ADAPTER

desc: RACCORD

1шт.

125

S2212061

BOLT;SOCKET M10X1.5X25

desc: BOULON A 6 PANS CREUX

4шт.

126

S5110601

WASHER;SPRING

SERIAL: 1074-1081

4шт.

126

S5110603

WASHER;SPRING

SERIAL: 1081

4шт.

140

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.
