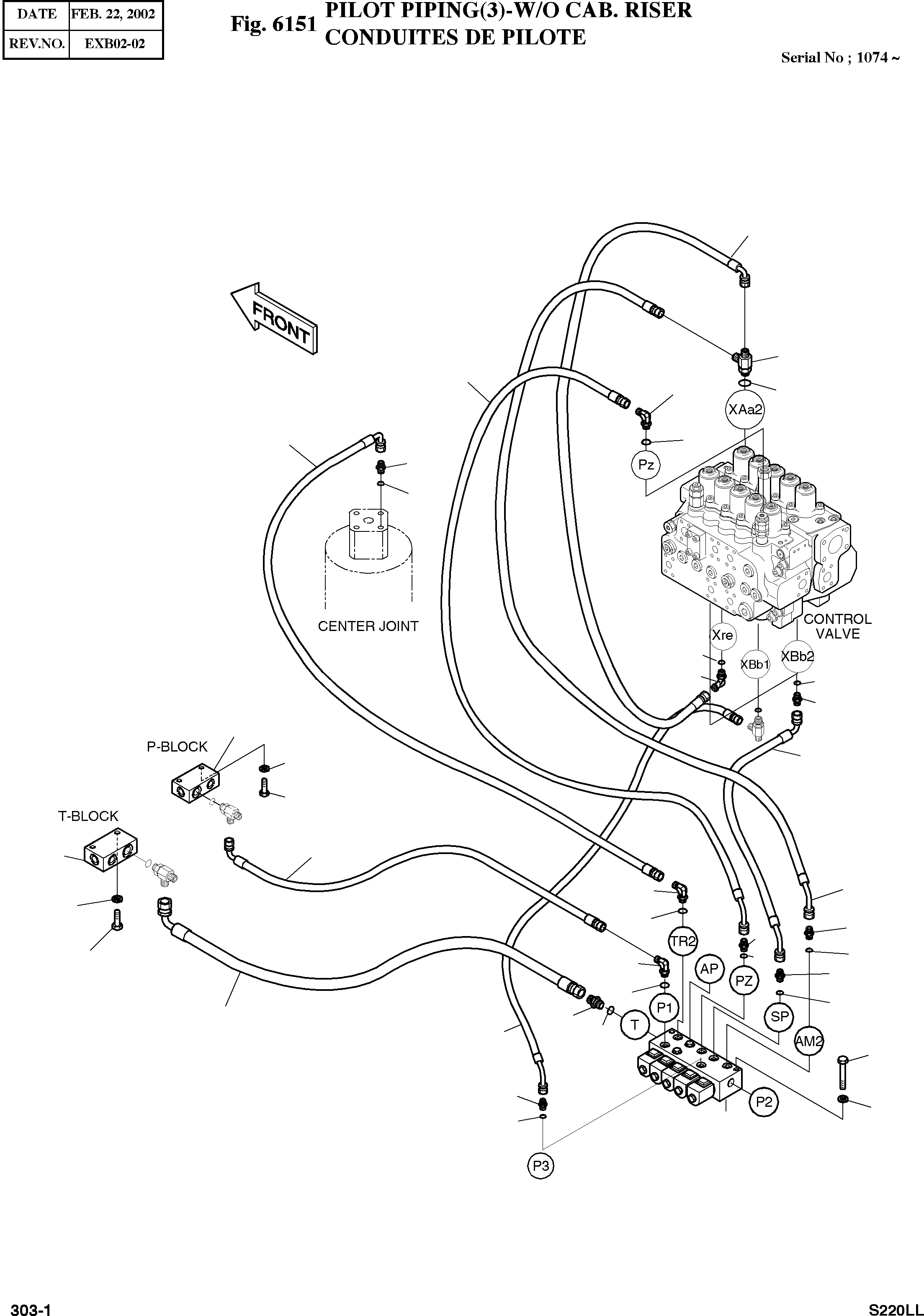

Запчасти Doosan Daewoo PILOT PIPING(3-1)-W/O CAB. RISER OPTION PARTS

-

2400-2096

PILOT PIPING

SC: D

-2шт.

7

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

11

426-00082

VALVE;SOLENOID

desc: VANNE

1шт.

12

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

2шт.

15

2181-1126D27

ADAPTER PFO3/8-PF3/8

desc: ADAPTEUR

1шт.

16

2423-1470

BLOCK

desc: BLOC

2шт.

17

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

4шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

6шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

27

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

28

2181-1126D7

ADAPTER

desc: RACCORD

3шт.

32

2181-1702D4

ELBOW

desc: COUDE

4шт.

69

2184-1046D196

HOSE PF1/4-1550L

desc: TUYAU FLEXIBLE

1шт.

71

2184-1036D40

HOSE PF3/8-1550L

desc: TUYAU FLEXIBLE

1шт.

73

2184-1060D52

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

74

2184-1062D82

HOSE PF3/8-900L

desc: TUYAU FLEXIBLE

1шт.

76

2184-1046D120

HOSE PF1/4-1950L

desc: TUYAU FLEXIBLE

1шт.

88

2184-1060D220

HOSE PF3/8-1100L

desc: TUYAU FLEXIBLE

1шт.

91

2184-1060D220

HOSE PF3/8-1100L

desc: TUYAU FLEXIBLE

1шт.

131

2181-1951D6

TEE PFO3/8-PF3/8

desc: TE

1шт.

135

2184-1046D83

HOSE PF1/4-830L

desc: TUYAU FLEXIBLE

1шт.
