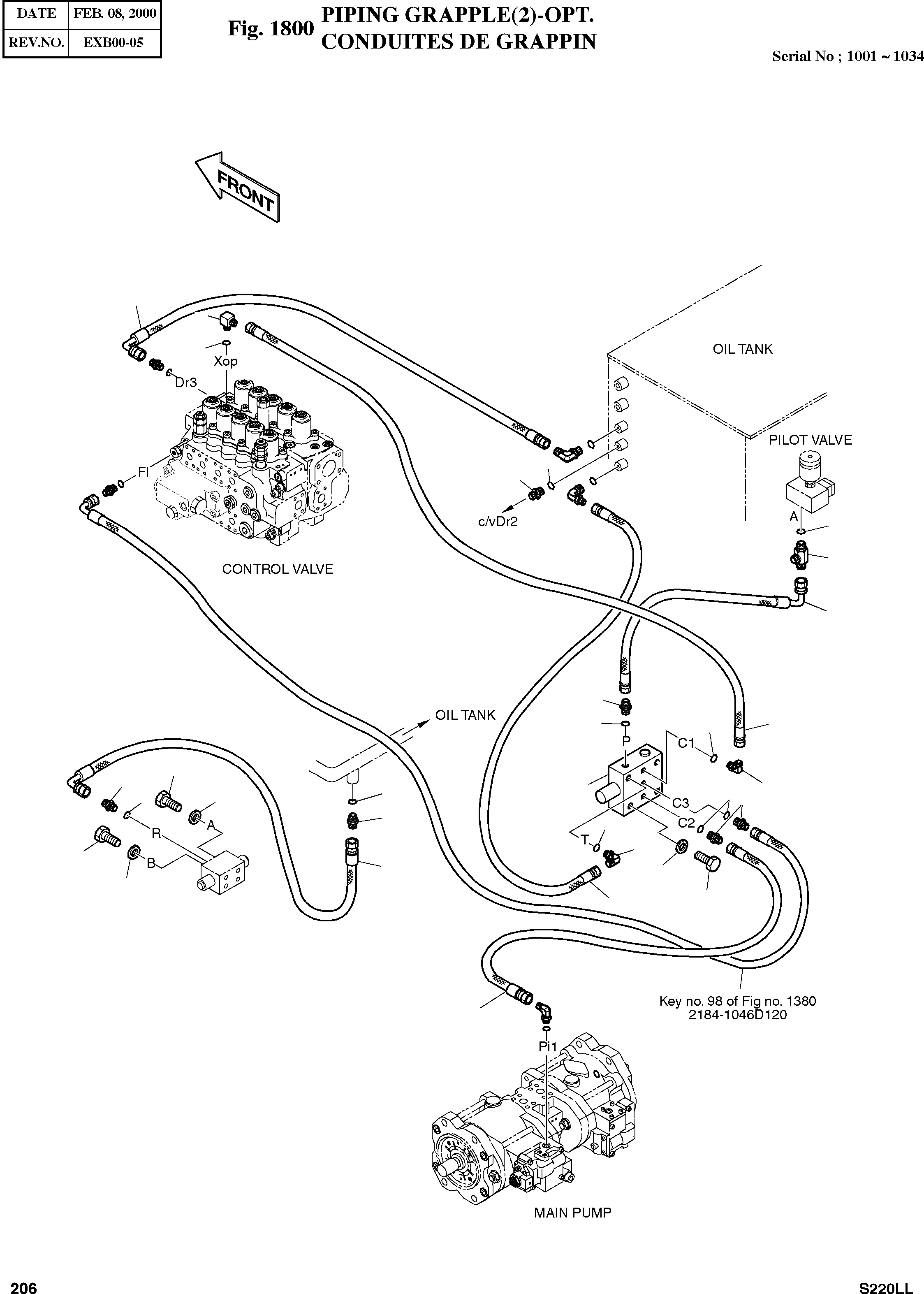

Запчасти Doosan Daewoo PIPING GRAPPLE(2)-OPT BODY PARTS

-

2400-2029A

PIPING;GRAPPLE-OPT

SERIAL: 1001-1034

-2шт.

1

2420-9227A

BREAKER VALVE

desc: SOUPAPE A SOLENOIDE

1шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

4

2181-1126D14

ADAPTER PFO1/4XPF1/4

desc: RACCORD ADAPTATEUR

4шт.

5

S8000111

O-RING P11

desc: JOINT TORIQUE

6шт.

6

2181-1702D4

ELBOW PFO1/4XPF1/4

desc: COUDE

2шт.

7

2181-1951D8

TEE PFO1/2XPF1/2XPF1/4

desc: TE

1шт.

8

S8000181

O-RING P18

desc: JOINT TORIQUE

1шт.

9

S8000141

O-RING P14

desc: JOINT TORIQUE

1шт.

11

2181-1702D10

ELBOW PFO3/8XPF1/4

desc: COUDE

1шт.

21

2181-1126D100

ADAPTER PFO1XPF1/2

desc: RACCORD ADAPTATEUR

2шт.

22

S8000291

O-RING P29

desc: JOINT TORIQUE

2шт.

23

S8000241

O-RING P24

desc: JOINT TORIQUE

2шт.

25

2181-2633A

PLUG

desc: BOUCHON

2шт.

32

2184-1045D55

HOSE PF1/4-990L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1045D176

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

34

2184-1046D195

HOSE PF1/4-510L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1045D88

HOSE PF1/4-1050L

desc: TUYAU FLEXIBLE

1шт.

44

2184-1046D131

HOSE PF1/4-560L

desc: TUYAU FLEXIBLE

1шт.

45

2184-1036D269

HOSE PF1/2-650L

desc: TUYAU FLEXIBLE

1шт.
