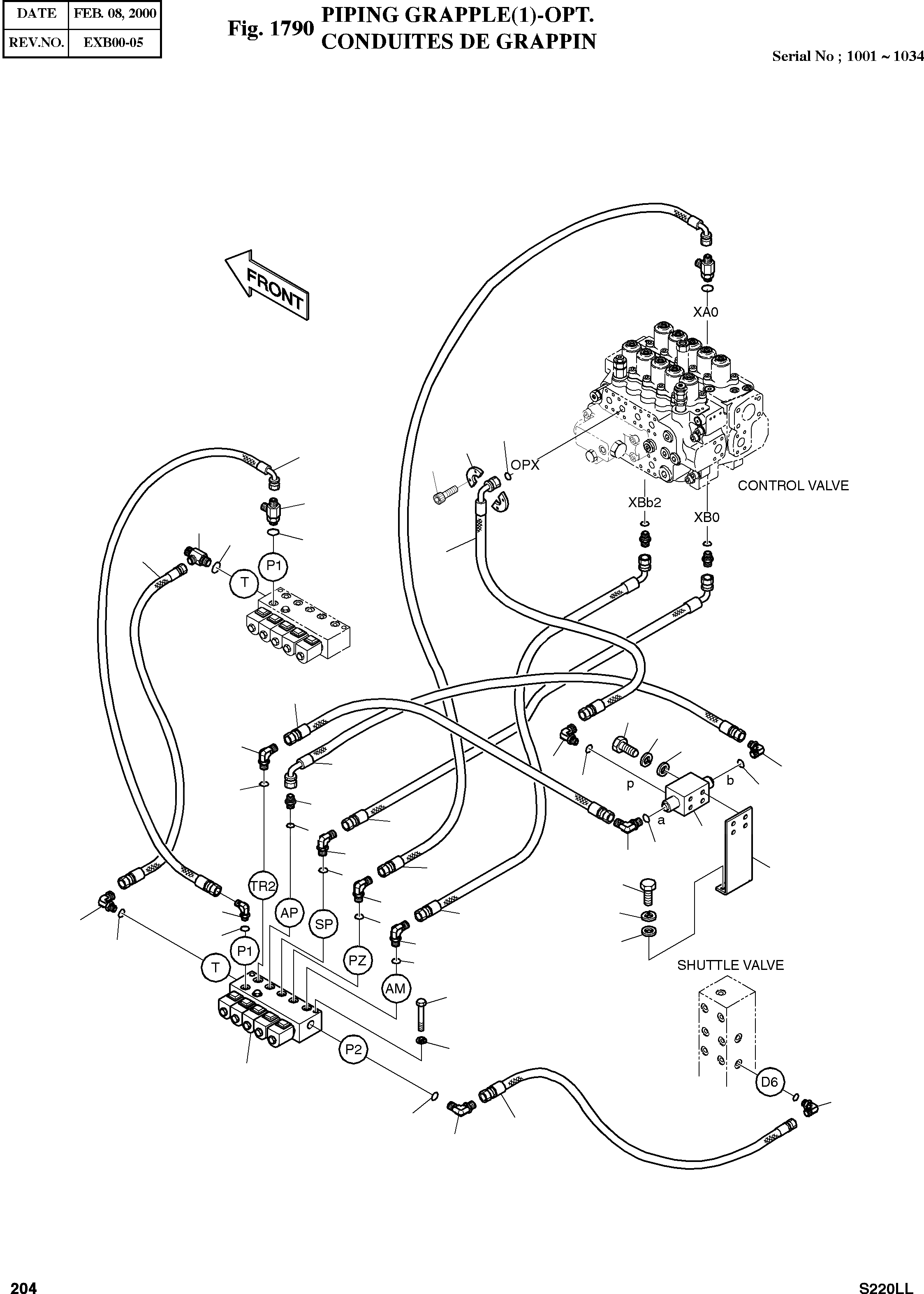

Запчасти Doosan Daewoo PIPING GRAPPLE(1)-OPT BODY PARTS

-

2400-2029A

PIPING;GRAPPLE-OPT

SERIAL: 1001-1034

-2шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

2шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

5шт.

4

2181-1126D14

ADAPTER PFO1/4XPF1/4

desc: RACCORD ADAPTATEUR

1шт.

5

S8000111

O-RING P11

desc: JOINT TORIQUE

8шт.

6

2181-1702D4

ELBOW PFO1/4XPF1/4

desc: COUDE

6шт.

9

S8000141

O-RING P14

desc: JOINT TORIQUE

4шт.

10

S5010913

WASHER;PLAIN M16

desc: RONDELLE

2шт.

12

2181-1951D1

TEE PFO1/4XPF1/4XPF1/4

desc: TE

1шт.

13

2181-1951D16

TEE PFO3/8XPF3/8XPF3/8

desc: TE

1шт.

15

2181-1702D55

ELBOW;LONG PFO3/8XPF3/8

desc: COUDE

2шт.

16

2197-2245

BRACKET

desc: SUPPORT

1шт.

17

S0521361

BOLT M16X2.0X35

desc: BOULON A 6 PANS

2шт.

18

S5010613

WASHER M10

desc: RONDELLE

3шт.

19

2420-9365

VALVE;OPTION

desc: VANNE

1шт.

20

S0559253

BOLT M10X1.5X85

desc: BOULON A 6 PANS

3шт.

23

S8000241

O-RING P24

desc: JOINT TORIQUE

1шт.

24

2181-2419D5

ELBOW PFO3/4XPF3/4

desc: RACCORD

1шт.

26

S5102901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

2шт.

27

2180-1026D19

O-RING

desc: JOINT TORIQUE

1шт.

28

2181-9083

FLANGE;SPLIT

desc: FLASQUE

2шт.

29

S2212261

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

4шт.

30

2426-9040A

VALVE;SOLENOID

desc: VANNE

1шт.

31

2181-1702D5

ELBOW PFO3/8XPF3/8

desc: COUDE EN S

2шт.

36

2184-1046D57

HOSE PF1/4-430L

desc: TUYAU FLEXIBLE

1шт.

37

2184-1045D173

HOSE PF3/8-350L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1045D90

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

39

2184-1046D57

HOSE PF1/4-430L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1046D76

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

41

2184-1046D155

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

42

2184-1046D212

HOSE PF3/8-1200L

desc: TUYAU FLEXIBLE

1шт.

43

2184-1045D199

HOSE PF3/8-950L

desc: TUYAU FLEXIBLE

1шт.

46

2184-1097D13

HOSE PF3/4-1450L

desc: TUYAU FLEXIBLE

1шт.
