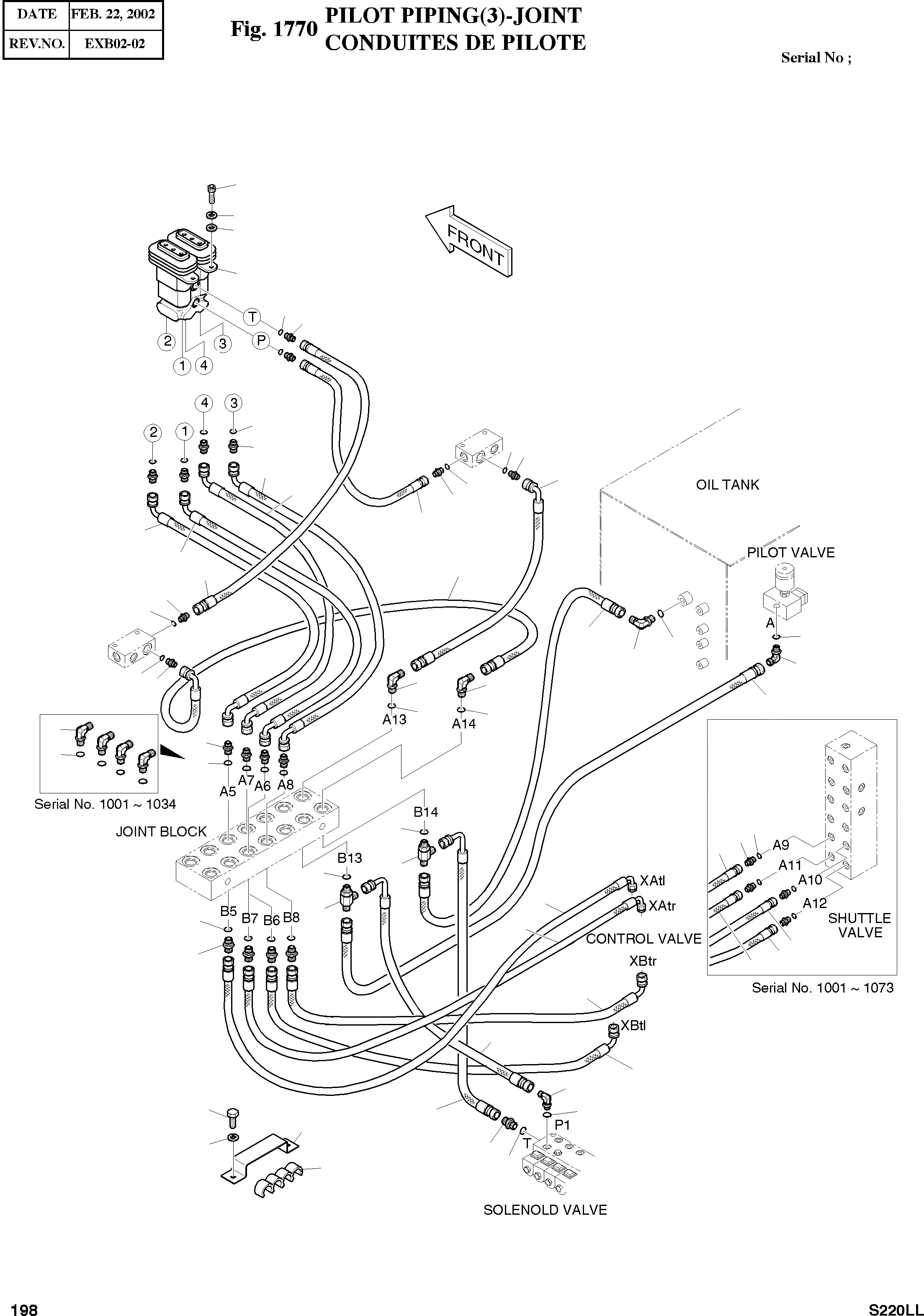

Запчасти Doosan Daewoo PILOT PIPING(3)-JOINT BODY PARTS

-

2400-2013A

PILOT PIPING;JOINT

SC: D

-2шт.

8

2420-9501A

VALVE;PEDAL

SERIAL: 1001-1050

1шт.

8

420-00030

VALVE;PEDAL

SERIAL: 1051

1шт.

9

S2212061

BOLT;SOCKET M10X1.5X25

SERIAL: 1001-1050

4шт.

9

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1051-1080

4шт.

9

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1081

4шт.

10

S5110601

WASHER;SPRING M10

SERIAL: 1001-1080

4шт.

10

S5110603

WASHER;SPRING M10

SERIAL: 1081

4шт.

11

S8000111

O-RING P11

desc: JOINT TORIQUE

7шт.

12

S8000141

O-RING P14

SERIAL: 1001-1073

15шт.

12

S8000141

O-RING P14

SERIAL: 1074

11шт.

13

S8000181

O-RING P18

desc: JOINT TORIQUE

8шт.

14

2181-1126D89

ADAPTER PFO1/4XPF3/8

desc: RACCORD

4шт.

16

2471-1135

FILTER;ADAPTER

desc: FILTRE

1шт.

17

2181-1126D36

ADAPTER PFO3/8XPF1/4

desc: RACCORD

2шт.

19

2181-1126D7

ADAPTER PFO3/8XPF3/8

SERIAL: 1001-1034

9шт.

19

2181-1126D7

ADAPTER PFO3/8XPF3/8

SERIAL: 1035-1073

13шт.

19

2181-1126D7

ADAPTER PFO3/8XPF3/8

SERIAL: 1074

9шт.

20

2181-1126D6

ADAPTER PFO1/2XPF1/2

desc: RACCORD ADAPTATEUR

1шт.

21

2181-1126D14

ADAPTER PFO1/4XPF1/4

desc: RACCORD ADAPTATEUR

2шт.

23

2181-2419D2

ELBOW PFO3/8XPF3/8

SERIAL: 1001-1034

4шт.

24

2181-2419D3

ELBOW PFO1/2XPF1/2

desc: COUDE

3шт.

25

2181-1951D19

TEE PFO1/2XPF1/2XPF1/4

desc: TE

1шт.

30

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

2шт.

31

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

2шт.

32

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

4шт.

33

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

34

2181-1951D13

TEE PFO1/2XPF1/2XPF3/8

desc: TE

1шт.

35

2181-1702D4

ELBOW PFO1/4XPF1/4

desc: COUDE

1шт.

36

2181-1702D2

ELBOW PFO1/2XPF1/2

desc: COUDE

1шт.

52

2184-1045D173

HOSE PF3/8-350L

SERIAL: 1001-1034

1шт.

52

2184-1060D105

HOSE PF3/8-370L

SERIAL: 1035

1шт.

53

2184-1045D173

HOSE PF3/8-350L

SERIAL: 1001-1034

1шт.

53

2184-1060D105

HOSE PF3/8-370L

SERIAL: 1035

1шт.

54

2184-1045D173

HOSE PF3/8-350L

SERIAL: 1001-1034

1шт.

54

2184-1060D105

HOSE PF3/8-370L

SERIAL: 1035

1шт.

55

2184-1045D173

HOSE PF3/8-350L

SERIAL: 1001-1034

1шт.

55

2184-1060D105

HOSE PF3/8-370L

SERIAL: 1035

1шт.

56

2184-1045D98

HOSE PF1/4-380L

SERIAL: 1001-1027

1шт.

56

2184-1045D174

HOSE PF1/4-330L

SERIAL: 1028

1шт.

57

2184-1045D98

HOSE PF1/4-380L

desc: TUYAU FLEXIBLE

1шт.

58

2184-1036D19

HOSE PF1/2-750L

desc: TUYAU FLEXIBLE

1шт.

59

2184-1046D48

HOSE PF1/2-850L

desc: TUYAU FLEXIBLE

1шт.

64

2184-1045D229

HOSE PF3/8-3600L

SERIAL: 1001-1073

1шт.

64

2184-1046D298

HOSE PF3/8-4300L

SERIAL: 1074

1шт.

65

2184-1045D229

HOSE PF3/8-3600L

SERIAL: 1001-1073

1шт.

65

2184-1046D298

HOSE PF3/8-4300L

SERIAL: 1074

1шт.

66

2184-1045D229

HOSE PF3/8-3600L

SERIAL: 1001-1073

1шт.

66

2184-1046D298

HOSE PF3/8-4300L

SERIAL: 1074

1шт.

67

2184-1045D229

HOSE PF3/8-3600L

SERIAL: 1001-1073

1шт.

67

2184-1046D298

HOSE PF3/8-4300L

SERIAL: 1074

1шт.

72

2184-1046D78

HOSE PF1/4-3200L

SERIAL: 1001-1020

1шт.

72

2184-1046D86

HOSE PF1/4-3100L

SERIAL: 1021

1шт.

73

2184-1036D217

HOSE PF3/8-3200L

SERIAL: 1001-1020

1шт.

73

2184-1036D279

HOSE PF3/8-3050L

SERIAL: 1021

1шт.

74

2184-1045D225

HOSE PF1/2-5100L

desc: TUYAU FLEXIBLE

1шт.

75

2184-1026D371

HOSE PF1/2-4500L

desc: TUYAU FLEXIBLE

1шт.

78

S5010613

WASHER;PLAIN M10

SERIAL: 1051

4шт.
