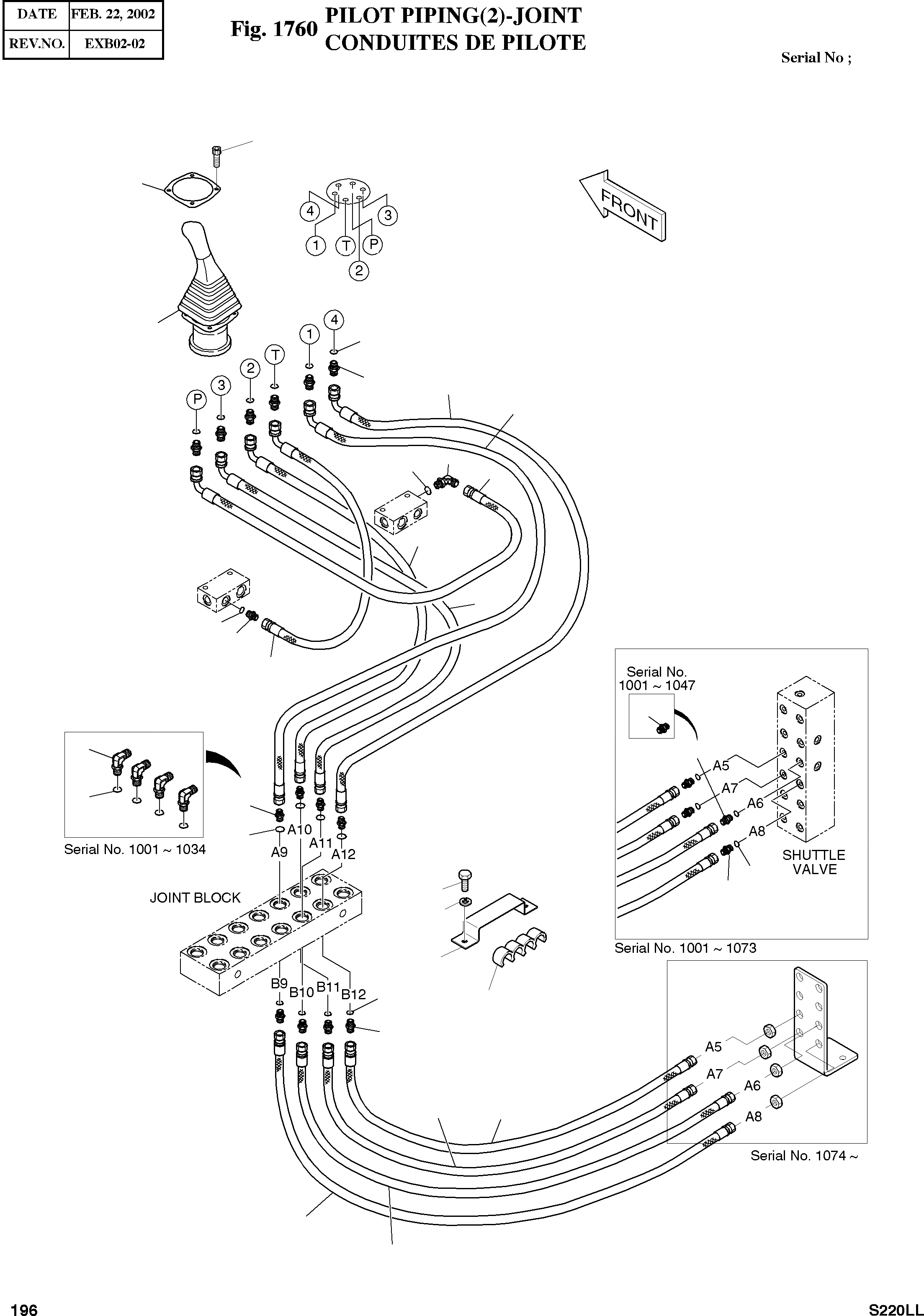

Запчасти Doosan Daewoo PILOT PIPING(2)-JOINT BODY PARTS

-

2400-2013A

PILOT PIPING;JOINT

SC: D

-2шт.

2

2420-9587

REMOTE CONTROL V/V(RH)

SERIAL: 1001-1034

1шт.

2

420-00015

REMOTE CONTROL V/V(RH)

SERIAL: 1035-1069

1шт.

2

420-00015A

REMOTE CONTROL V/V(RH)

SERIAL: 1070

1шт.

3

S2205061

BOLT M6X1.0X25

SERIAL: 1001-1073

4шт.

3

S2205066

BOLT M6X1.0X25

SERIAL: 1074

4шт.

4

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

11

S8000111

O-RING P11

desc: JOINT TORIQUE

6шт.

12

S8000141

O-RING P14

SERIAL: 1001-1073

14шт.

12

S8000141

O-RING P14

SERIAL: 1074

10шт.

14

2181-1126D89

ADAPTER PFO1/4XPF3/8

desc: RACCORD

6шт.

18

2181-1702D5

ELBOW PFO3/8XPF3/8

desc: COUDE EN S

1шт.

19

2181-1126D7

ADAPTER PFO3/8XPF3/8

SERIAL: 1001-1034

9шт.

19

2181-1126D7

ADAPTER PFO3/8XPF3/8

SERIAL: 1035-1047

13шт.

19

2181-1126D7

ADAPTER PFO3/8XPF3/8

SERIAL: 1048-1073

12шт.

19

2181-1126D7

ADAPTER PFO3/8XPF3/8

SERIAL: 1074

9шт.

23

2181-2419D2

ELBOW PFO3/8XPF3/8

SERIAL: 1001-1034

4шт.

30

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

2шт.

31

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

2шт.

32

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

4шт.

33

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

46

2184-1060D148

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

47

2184-1060D148

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

48

2184-1060D148

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

49

2184-1060D148

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

50

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

51

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1045D229

HOSE PF3/8-3600L

desc: TUYAU FLEXIBLE

1шт.

69

2184-1045D229

HOSE PF3/8-3600L

desc: TUYAU FLEXIBLE

1шт.

70

2184-1045D229

HOSE PF3/8-3600L

desc: TUYAU FLEXIBLE

1шт.

71

2184-1045D229

HOSE PF3/8-3600L

desc: TUYAU FLEXIBLE

1шт.

76

181-00144D8

ADAPTER;ORIFICE

SERIAL: 1048-1073

1шт.
