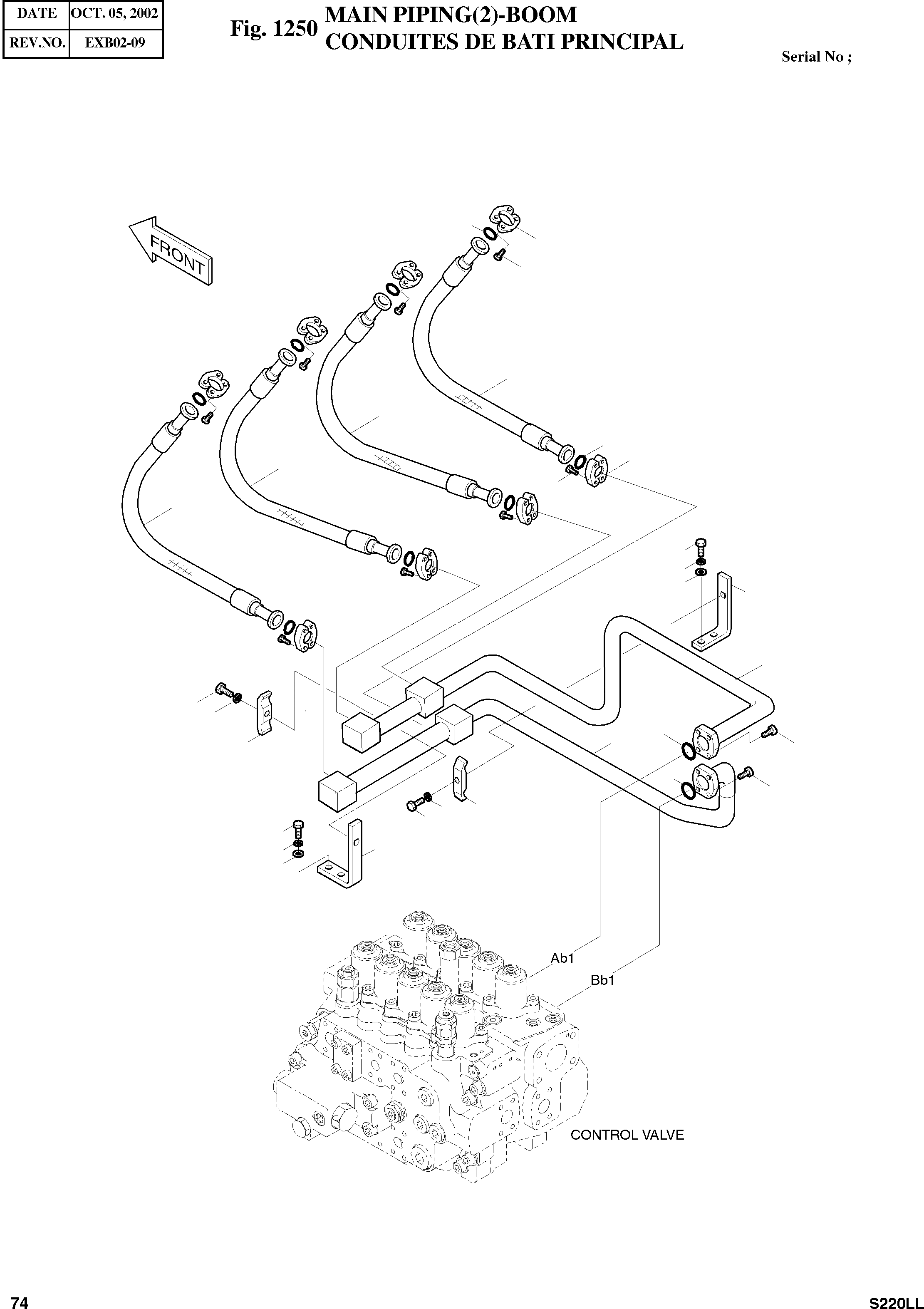

Запчасти Doosan Daewoo MAIN PIPING(2)-BOOM BODY PARTS

-

2400-1759A

MAIN PIPING

SERIAL: 1001-1009

-2шт.

-

2400-1759B

MAIN PIPING

SERIAL: 1010-1038

-2шт.

-

400-00242

MAIN PIPING

SERIAL: 1039

-2шт.

2

2140-1203

PIPE

SERIAL: 1001-1077

1шт.

2

2140-1203A

PIPE

SERIAL: 1078

1шт.

3

2140-1204

PIPE

SERIAL: 1001-1077

1шт.

3

2140-1204A

PIPE

SERIAL: 1078

1шт.

17

2197-1410B

BRACKET

desc: SUPPORT

1шт.

18

2195-3525C

BRACKET

desc: SUPPORT

1шт.

19

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

4шт.

20

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

6шт.

24

S0561053

BOLT 12X1.75X65

desc: BOULON A 6 PANS

2шт.

25

2124-1025D5

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

27

S2212761

BOLT;SOCKET M10X1.5X55

SERIAL: 1001-1080

4шт.

27

S2212766

BOLT;SOCKET M10X1.5X55

SERIAL: 1081

4шт.

28

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1001-1080

16шт.

28

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1081

16шт.

29

2180-1026D19

O-RING

desc: JOINT TORIQUE

2шт.

31

S2212061

BOLT;SOCKET M10X1.5X25

SERIAL: 1001-1080

16шт.

31

S2212066

BOLT;SOCKET M10X1.5X25

SERIAL: 1081

16шт.

32

S2212361

BOLT;SOCKET M10X1.5X35

SERIAL: 1001-1080

4шт.

32

S2212366

BOLT;SOCKET M10X1.5X35

SERIAL: 1081

4шт.

33

2180-1026D2

O-RING

desc: JOINT TORIQUE

8шт.

34

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

16шт.

45

S5010713

WASHER;PLAIN M12

desc: RONDELLE

4шт.

46

2184-1081D116

HOSE

desc: TUYAU FLEXIBLE

2шт.

47

2184-1081D117

HOSE

desc: TUYAU FLEXIBLE

2шт.
