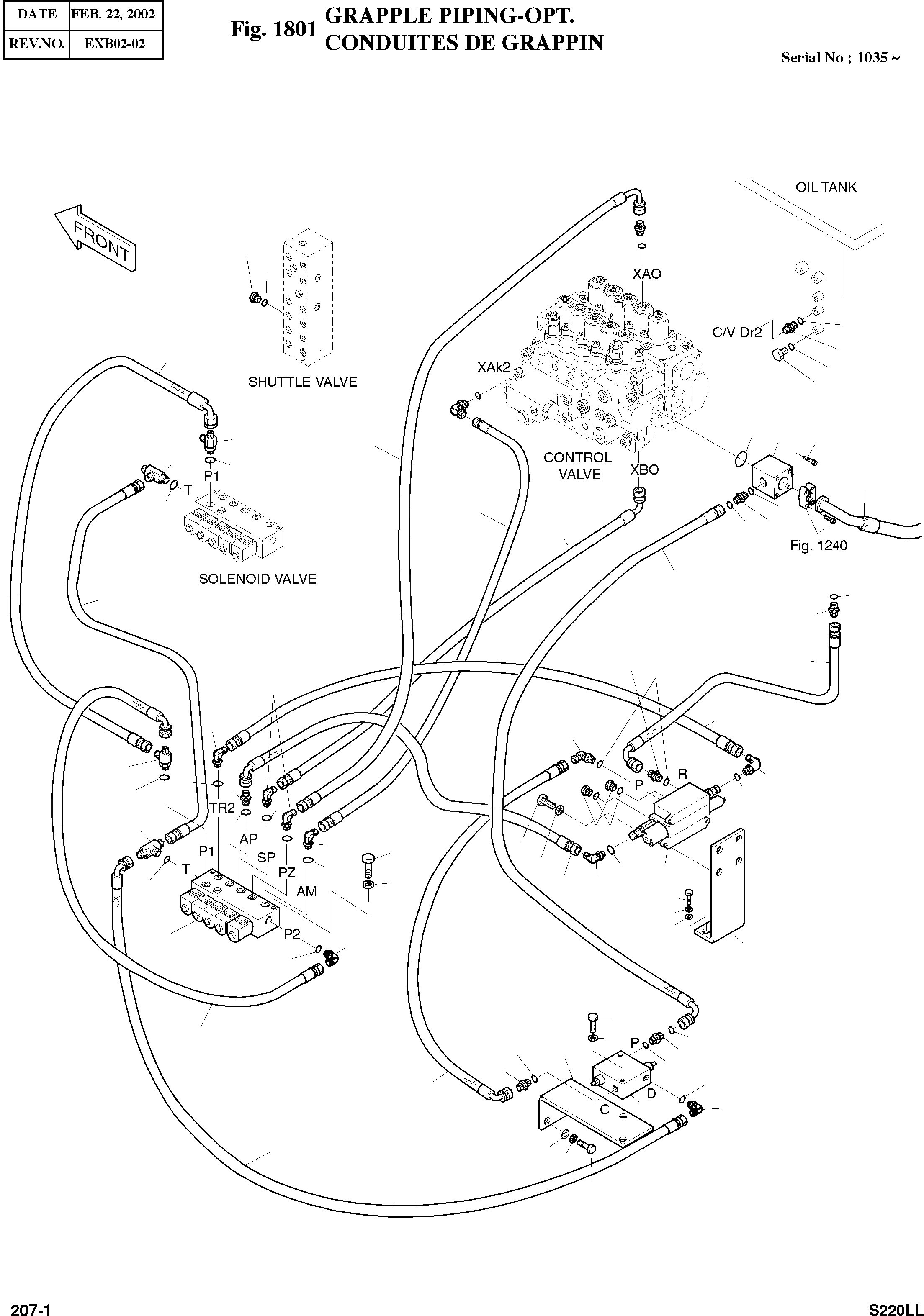

Запчасти Doosan Daewoo GRAPPLE PIPING-OPT BODY PARTS

-

400-00100

GRAPPLE PIPING

SERIAL: 1035

-2шт.

1

423-00010

BLOCK;VALVE

desc: BLOC DE VANNE

1шт.

2

S2213661

BOLT;SOCKET

SERIAL: 1035-1080

4шт.

2

S2213666

BOLT;SOCKET

SERIAL: 1081

4шт.

3

2180-1026D19

O-RING

desc: JOINT TORIQUE

1шт.

4

2181-1126D6

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

5

426-00028

VALVE;PACKAGE

desc: VANNE

1шт.

6

2184-1100D196

HOSE PF1-1130L

desc: TUYAU FLEXIBLE

1шт.

7

2426-6050A

VALVE;CONTROL

desc: DISTRIBUTEUR

1шт.

8

195-00083

BRACKET

desc: SUPPORT

1шт.

9

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

2шт.

10

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

11

S5010613

WASHER;PLAIN

desc: RONDELLE

2шт.

12

195-00084A

BRACKET

SERIAL: 1035-1047

1шт.

12

195-00084B

BRACKET

SERIAL: 1048

1шт.

13

S8000181

O-RING

desc: JOINT TORIQUE

5шт.

14

S8000141

O-RING

desc: JOINT TORIQUE

6шт.

15

S8000111

O-RING

desc: JOINT TORIQUE

12шт.

16

S0509053

BOLT

desc: BOULON A 6 PANS

3шт.

17

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

5шт.

18

S0556453

BOLT

desc: BOULON A 6 PANS

2шт.

19

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

20

2181-1702D4

ELBOW

desc: COUDE

6шт.

21

2181-1950D2

PLUG

desc: BOUCHON

2шт.

22

2181-1951D1

TEE

desc: TE

2шт.

23

2181-1951D16

TEE

desc: TE

1шт.

24

2181-1702D10

ELBOW

desc: COUDE

2шт.

25

S8000291

O-RING

desc: JOINT TORIQUE

1шт.

26

2181-2281D3

TEE

desc: TE

1шт.

27

2181-1950D1

PLUG

desc: BOUCHON

2шт.

28

S8030081

O-RING

desc: JOINT TORIQUE

2шт.

29

2181-4133D3

ADAPTER

desc: RACCORD

2шт.

30

2184-1212D29

HOSE PF1 3/16-1100L

desc: TUYAU FLEXIBLE

1шт.

31

2184-1036D43

HOSE PF1/2-550L

desc: TUYAU FLEXIBLE

1шт.

32

2184-1036D269

HOSE PF1/2-650L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1045D90

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

34

2184-1046D57

HOSE PF1/4-430L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1046D76

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

36

2184-1046D155

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

37

2184-1046D108

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1046D57

HOSE PF1/4-430L

desc: TUYAU FLEXIBLE

1шт.

39

2184-1045D173

HOSE PF1/4-350L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1046D126

HOSE PF1/4-450L

desc: TUYAU FLEXIBLE

1шт.

41

2184-1046D126

HOSE PF1/4-450L

desc: TUYAU FLEXIBLE

1шт.

42

2426-9040A

VALVE;SOLENOID

desc: VANNE

1шт.

43

S0558953

BOLT

desc: BOULON A 6 PANS

2шт.

44

2181-1126D100

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

45

S0521361

BOLT

SERIAL: 1035-1080

2шт.

45

S0521366

BOLT

SERIAL: 1081

2шт.

46

S5102901

WASHER;SPRING

SERIAL: 1035-1080

2шт.

46

S5102903

WASHER;SPRING

SERIAL: 1081

2шт.

47

S5010913

WASHER;PLAIN

desc: RONDELLE PLATE

2шт.

48

2181-1702D2

ELBOW

desc: COUDE

1шт.
