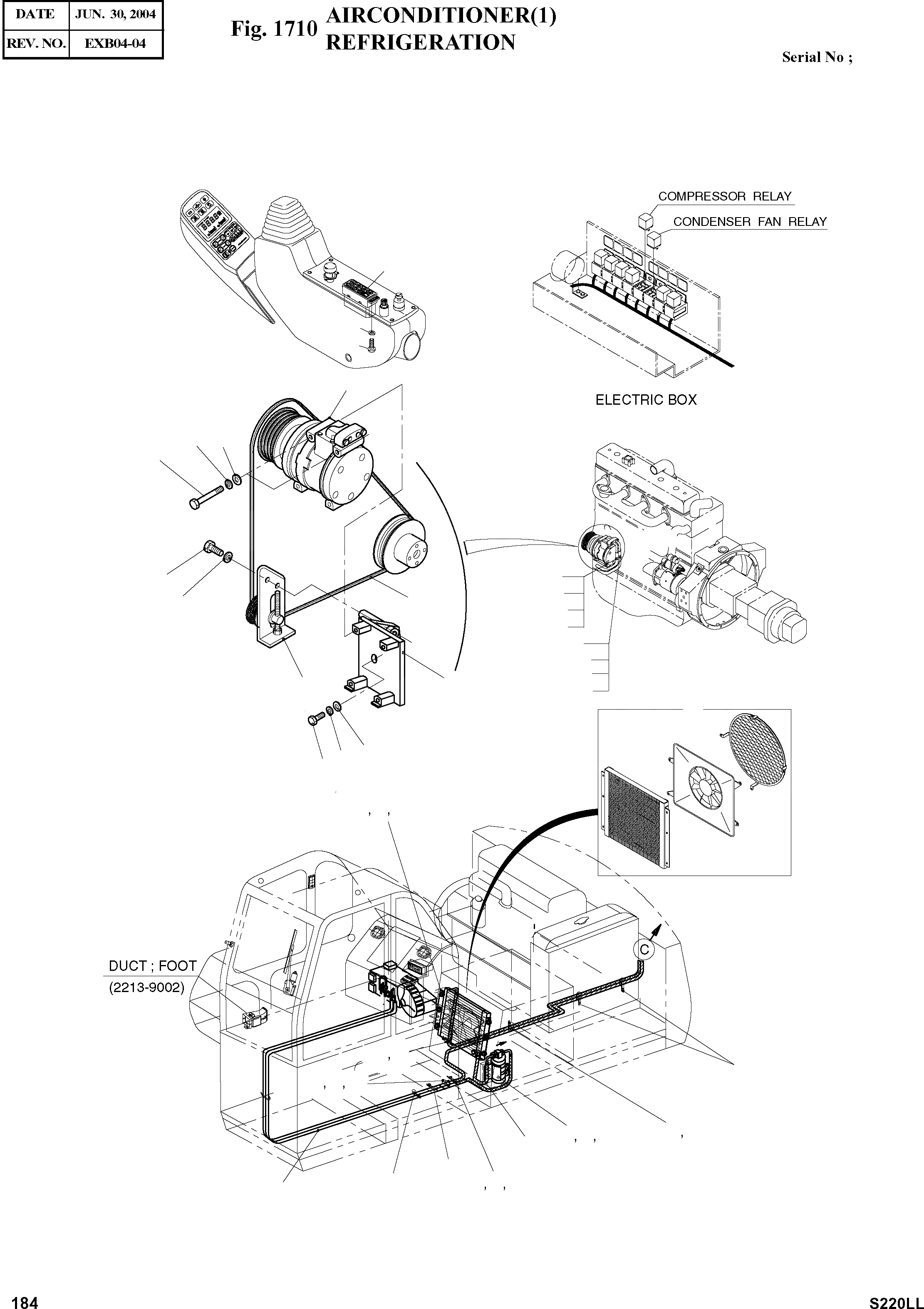

Запчасти Doosan Daewoo AIRCONDITIONER(1) BODY PARTS

-

2920-1094

COOLER & HEATER ASS'Y

SC: D

-2шт.

1

2543-9031

PANEL;AIRCON CONTROL

SERIAL: 1001-1027

1шт.

1

2543-9031A

PANEL;AIRCON CONTROL

SERIAL: 1028

1шт.

2

S3450583

SCREW M4X0.7X12

desc: VIS

4шт.

3

S5000113

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

4

2208-6013B

COMPRESSOR 10PA-15C

desc: COMPRESSEUR

1шт.

5

S0557553

BOLT M8X1.25X110

SERIAL: 1001-1080

4шт.

5

S0557153

BOLT M8X1.25X90

SERIAL: 1081

4шт.

6

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

7

S5010513

WASHER;PLAIN M8

desc: RONDELLE

4шт.

8

2197-1798B

BRACKET;COMPRESSOR

desc: SUPPORT

1шт.

9

S0712153

BOLT M10X1.25X28

desc: BOULON A 6 PANS

1шт.

10

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

1шт.

11

S5010613

WASHER;PLAIN M10

desc: RONDELLE

1шт.

12

2107-6006

PULLEY ASS'Y;IDLE

desc: POLLEIR

1шт.

13

S0759853

BOLT M10X1.25X115

desc: BOULON A 6 PANS

2шт.

14

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

15

2106-1019D10

V-BELT 4PK 990L

desc: COURROIE-V

1шт.

16

2185-1706

HOSE;DISCHARGE 2580L

desc: TUYAU FLEXIBLE

1шт.

16A

2180-6088

O-RING(COMPRESSOR)

desc: . JOINT TORIQUE

1шт.

16B

2180-6089

O-RING(CONDENSER)

desc: . JOINT TORIQUE

1шт.

16C

1.161-00018

CAP;CHECK PORT(H)

desc: . CHAPEAU

1шт.

17

2185-1748

HOSE;SUCTION 6700L

desc: TUYAU FLEXIBLE

1шт.

17A

2180-6086

O-RING(COMPRESSOR)

desc: . JOINT TORIQUE

1шт.

17B

2180-6087

O-RING(EVA)

desc: . JOINT TORIQUE

1шт.

17C

1.161-00019

CAP;CHECK PORT(L)

desc: . CHAPEAU

1шт.

18

2520-6004

CONDENSER ASS'Y

desc: CONDENSEUR

1шт.

18A

2520-6005

CONDENSER CORE ASS'Y

desc: . CONDENSEUR

1шт.

18B

2538-6018

FAN MOTOR ASS'Y

desc: . MOTEUR

1шт.

18C

2520-6006

NET;CONDENSER

desc: . WIRE

1шт.

19

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

6шт.

20

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

21

S5010613

WASHER;PLAIN

desc: RONDELLE

6шт.

22

2185-1697D2

HOSE;LIQUID(1)

desc: TUYAU FLEXIBLE

1шт.

22A

2180-6090

O-RING;LIQUID(1)

desc: . JOINT TORIQUE

2шт.

23

2185-1698D3

HOSE;LIQUID(2)

desc: TUYAU FLEXIBLE

1шт.

23A

2180-6090

O-RING;LIQUID(2)

desc: . JOINT TORIQUE

2шт.

24

2204-6039

RECEIVER DRIER

SERIAL: 1001-1020

1шт.

24

2204-6039A

RECEIVER DRIER

SERIAL: 1021

1шт.

25

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

4шт.

26

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

37

2124-1509D2

CLIP D18/M8

desc: ATTACHE

2шт.

38

2124-1509D3

CLIP D24/M8

desc: ATTACHE

3шт.

40

2124-1509D6

CLIP D42/M8

desc: ATTACHE

3шт.

41

2121-1305

NUT M8X1.25

desc: ECROU

2шт.
