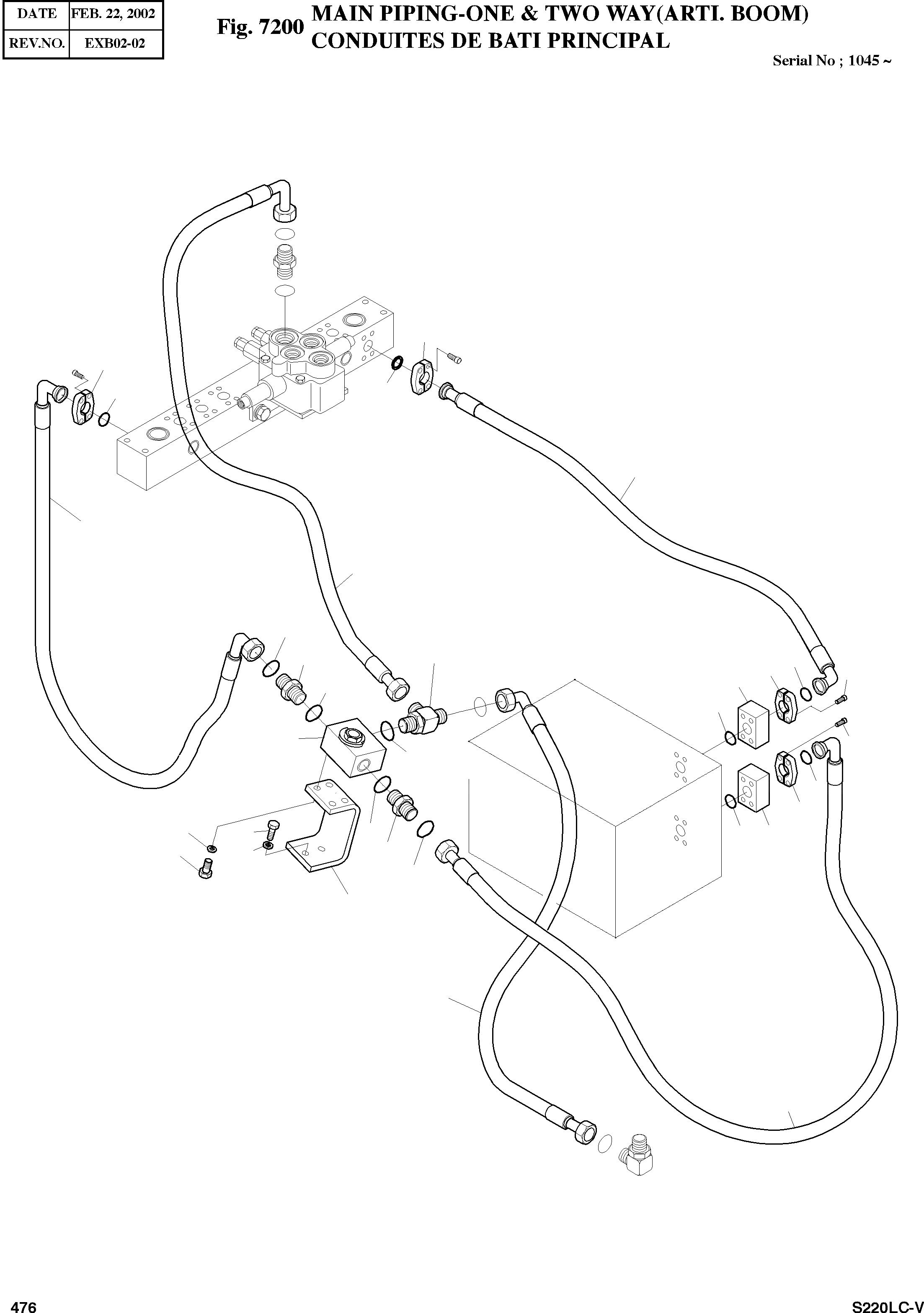

Запчасти Doosan Daewoo MAIN PIPING-ONE & TWO WAY(ARTI.BOOM) OPTION PARTS

-

400-00534

MAIN PIPING

SERIAL: 1045

-2шт.

1

2420-9633

VAVLE;SWITCH 3-PF1"

SERIAL: 1045-1300

1шт.

1

2420-9633A

VAVLE;SWITCH 3-PF1"

SERIAL: 1301

1шт.

2

2197-2673

BRACKET PL12

desc: SUPPORT

1шт.

3

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

4шт.

4

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

5

2181-4133D6

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

6

S8030161

O-RING

desc: JOINT TORIQUE

2шт.

7

S8000291

O-RING

desc: JOINT TORIQUE

3шт.

8

2181-1951D36

TEE

desc: TE

1шт.

9

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

10

2181-2614

BLOCK;SPACER

desc: BLOC

2шт.

11

2180-1026D19

O-RING

desc: JOINT TORIQUE

6шт.

12

S2213066

BOLT;SOCKET M10X1.5X70

desc: BOULON A 6 PANS CREUX

8шт.

13

2184-1036D418

HOSE PF1-650L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1200D52

HOSE PF1-1450L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1100D221

HOSE PF1-900L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1202D76

HOSE PF1-1350L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1036D418

HOSE PF1-650L

desc: TUYAU FLEXIBLE

1шт.
