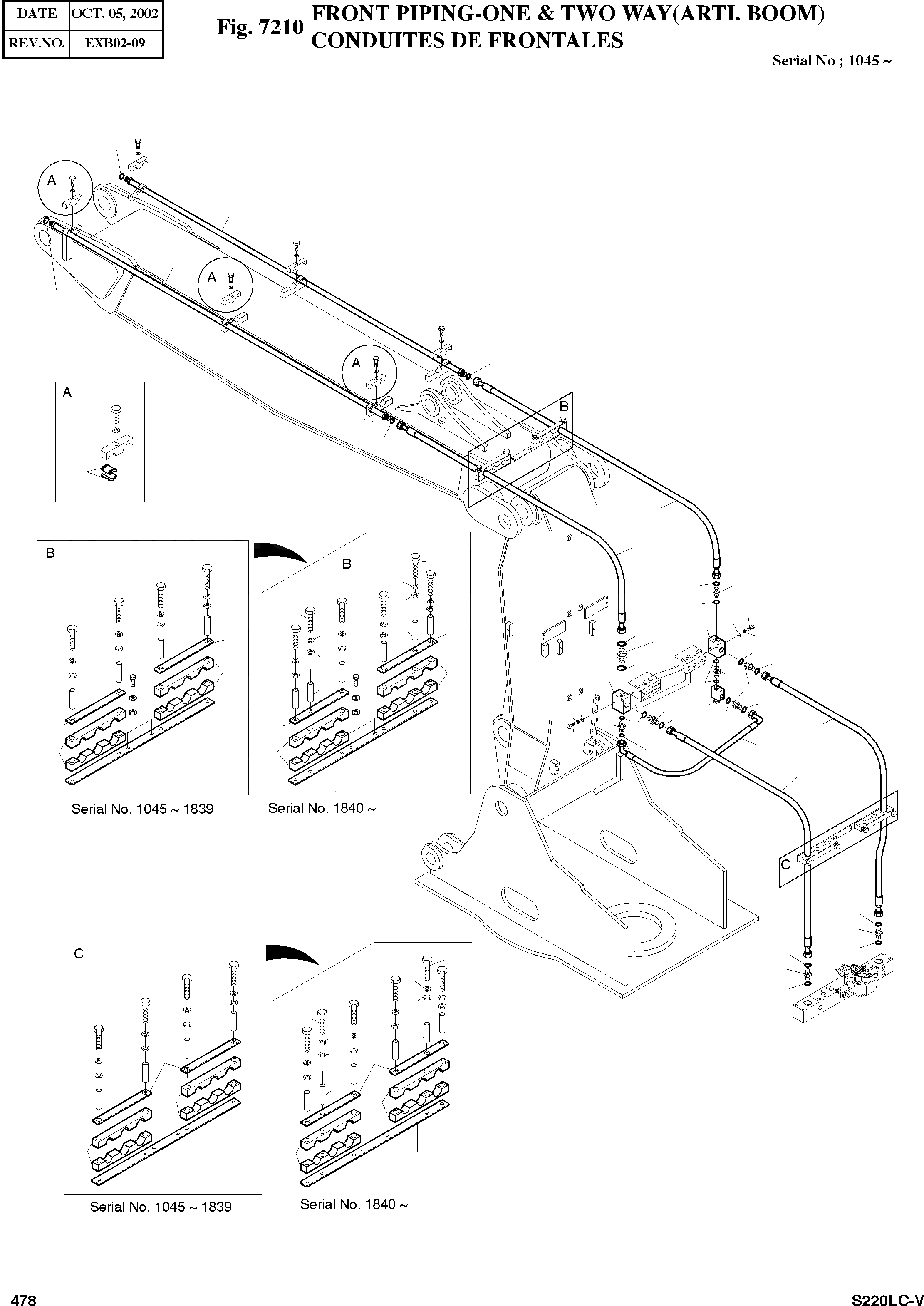

/ / / / / FRONT PIPING-ONE & TWO WAY(ARTI.BOOM)
Запчасти Doosan Daewoo FRONT PIPING-ONE & TWO WAY(ARTI.BOOM) OPTION PARTS
15
4
4
15
15
15
18
2
2
19
12
7
15
14
13
13
19
12
8
20
17
12
15
11
17
7
14
14
15
13
8
10
10
6
20
7
14
7
15
12
5
15
14
17
17
1
14
11
3
15
9
9
16
16
1
13
15
7
14
15
19
7
12
14
19
20
12
17
17
13
20
10
10
9
9
16
16
13
7
-
400-00321
FRONT PIPING
SERIAL: 1045
-2шт.
1
2184-1196D147
HOSE PF1-1950L
desc: TUYAU FLEXIBLE
2шт.
2
2184-1196D148
HOSE PF1-2150L
desc: TUYAU FLEXIBLE
2шт.
3
2184-1198D68
HOSE PF1-580L
desc: TUYAU FLEXIBLE
1шт.
4
140-00199
PIPE
desc: TUYAU
2шт.
5
2420-9627A
VALVE;RELIEF
desc: CLAPET DE DECHARGE
1шт.
6
2181-2818
ADAPTER;SP 2-PFO1"
desc: RACCORD ADAPTEUR
1шт.
7
2181-4133D6
ADAPTER PFO1"-UNF1 7/16
desc: RACCORD ADAPTATEUR
8шт.
8
423-00066
BLOCK
desc: BLOC
2шт.
9
124-00033
CLAMP;RUBBER
SERIAL: 1045-1839
4шт.
9
124-00033A
CLAMP;RUBBER
SERIAL: 1840
4шт.
10
124-00034
CLAMP;RUBBER
SERIAL: 1045-1839
4шт.
10
124-00034A
CLAMP;RUBBER
SERIAL: 1840
4шт.
11
S0558953
BOLT M10X1.5X70
desc: BOULON A 6 PANS
4шт.
12
S5102603
WASHER;SPRING M10
SERIAL: 1045-1839
4шт.
12
S5102603
WASHER;SPRING M10
SERIAL: 1840
8шт.
13
S5010613
WASHER M10
SERIAL: 1045-1839
4шт.
13
S5010613
WASHER M10
SERIAL: 1840
8шт.
14
S8000291
O-RING
desc: JOINT TORIQUE
10шт.
15
S8030161
O-RING
desc: JOINT TORIQUE
8шт.
16
621-00503
PLATE
SERIAL: 1045-1839
2шт.
16
621-00503A
PLATE
SERIAL: 1840
2шт.
17
621-00504
PLATE
SERIAL: 1045-1839
4шт.
17
621-00504A
PLATE
SERIAL: 1840
4шт.
18
2161-2251A
RUBBER
desc: CAOUTCHOUC
12шт.
19
S0559253
BOLT M10X1.5X85
SERIAL: 1840
4шт.
20
2182-1018D47
PIPE
SERIAL: 1840
4шт.
