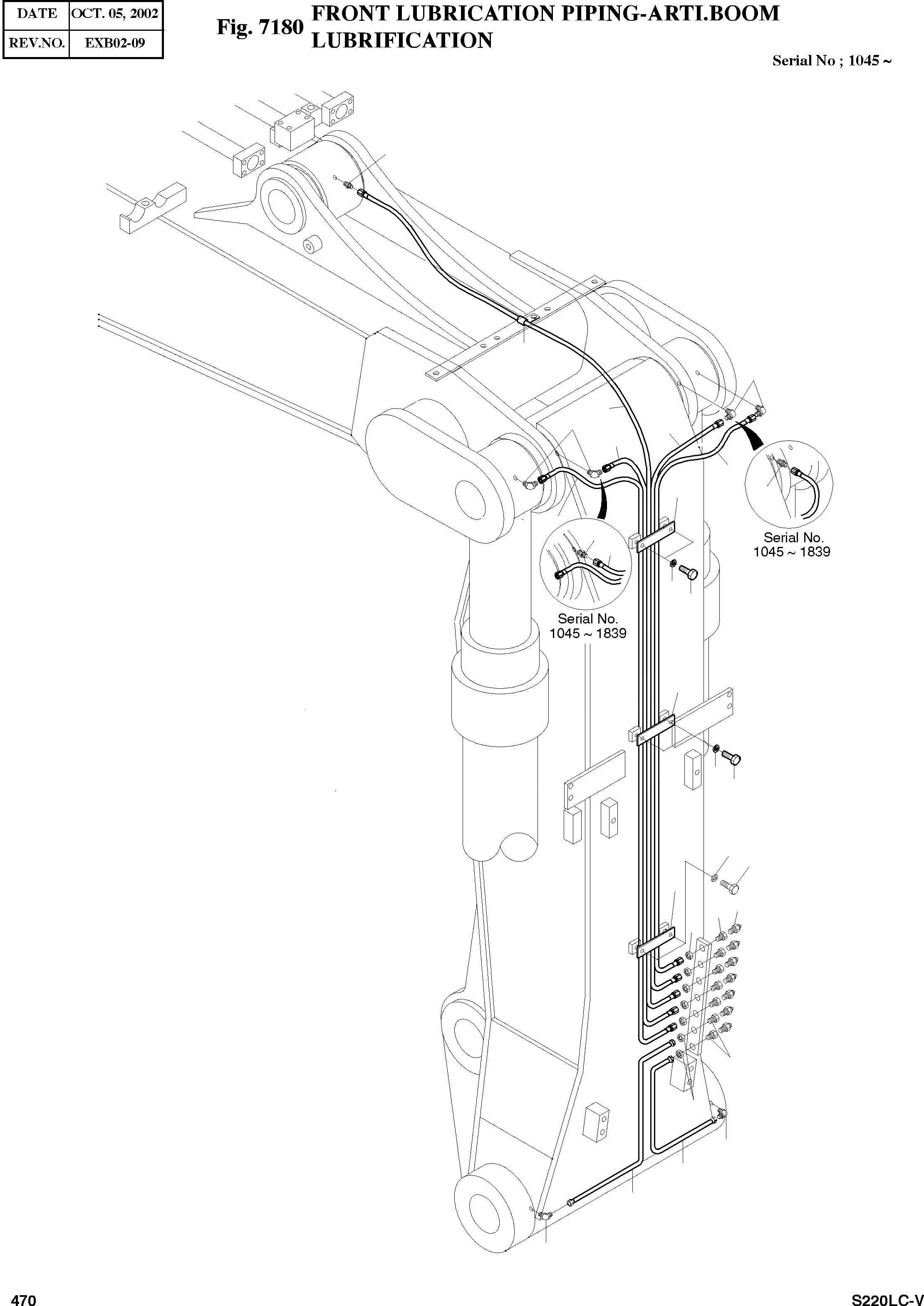

Запчасти Doosan Daewoo FRONT LUBRICATION PIPING-ARTI.BOOM OPTION PARTS

-

400-00384

FRONT PIPING

SERIAL: 1045-1839

-2шт.

-

400-00384A

FRONT PIPING

SERIAL: 1840

-2шт.

1

2181-1925

ELBOW PT1/8-M14X1.5

desc: COUDE

2шт.

2

S6710041

NIPPLE;GREASE

desc: GRAISSEUR

7шт.

3

181-00103

REDUCER PT1/8-PF1/4

desc: REDUCTEUR

5шт.

4

121-00006

NUT PF1/4

desc: ECROU

5шт.

5

2184-1045D152

HOSE PF1/4-2000L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1045D110

HOSE PF1/4-1850L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1045D131

HOSE PF1/4-2700L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1045D125

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1045D196

HOSE PF1/4-1730L

desc: TUYAU FLEXIBLE

1шт.

10

S0511553

BOLT M10X1.5X14

desc: BOULON A 6 PANS

6шт.

11

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

6шт.

12

124-00030

CLAMP;PIPE

desc: ATTACHE DE TUBE

3шт.

13

2181-1110D30

ADAPTER PF1/4-PT1/8

SERIAL: 1045-1839

3шт.

13

2181-1110D30

ADAPTER PF1/4-PT1/8

SERIAL: 1840

1шт.

14

2181-1186D12

ELBOW PF1/4-PT1/8

SERIAL: 1045-1839

2шт.

14

2181-1186D12

ELBOW PF1/4-PT1/8

SERIAL: 1840

4шт.

15

2124-1353D2

CLIP

desc: ATTACHE

1шт.

16

140-00678

PIPE

desc: TUYAU

1шт.

17

140-00679

PIPE

desc: TUYAU

1шт.

18

S4032833

NUT M14X1.5

desc: ECROU

2шт.

19

181-00525

REDUCER

desc: REDUCTEUR

2шт.
