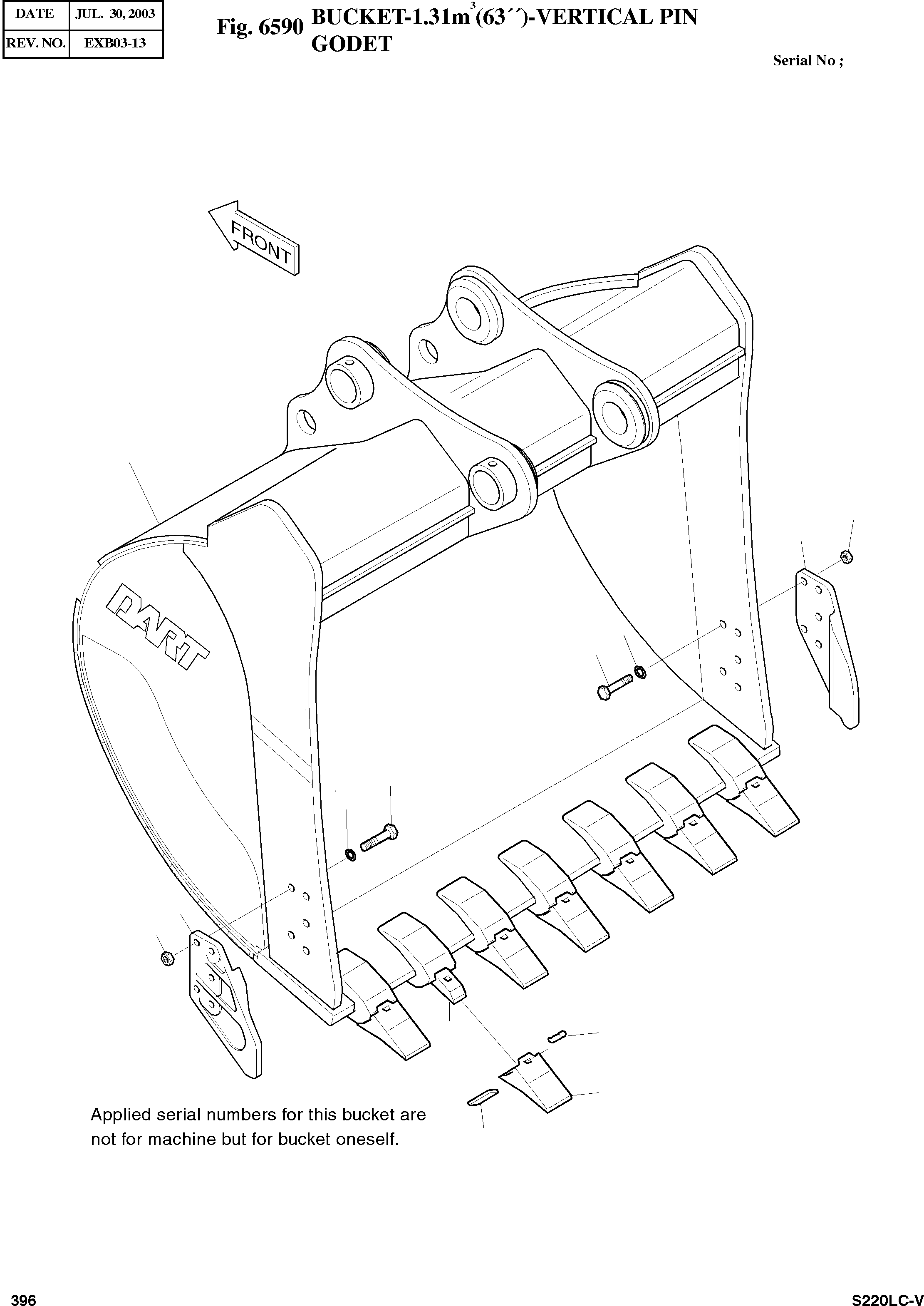

Запчасти Doosan Daewoo BUCKET-1.31§©(63")-VERTICAL PIN OPTION PARTS

-

2704-1684

BUCKET ASS'Y-1.31§©(H.D)

desc: ENSEMBLE GODET

1шт.

1

2704-1685

BUCKET SUB ASS'Y-1.31§©

SC: D

1шт.

1-1

-

BUCKET;WELD

SC: D

1шт.

1-1A

2713-6078

ADAPTER;TOOTH

desc: .. DENT DE ADAPTEUR

7шт.

1-2

2713-9056

POINT;TOOTH

SERIAL: 1-342

7шт.

1-2

2713-9061

POINT;TOOTH

SERIAL: 343

7шт.

1-3

2705-6034

PIN;LOCKING

desc: . GOUPILLE DE BLOCAGE

7шт.

1-4

2705-6033

PIN;RUBBER

desc: . GOUPILLE

7шт.

2

2713-1059

CUTTER;SIDE(R.H)

SERIAL: 1-250

1шт.

2

2713-1059A

CUTTER;SIDE(R.H)

SERIAL: 251

1шт.

3

2713-1060

CUTTER;SIDE(L.H)

SERIAL: 1-250

1шт.

3

2713-1060A

CUTTER;SIDE(L.H)

SERIAL: 251

1шт.

4

S0570261

BOLT M20X2.5X70

SERIAL: 1-250

10шт.

4

S0574861

BOLT M24X3.0X75

SERIAL: 251

10шт.

5

S4013133

NUT M20X2.5

SERIAL: 1-250

10шт.

5

S4013333

NUT M24X3.0

SERIAL: 251

10шт.

6

2114-9012

WASHER;HARDEN

SERIAL: 1-250

10шт.

6

2114-1831

WASHER;HARDEN

SERIAL: 251

10шт.
