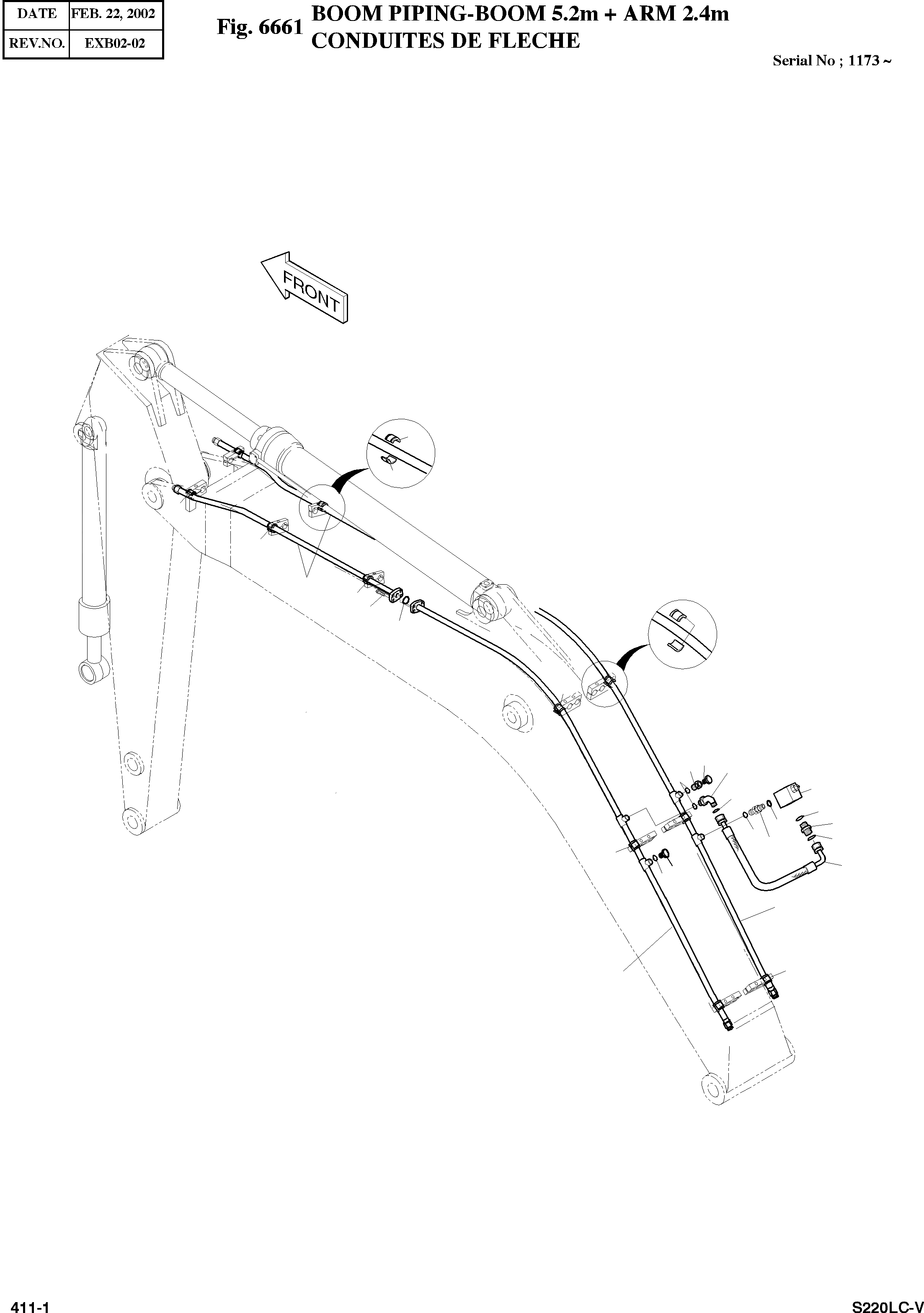

Запчасти Doosan Daewoo BOOM PIPING-BOOM 5.2M + ARM 2.4M OPTION PARTS

-

400-00034

BOOM PIPING-ONE WAY

SERIAL: 1173

-2шт.

1

140-00706

PIPE;OPTION

desc: TUYAU

2шт.

3

140-00707

PIPE;OPTION

desc: CONDUITE

2шт.

5

S8000291

O-RING

desc: JOINT TORIQUE

6шт.

6

S8030161

O-RING

desc: JOINT TORIQUE

2шт.

11

2161-2251A

RUBBER

desc: CAOUTCHOUC

24шт.

12

2181-2815D1

ELBOW

desc: COUDE

1шт.

13

2181-4133D6

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

14

2420-9627

VALVE;RELIEF

SERIAL: 1173-1300

1шт.

14

2420-9627A

VALVE;RELIEF

SERIAL: 1301

1шт.

15

2181-2818

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

16

2181-1950D9

PLUG

desc: BOUCHON

1шт.

17

2184-1197D87

HOSE PF1-670L

desc: TUYAU FLEXIBLE

1шт.

18

2181-2201D7

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

19

2181-2047

PLUG

desc: BOUCHON

1шт.

20

2180-1026D19

O-RING

desc: JOINT TORIQUE

2шт.

21

S2212461

BOLT;SOCKET M10X1.5X40

SERIAL: 1173-1345

8шт.

21

S2212466

BOLT;SOCKET M10X1.5X40

SERIAL: 1346

8шт.
