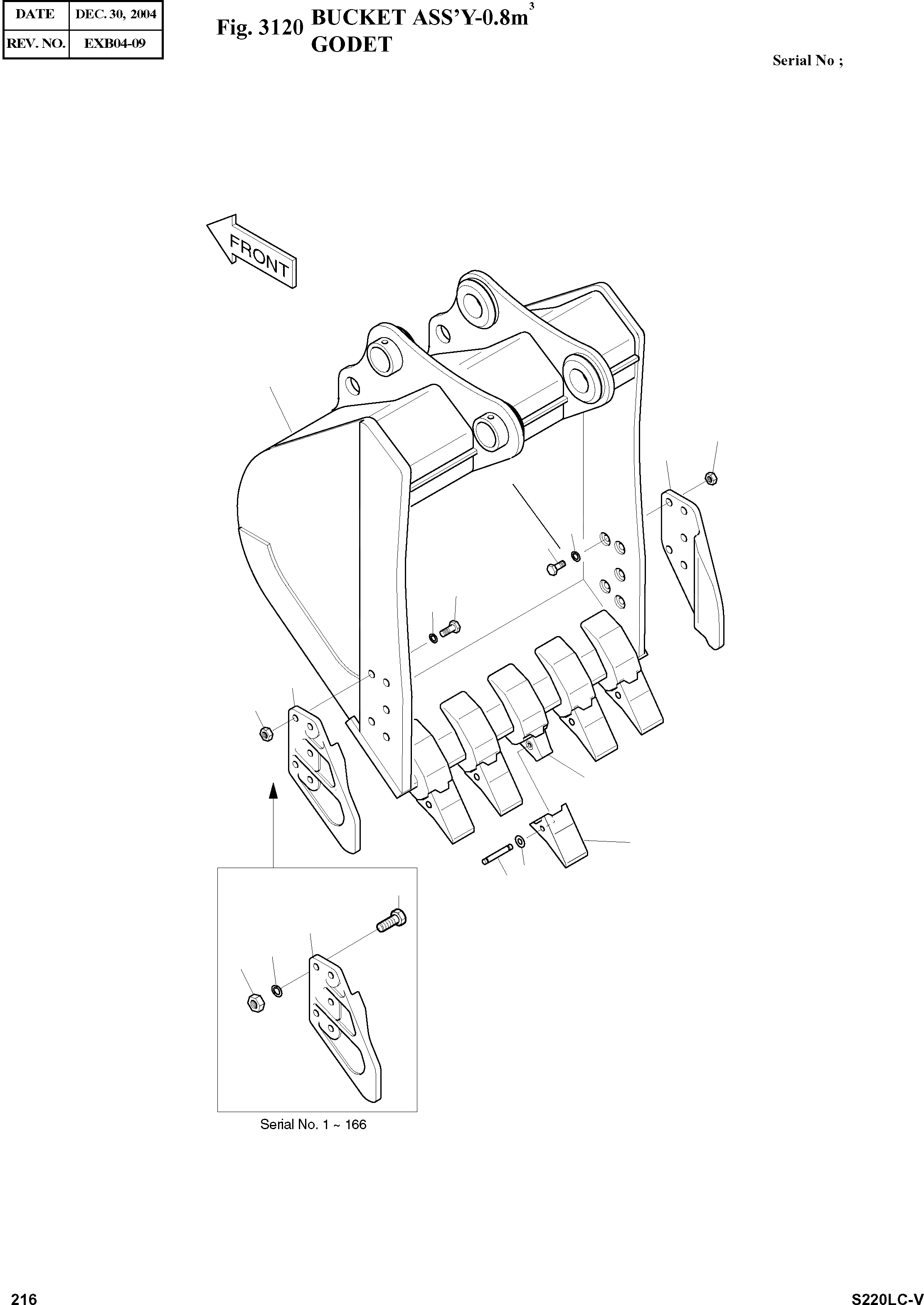

Запчасти Doosan Daewoo BUCKET ASSY-0.8§© FRONT PARTS

-

2704-1365A

BUCKET ASS'Y-0.8§©

SERIAL: 1-47

1шт.

-

2704-1365B

BUCKET ASS'Y-0.8§©

SERIAL: 48-166

1шт.

-

2704-1365C

BUCKET ASS'Y-0.8§©

SERIAL: 167-296

1шт.

-

2704-1365E

BUCKET ASS'Y-0.8§©

SERIAL: 297-1070

1шт.

-

2704-1365G

BUCKET ASS'Y-0.8§©

SERIAL: 1071-2537

1шт.

-

2704-1365H

BUCKET ASS'Y-0.8§©

SERIAL: 2538

1шт.

1

2704-1366A

BUCKET-0.8§©

SERIAL: 1-47

1шт.

1

2704-1366B

BUCKET-0.8§©

SERIAL: 48-296

1шт.

1

2704-1366C

BUCKET-0.8§©

SERIAL: 297-1070

1шт.

1

2704-1366E

BUCKET-0.8§©

SERIAL: 1071

1шт.

1A

2713-1218

ADAPTER;TOOTH

desc: . RACCORD

5шт.

2

2713-1217

POINT;TOOTH

SERIAL: 1-2537

5шт.

2

K1000344

POINT;TOOTH

SERIAL: 2538

5шт.

3

2705-1020

PIN;LOCKING

desc: BROCHE DE BLOCAGE

5шт.

4

2114-1848A

WASHER;LOCKING

desc: RONDELLE D'ARRET

5шт.

5

2713-1059

CUTTER;SIDE(RH)

SERIAL: 1-1070

1шт.

5

2713-1059A

CUTTER;SIDE(RH)

SERIAL: 1071

1шт.

6

2713-1060

CUTTER;SIDE(LH)

SERIAL: 1-1070

1шт.

6

2713-1060A

CUTTER;SIDE(LH)

SERIAL: 1071

1шт.

7

S0570161

BOLT M20X2.5X65

SERIAL: 1-1070

10шт.

7

S0574761

BOLT M24X3.0X70

SERIAL: 1071

10шт.

8

S4013133

NUT M20X2.5

SERIAL: 1-1070

10шт.

8

S4013333

NUT M24X3.0

SERIAL: 1071

10шт.

9

S5103101

WASHER;SPRING

SERIAL: 1-166

10шт.

9

2114-9012

WASHER;HARDEN

SERIAL: 167-1070

10шт.

9

2114-1831

WASHER;HARDEN

SERIAL: 1071

10шт.
