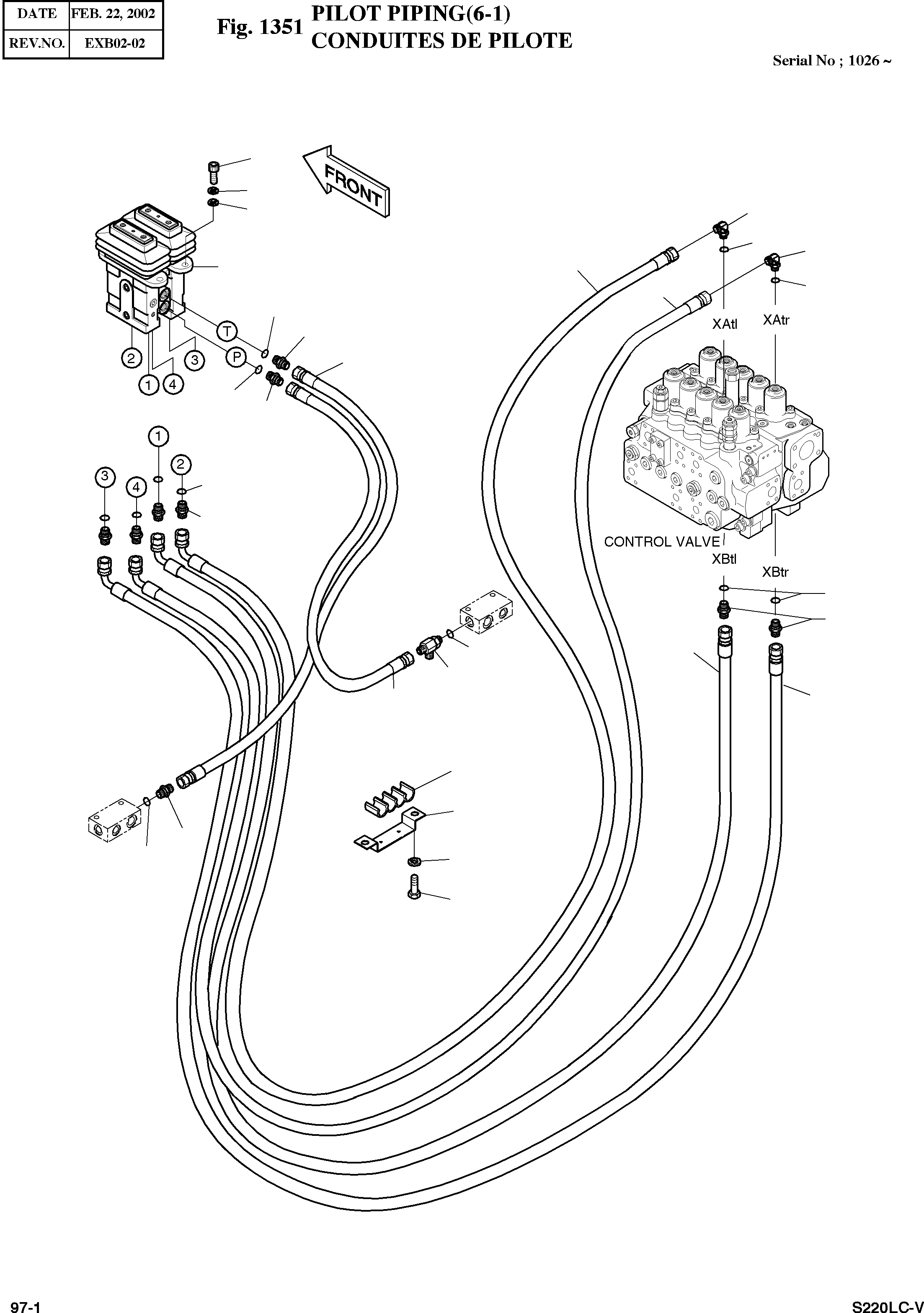

Запчасти Doosan Daewoo PILOT PIPING(6-1) BODY PARTS

-

2400-1787C

PILOT PIPING

SERIAL: 1026

-2шт.

5

420-00030

VALVE;PEDAL

desc: VANNE

1шт.

18

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

1шт.

19

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

1шт.

20

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

2шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

6шт.

26

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

27

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

28

2181-1126D7

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

30

2181-1126D36

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

31

2181-1126D89

ADAPTER

desc: RACCORD ADAPTATEUR

4шт.

34

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

2шт.

40

2181-1951D7

TEE PFO3/8-2PF1/4

desc: TE

1шт.

45

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

63

2184-1045D174

HOSE PF1/4-330L

desc: TUYAU FLEXIBLE

1шт.

64

2184-1045D98

HOSE PF1/4-380L

desc: TUYAU FLEXIBLE

1шт.

65

2184-1046D229

HOSE PF3/8-3400L

desc: TUYAU FLEXIBLE

1шт.

66

2184-1061D348

HOSE PF3/8-3300L

desc: TUYAU FLEXIBLE

1шт.

67

2184-1046D265

HOSE PF3/8-3550L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1061D349

HOSE PF3/8-3400L

desc: TUYAU FLEXIBLE

1шт.

125

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1026-1345

4шт.

125

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1346

4шт.

126

S5110601

WASHER;SPRING

SERIAL: 1026-1345

4шт.

126

S5110603

WASHER;SPRING

SERIAL: 1346

4шт.

140

S5010613

WASHER;PLAIN

desc: RONDELLE

4шт.
