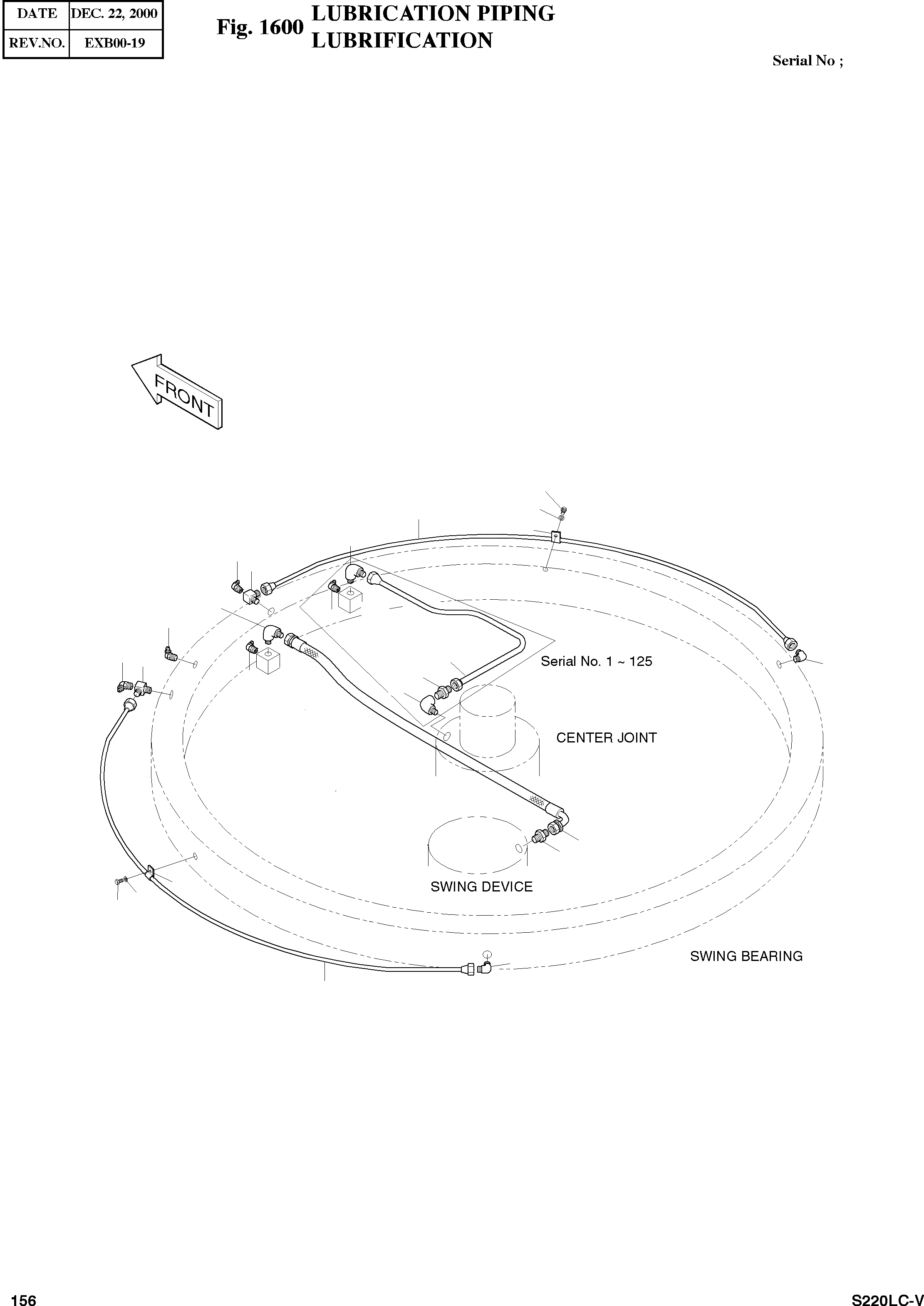

Запчасти Doosan Daewoo LUBRICATION PIPING BODY PARTS

-

2400-1779B

LUBRICATION PIPING

SC: D

-2шт.

1

2140-1253A

PIPE

SERIAL: 1-125

1шт.

2

2140-1252

PIPE

desc: TUYAU

1шт.

3

2140-1252

PIPE

desc: TUYAU

1шт.

4

2181-1925

ELBOW M14X1.5-PT1/8

SERIAL: 1-125

3шт.

4

2181-1925

ELBOW M14X1.5-PT1/8

SERIAL: 126

2шт.

5

2181-1544

ADAPTER M14X1.5-PT1/8

SERIAL: 1-125

1шт.

6

S6710042

NIPPLE;GREASE PT1/8

SERIAL: 1-125

5шт.

6

S6710042

NIPPLE;GREASE PT1/8

SERIAL: 126

4шт.

7

2124-1027D2

CLIP;PIPE

desc: ATTACHE

2шт.

8

S0504353

BOLT M6X1.0X10

desc: BOULON A 6 PANS

2шт.

9

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

10

2181-1157A

ELBOW PT1/8-PT1/8

desc: COUDE

1шт.

11

2184-1046D76

HOSE

desc: TUYAU FLEXIBLE

1шт.

12

2181-1110D1

ADAPTER PF1/4-PT1/4

desc: RACCORD ADAPTATEUR

1шт.

13

2181-1111D11

ELBOW PF1/4-PT1/8

SERIAL: 1-1212

1шт.

13

2181-1186D12

ELBOW PF1/4-PT1/8

SERIAL: 1213

1шт.

14

2181-2527

TEE 3-PT1/8

desc: TE

2шт.
